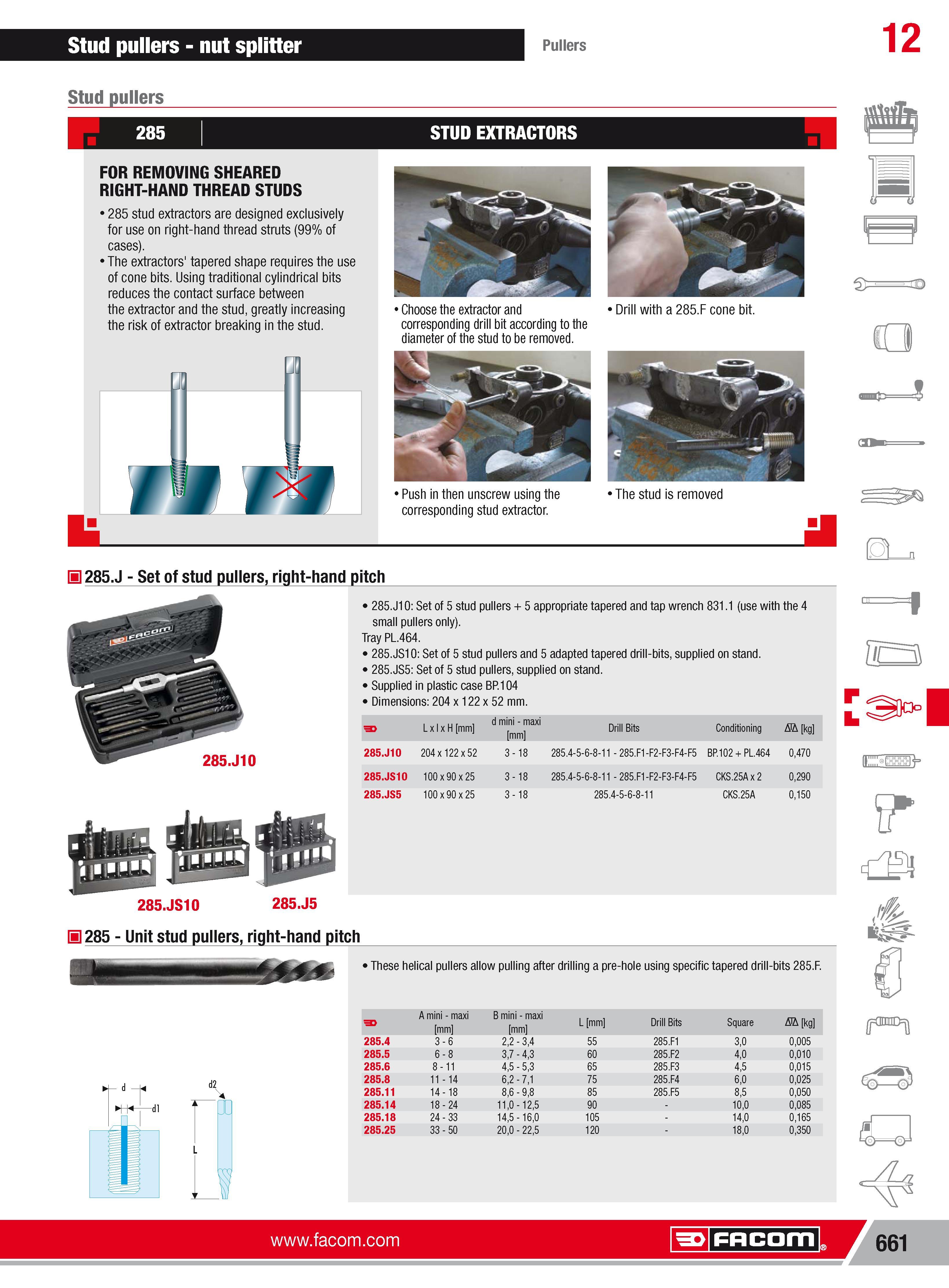

Stud pullers nut splitter Pullers 12 Stud pullers STUD EXTRACTORS b FOR REMOVING SHEARED RIGHT-HAND THREAD STUDS 285 stud extractors are designed exclusively for use on right-hand thread struts (99% of cases). The extractors' tapered shape requires the use of cone bits. Using traditional cylindrical bits reduces the contact surface between the extractor and the stud greatly increasing the risk of extractor breaking in the stud. Choose the extractor and corresponding drill bit according to the diameter of the stud to be removed. Drill with a 285.F cone bit. Push in then unscrew using the corresponding stud extractor. The stud is removed 285.J Set of stud pullers right-hand pitch 285.J10 Set of 5 stud pullers + 5 appropriate tapered and tap wrench 831.1 (use with the 4 small pullers only). Tray PL.464. 285.JS10 Set of 5 stud pullers and 5 adapted tapered drill-bits supplied on stand. 285.JS5 Set of 5 stud pullers supplied on stand. Supplied in plastic case BP.104 Dimensions 204 x 122x 52 mm. 285.J10 LxIxH mm d mini maxi mm Drill Bits Conditioning M kg 285.J10 204x 122x52 3-18 285.4-5-6-8-11 285.F1-F2-F3-F4-F5 BP.102 + PL.464 0470 285.JS10 100x90x25 3-18 285.4-5-6-8-11 285.F1-F2-F3-F4-F5 CKS.25Ax2 0290 285.JS5 100x90x25 3-18 285.4-5-6-8-11 CKS.25A 0150 285.JS10 285.J5 285 Unit stud pullers right-hand pitch These helical pullers allow pulling after drilling a pre-hole using specific tapered drill-bits 285.F. 4 cr- -Hr. d2 A mini maxi mm B mini maxi mm L mm Drill Bits Square M kg 285.4 3 6 22 34 55 285.F1 30 0005 285.5 6-8 37 43 60 285.F2 40 0010 285.6 8-11 45 53 65 285.F3 45 0015 285.8 11-14 62 71 75 285.F4 60 0025 285.11 14-18 86 98 85 285.F5 85 0050 285.14 18-24 110-125 90 100 0085 285.18 24 33 145-160 105 140 0165 285.25 33-50 200 225 120 180 0350 Facom 661 Facom
