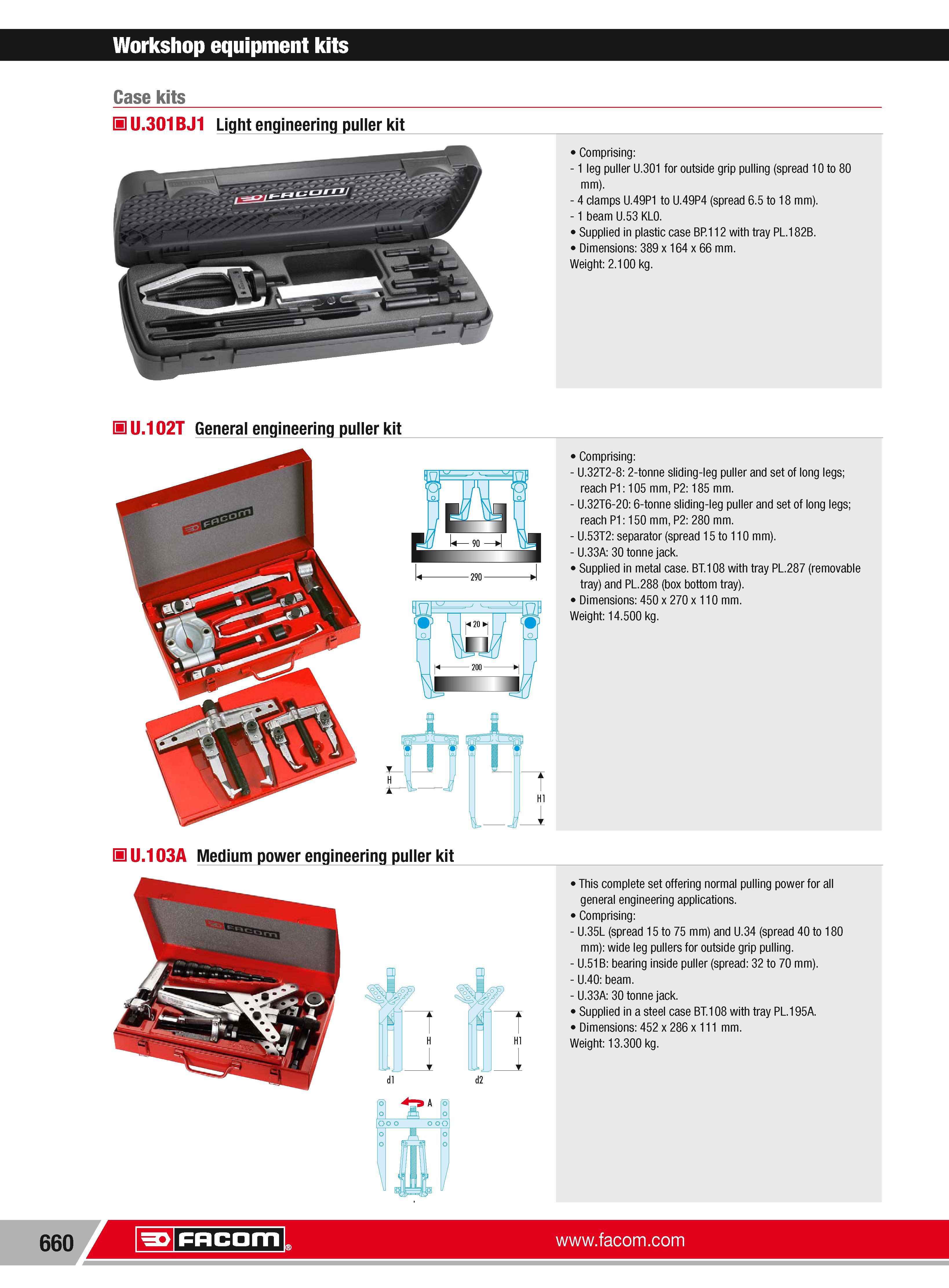

Workshop equipment kits Case kits H U.301BJ1 Light engineering puller kit Comprising -1 leg puller U.301 for outside grip pulling (spread 10to80 mm). 4 clamps U.49P1 to U.49P4 (spread 6.5 to 18 mm). -1 beam U.53 KLO. Supplied in plastic case BP.112 with tray PL.182B. Dimensions 389 x164x66 mm. Weight 2.100 kg. U.102T General engineering puller kit Comprising U.32T2-8:2-tonne sliding-leg puller and set of long legs; reach P1:105 mm P2:185 mm. U.32T6-20:6-tonne sliding-leg puller and set of long legs; reach P1:150 mm P2 280 mm. U.53T2 separator (spread 15to110 mm). U.33A 30 tonne jack. Supplied in metal case. BT. 108 with tray PL.287 (removable tray) and PL.288 (box bottom tray). Dimensions 450 x270x 110 mm. Weight 14.500 kg. U.103A Medium power engineering puller kit This complete set offering normal pulling power for all general engineering applications. Comprising U.35L (spread 15to75 mm) and U.34 (spread 40 to 180 mm) wide leg pullers for outside grip pulling. U.51B bearing inside puller (spread 32 to 70 mm). U.40 beam. U.33A 30 tonne jack. Supplied in a steel case BT. 108 with tray PL.195A. Dimensions 452 x286x 111 mm. Weight 13.300 kg. 660 Facom
