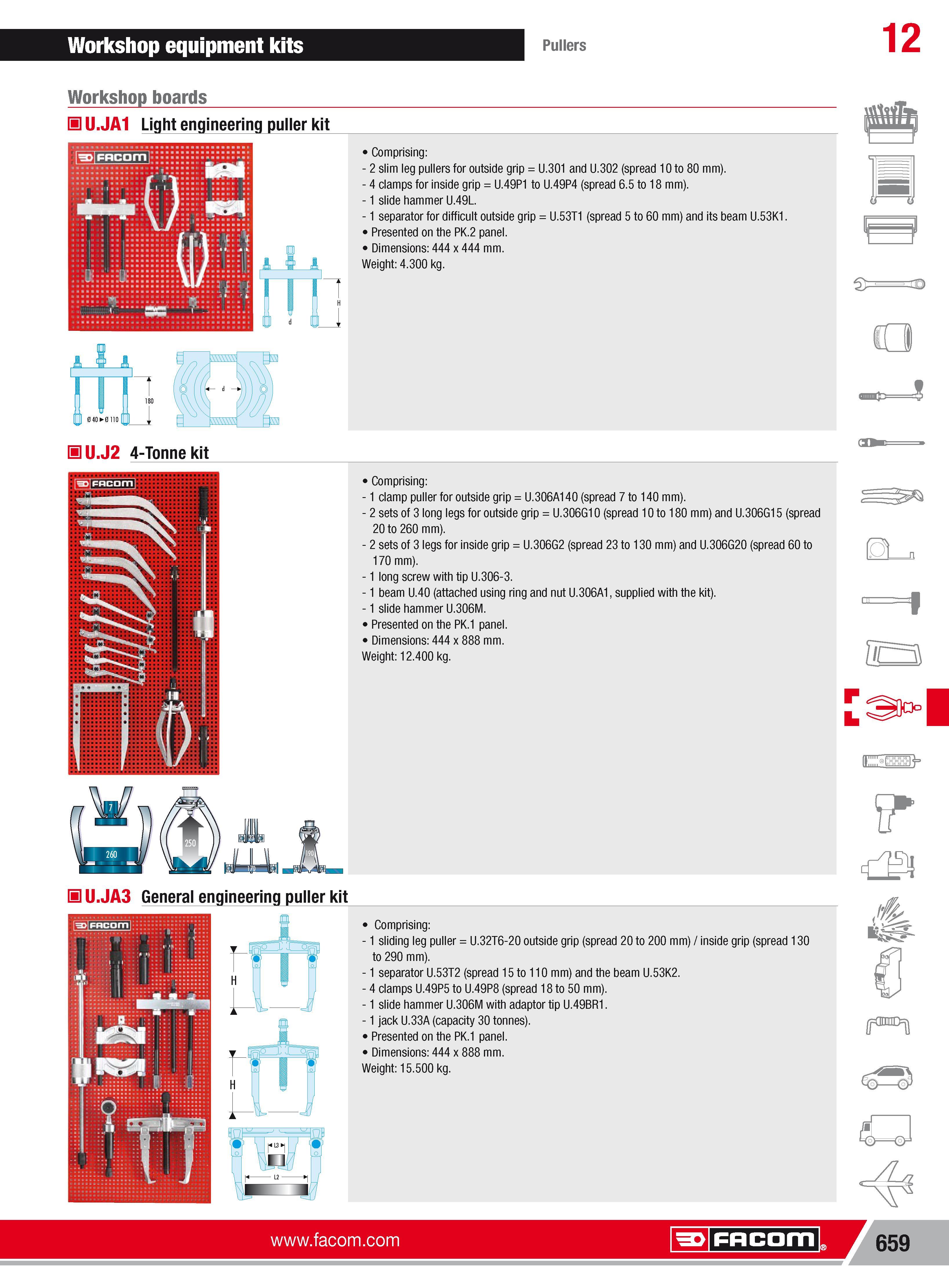

685 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.659

Каталог FACOM 2013 Инструмент Оборудование Стр. 659 0685 ENG Lab2u

Workshop equipment kits Pullers 12 Workshop boards H U.JA1 Light engineering puller kit 18 i HU.J2 4-Tonne kit Comprising 2 slim leg pullers for outside grip U.301 and U.302 (spread 10to80 mm). 4 clamps for inside grip U.49P1 to U.49P4 (spread 6.5 to 18 mm). -1 slide hammer U.49L. -1 separator for difficult outside grip U.53T1 (spread 5 to 60 mm) and its beam U.53K1. Presented on the PK.2 panel. Dimensions 444 x 444 mm. Weight 4.300 kg. Comprising -1 clamp puller for outside grip U.306A140 (spread 7to140 mm). 2 sets of 3 long legs for outside grip U.306G10 (spread 10 to 180 mm) and U.306G15 (spread 20 to 260 mm). 2 sets of 3 legs for inside grip U.306G2 (spread 23 to 130 mm) and U.306G20 (spread 60 to 170 mm). -1 long screw with tip U.306-3. -1 beam U.40 (attached using ring and nut U.306A1 supplied with the kit). -1 slide hammer U.306M. Presented on the PK.1 panel. Dimensions 444 x 888 mm. Weight 12.400 kg. H U.JA3 General engineering puller kit Comprising -1 sliding leg puller U.32T6-20 outside grip (spread 20 to 200 mm) inside grip (spread 130 to 290 mm). -1 separator U.53T2 (spread 15to110 mm) and the beam U.53K2. 4 clamps U.49P5 to U.49P8 (spread 18to50 mm). -1 slide hammer U.306M with adaptor tip U.49BR1. -1 jack U.33A (capacity 30 tonnes). Presented on the PK.1 panel. Dimensions 444 x 888 mm. Weight 15.500 kg. 4 cr- -Hr. Facom 659
