678 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.652

Каталог FACOM 2013 Инструмент Оборудование Стр. 652 0678 ENG Lab2u

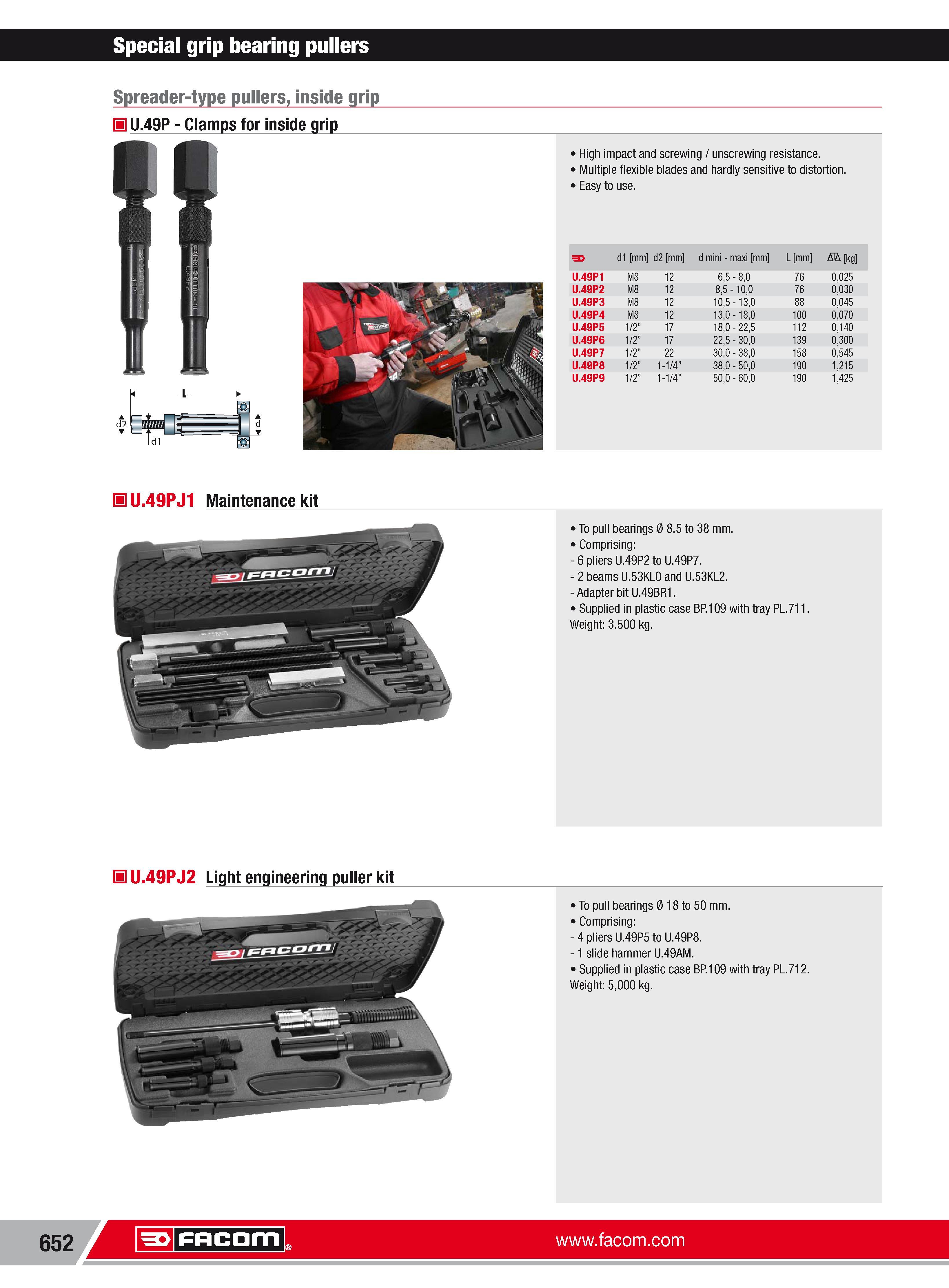

Special grip bearing pullers Spreader-type pullers inside grip H U.49P Clamps for inside grip d2 dl High impact and screwing unscrewing resistance. Multiple flexible blades and hardly sensitive to distortion. Easy to use. d1 mm d2 mm d mini maxi mm L mm Aft kg U.49P1 M8 12 65 80 76 0025 U.49P2 M8 12 85-100 76 0030 U.49P3 M8 12 105-130 88 0045 U.49P4 M8 12 130-180 100 0070 U.49P5 1 2 17 180-225 112 0140 U.49P6 1 2 17 225 -300 139 0300 U.49P7 1 2 22 300 380 158 0545 U.49P8 1 2 1-1 4 380 500 190 1215 U.49P9 1 2 1-1 4 500 600 190 1425 H U.49PJ1 Maintenance kit To pull bearings 0 8.5 to 38 mm. Comprising 6 pliers U.49P2 to U.49P7. 2 beams U.53KL0 and U.53KL2. Adapter bit U.49BR1. Supplied in plastic case BP.109 with tray PL.711. Weight 3.500 kg. H U.49PJ2 Light engineering puller kit To pull bearings 018to5O mm. Comprising 4 pliers U.49P5 to U.49P8. -1 slide hammer U.49AM. Supplied in plastic case BP.109 with tray PL.712. Weight 5000 kg. 652 Facom
