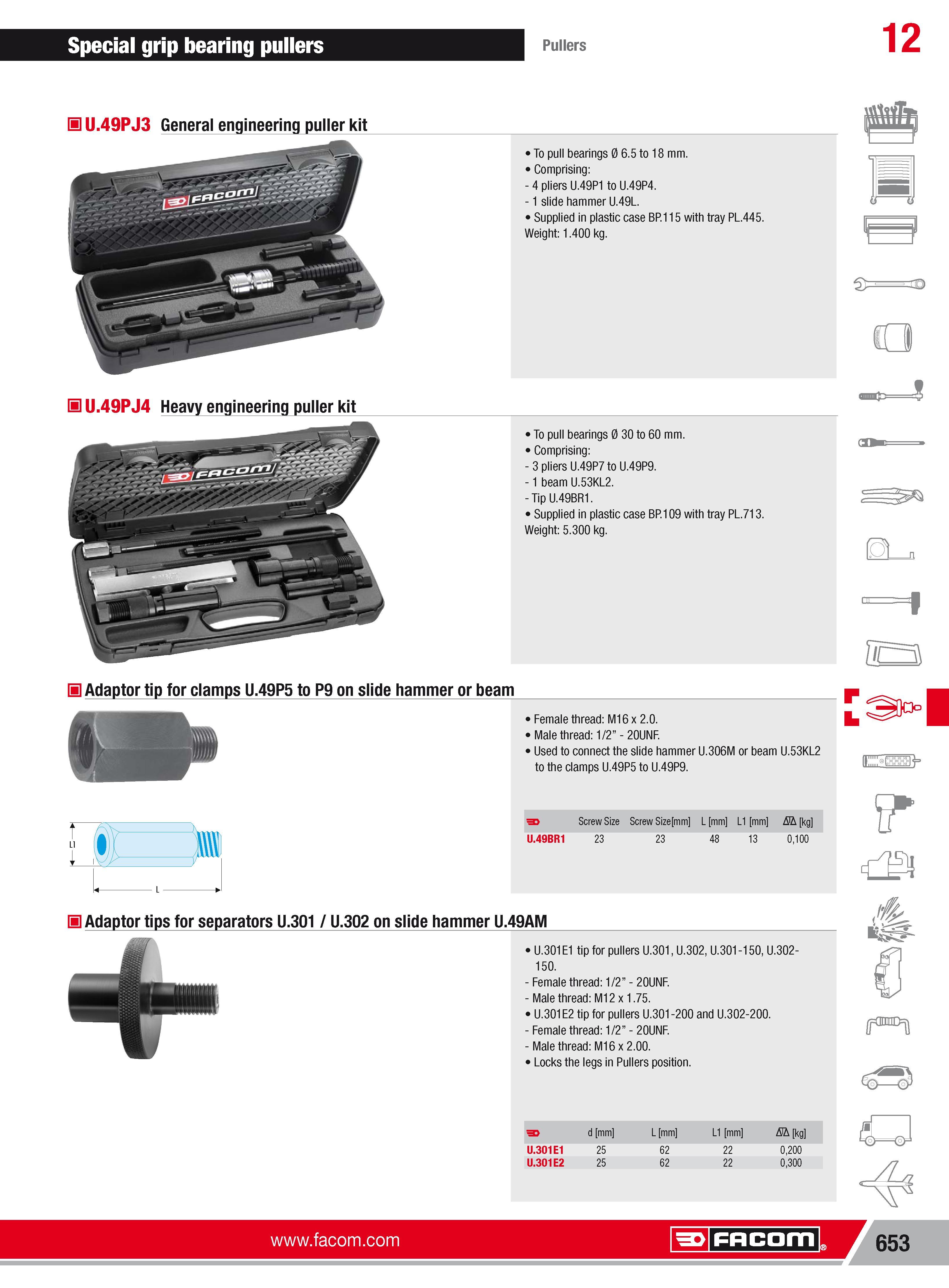

Special grip bearing pullers Pullers 12 H U.49PJ3 General engineering puller kit To pull bearings 0 6.5 to 18 mm. Comprising 4 pliers U.49P1 to U.49P4. -1 slide hammer U.49L. Supplied in plastic case BP.115 with tray PL.445. Weight 1.400 kg. H U.49PJ4 Heavy engineering puller kit To pull bearings 0 30 to 60 mm. Comprising 3 pliers U.49P7 to U.49P9. -1 beam U.53KL2. -Tip U.49BR1. Supplied in plastic case BP.109 with tray PL.713. Weight 5.300 kg. H Adaptor tip for clamps U.49P5 to P9 on slide hammer or beam Adaptor tips for separators U.301 U.302 on slide hammer U.49AM U.301E1 tip for pullers U.301 U.302 U.301-150 U.302-150. Female thread 1 2 20UNF. Malethread M12x1.75. U.301E2 tip for pullers U.301-200 and U.302-200. Female thread 1 2 20UNF. Malethread M16x2.00. Locks the legs in Pullers position. 4 c cr- -Hr. Female thread M16x2.0. Malethread 1 2-20UNF. Used to connect the slide hammer U.306M or beam U.53KL2 to the clamps U.49P5 to U.49P9. Screw Size Screw Size mm L mm L1 mm Nh kg U.49BR1 23 23 48 13 0100 d mm U.301E1 25 U.301E2 25 Facom L mm 62 62 L1 mm 22 22 Nh kg 0200 0300 Facom 653
