677 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.651

Каталог FACOM 2013 Инструмент Оборудование Стр. 651 0677 ENG Lab2u

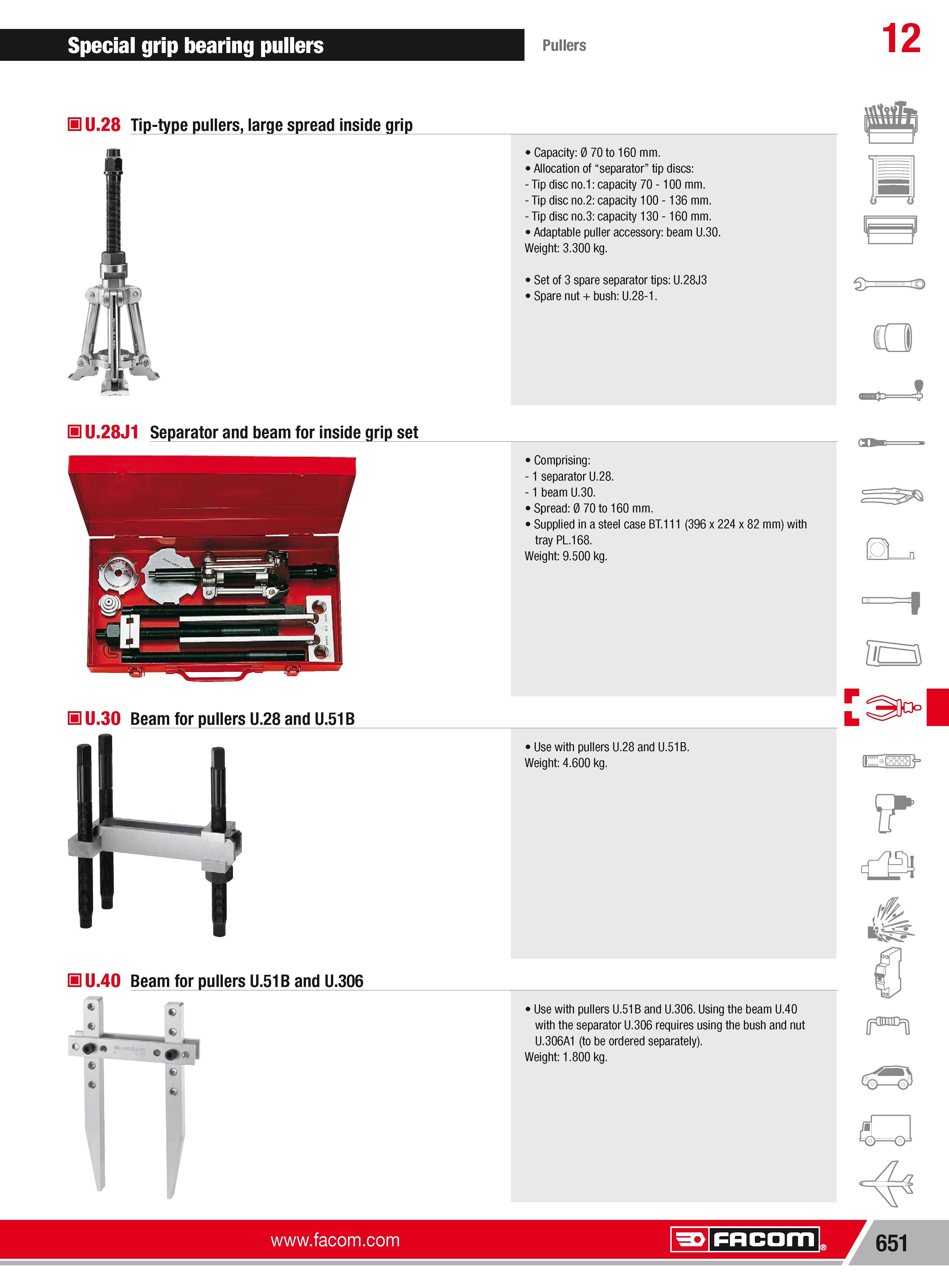

Special grip bearing pullers Pullers 12 H U.28 Tip-type pullers large spread inside grip Capacity 0 7Oto16Omm. Allocation of separator tip discs Tip disc no.1 capacity 70- 100 mm. Tip disc no.2 capacity 100- 136 mm. Tip disc no.3 capacity 130- 160 mm. Adaptable puller accessory beam U.30. Weight 3.300 kg. Set of 3 spare separator tips U.28J3 Spare nut + bush U.28-1. 4 H U.28J1 Separator and beam for inside grip set H U.30 Beam for pullers U.28 and U.51B Comprising -1 separator U.28. -1 beam U.30. Spread 0 70to 160 mm. Supplied in a steel case BT. 111 (396 x 224 x 82 mm) with tray PL.168. Weight 9.500 kg. Use with pullers U.28 and U.51B. Weight 4.600 kg. H U.40 Beam for pullers U.51B and U.306 Use with pullers U.51B and U.306. Using the beam U.40 with the separator U.306 requires using the bush and nut U.306A1 (to be ordered separately). Weight 1.800 kg. Facom 651
