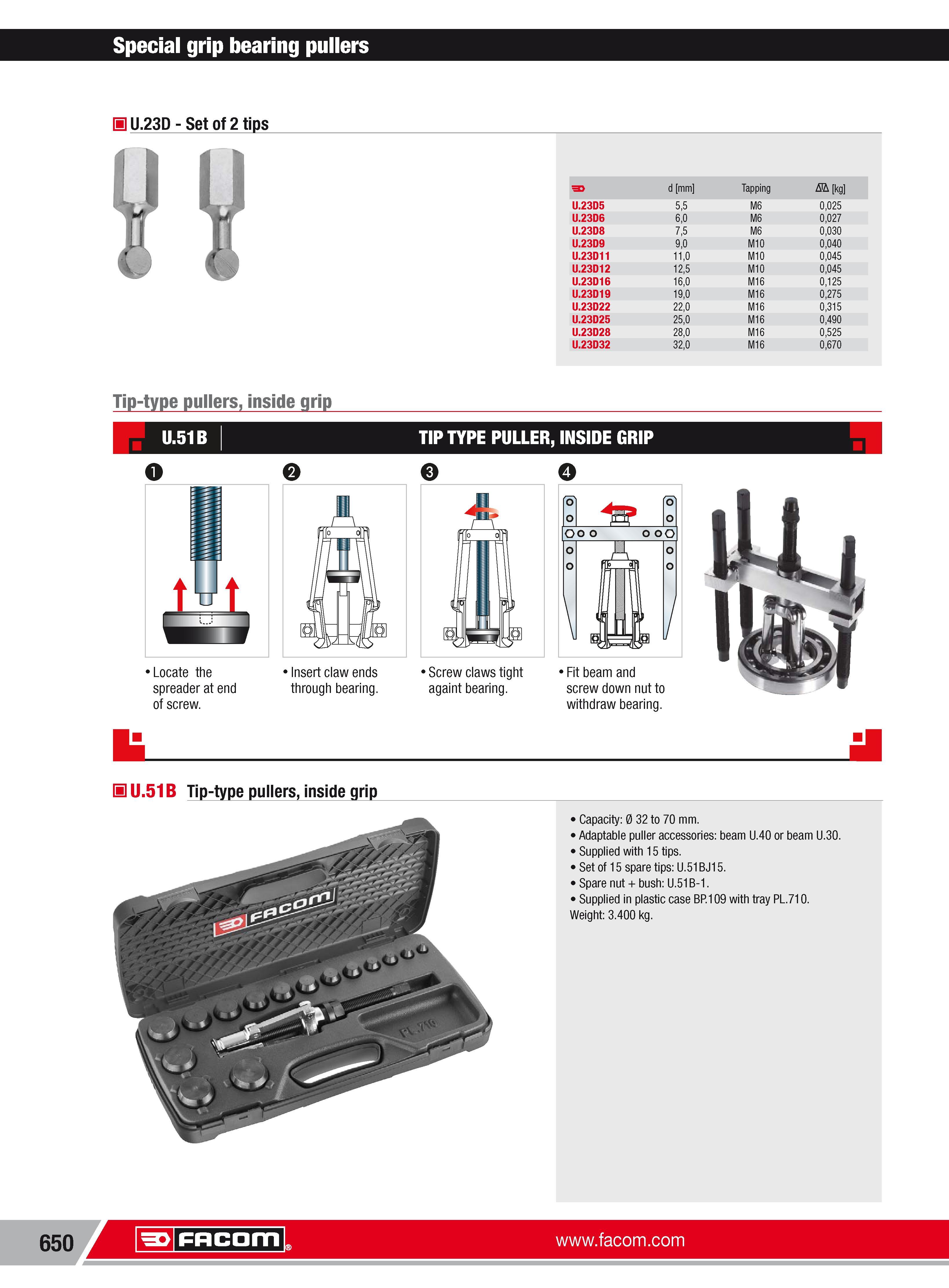

Special grip bearing pullers H U.23D Set of 2 tips d mm Tapping Aft kg U.23D5 55 M6 0025 U.23D6 60 M6 0027 U.23D8 75 M6 0030 U.23D9 90 M10 0040 U.23D11 110 M10 0045 U.23D12 125 M10 0045 U.23D16 160 M16 0125 U.23D19 190 M16 0275 U.23D22 220 M16 0315 U.23D25 250 M16 0490 U.23D28 280 M16 0525 U.23D32 320 M16 0670 Tip-type pullers inside grip TIP TYPE PULLER INSIDE GRIP e Locate the spreader at end of screw. Insertclawends through bearing. 1 Screw claws tight againt bearing. o Fit beam and screw down nut to withdraw bearing. H U.51B Tip-type pullers inside grip Capacity 0 32 to 70 mm. Adaptable puller accessories beam U.40 or beam U.30. Supplied with 15 tips. Set of 15 spare tips U.51BJ15. Spare nut + bush U.51B-1. Supplied in plastic case BP.109 with tray PL.710. Weight 3.400 kg. 650 Facom
