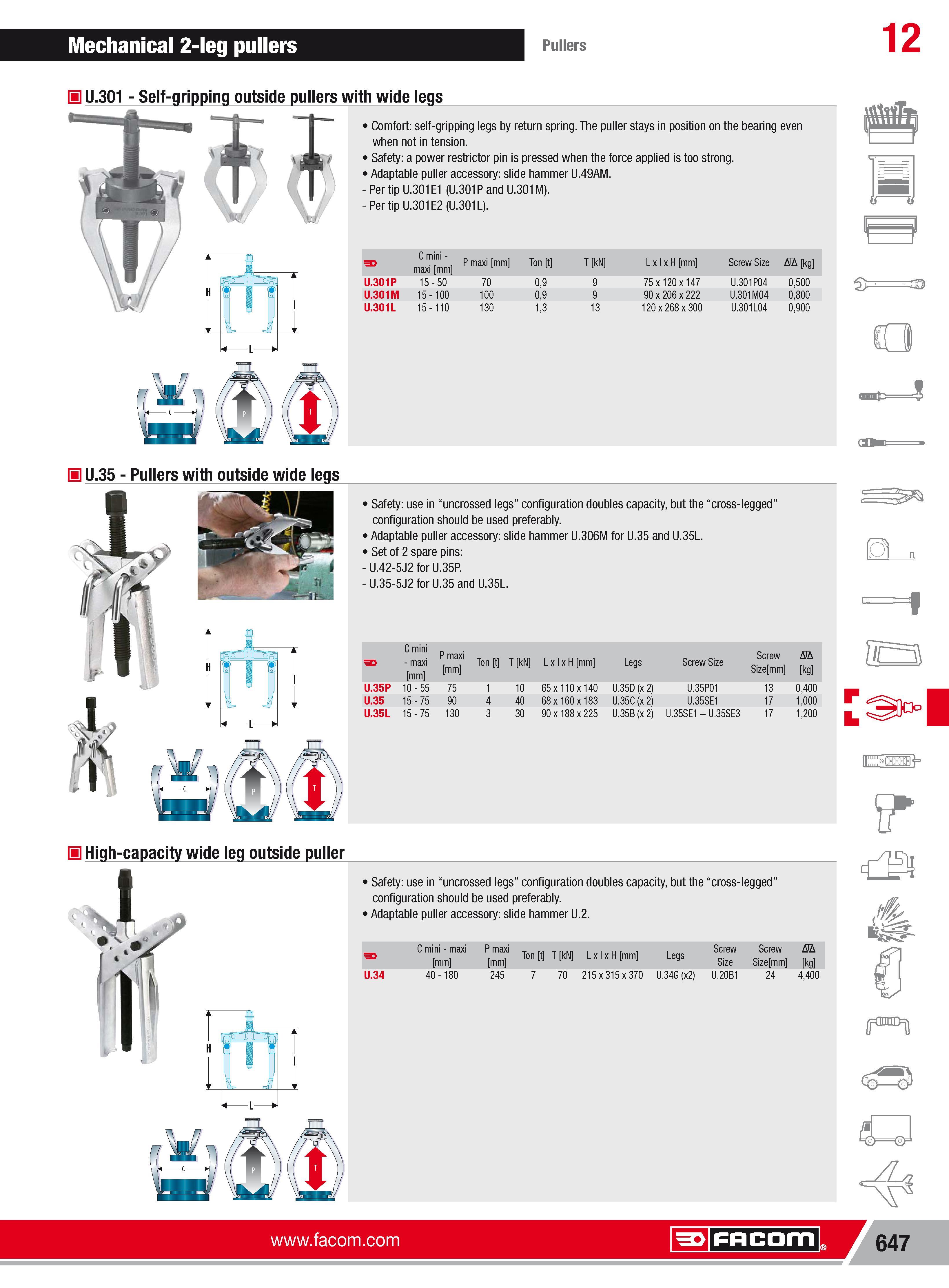

Mechanical 2-leg pullers Pullers 12 H U.301 Self-gripping outside pullers with wide legs Comfort self-gripping legs by return spring. The puller stays in position on the bearing even when not in tension. Safety a power restrictor pin is pressed when the force applied is too strong. Adaptable puller accessory slide hammer U.49AM. Per tip U.301E1 (U.301P and U.301M). Per tip U.301E2 (U.301L). 3 C mini -maxi mm P maxi mm Ton t T kN LxIxH mm Screw Size Nh kg U.301P 15-50 70 09 9 75x 120x147 U.301P04 0500 U.301M 15-100 100 09 9 90 x 206 x 222 U.301M04 0800 U.301L 15-110 130 13 13 120x268x300 U.301L04 0900 if H U.35 Pullers with outside wide legs Safety use in uncrossed legs configuration doubles capacity but the cross-legged configuration should be used preferably. Adaptable puller accessory slide hammer U.306M for U.35 and U.35L. Set of 2 spare pins U.42-5J2 for U.35P. -U.35-5J2forU.35 and U.35L. C mini maxi mm P maxi mm Ton t T kN LxIxH mm Legs Screw Size Screw Size mm Nh kg U.35P 10-55 75 1 10 65x110x140 U.35D (x 2) U.35P01 13 0400 U.35 15-75 90 4 40 68x 160x183 U.35C (x 2) U.35SE1 17 1000 U.35L 15-75 130 3 30 90x 188x225 U.35B (x 2) U.35SE1 + U.35SE3 17 1200 H High-capacity wide leg outside puller Safety use in uncrossed legs configuration doubles capacity but the cross-legged configuration should be used preferably. Adaptable puller accessory slide hammer U.2. C mini maxi mm P maxi mm Ton t T kN LxIxH mm Legs Screw Size Screw Size mm Nh kg U.34 40-180 245 7 70 215x315x370 U.34G (x2) U.20B1 24 4400 Facom 647
