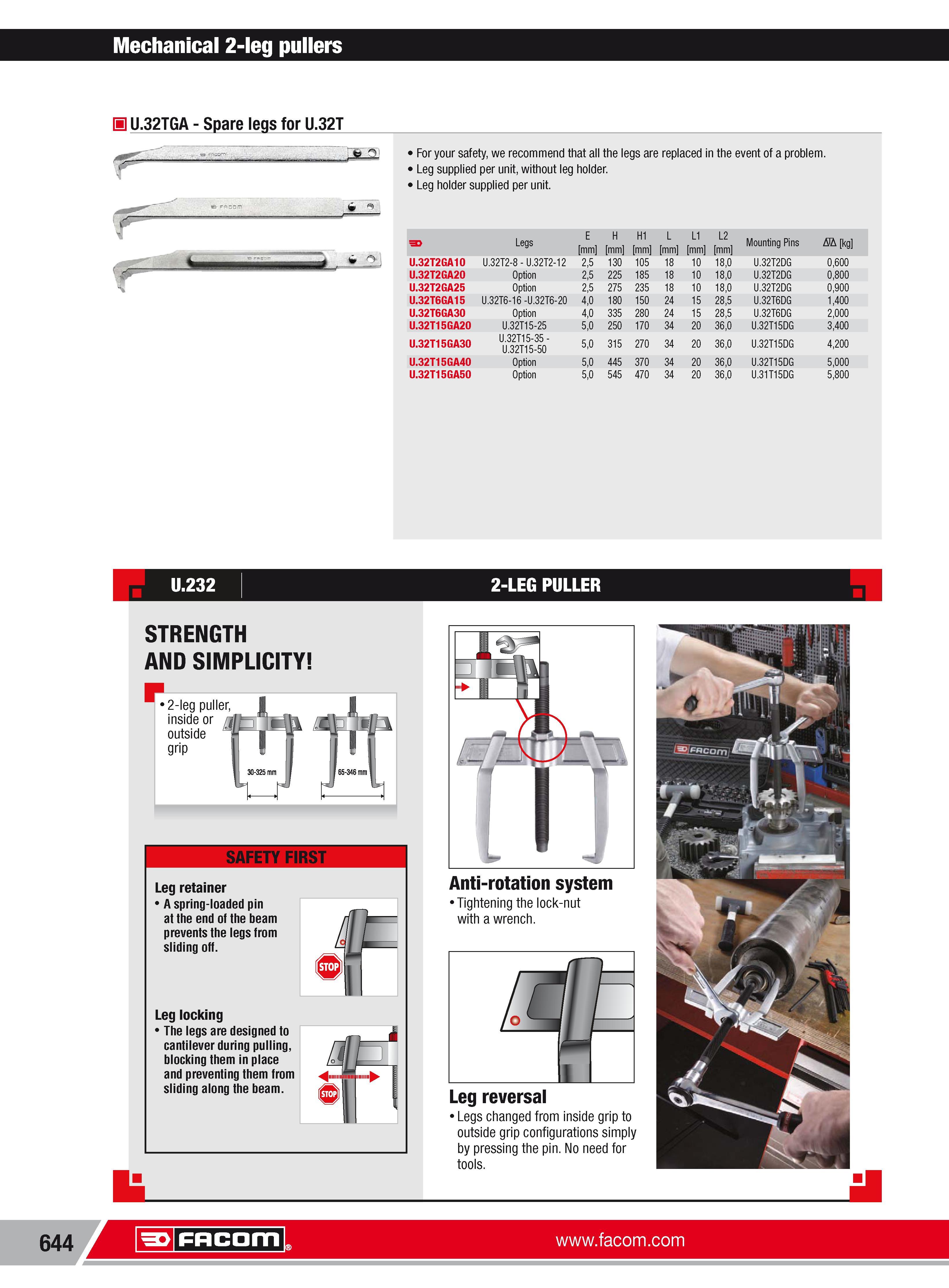

670 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.644

Каталог FACOM 2013 Инструмент Оборудование Стр. 644 0670 ENG Lab2u

Mechanical 2-leg pullers H U.32TGA Spare legs for U.32T For your safety we recommend that all the legs are replaced in the event of a problem. Leg supplied per unit without leg holder. Leg holder supplied per unit. Legs E mm H mm H1 mm L mm L1 mm L2 mm Mounting Pins Nh kg U.32T2GA10 U.32T2-8-U.32T2-12 25 130 105 18 10 180 U.32T2DG 0600 U.32T2GA20 Option 25 225 185 18 10 180 U.32T2DG 0800 U.32T2GA25 Option 25 275 235 18 10 180 U.32T2DG 0900 U.32T6GA15 U.32T6-16 -U.32T6-20 40 180 150 24 15 285 U.32T6DG 1400 U.32T6GA30 Option 40 335 280 24 15 285 U.32T6DG 2000 U.32T15GA20 U.32T15-25 50 250 170 34 20 360 U.32T15DG 3400 U.32T15GA30 U.32T15-35- U.32T15-50 50 315 270 34 20 360 U.32T15DG 4200 U.32T15GA40 Option 50 445 370 34 20 360 U.32T15DG 5000 U.32T15GA50 Option 50 545 470 34 20 360 U.31T15DG 5800 U.232 2-LEG PULLER STRENGTH AND SIMPLICITY 2-leg puller inside or ri outside grip i 1 ft 1 65-346 mm SAFETY FIRST Leg retainer A spring-loaded pin at the end of the beam prevents the legs from sliding off. Leg locking The legs are designed to cantilever during pulling blocking them in place and preventing them from sliding along the beam. i Anti-rotation system Tightening the lock-nut with a wrench. Leg reversal Legs changed from inside grip to outside grip configurations simply by pressing the pin. No need for tools. 644 Facom
