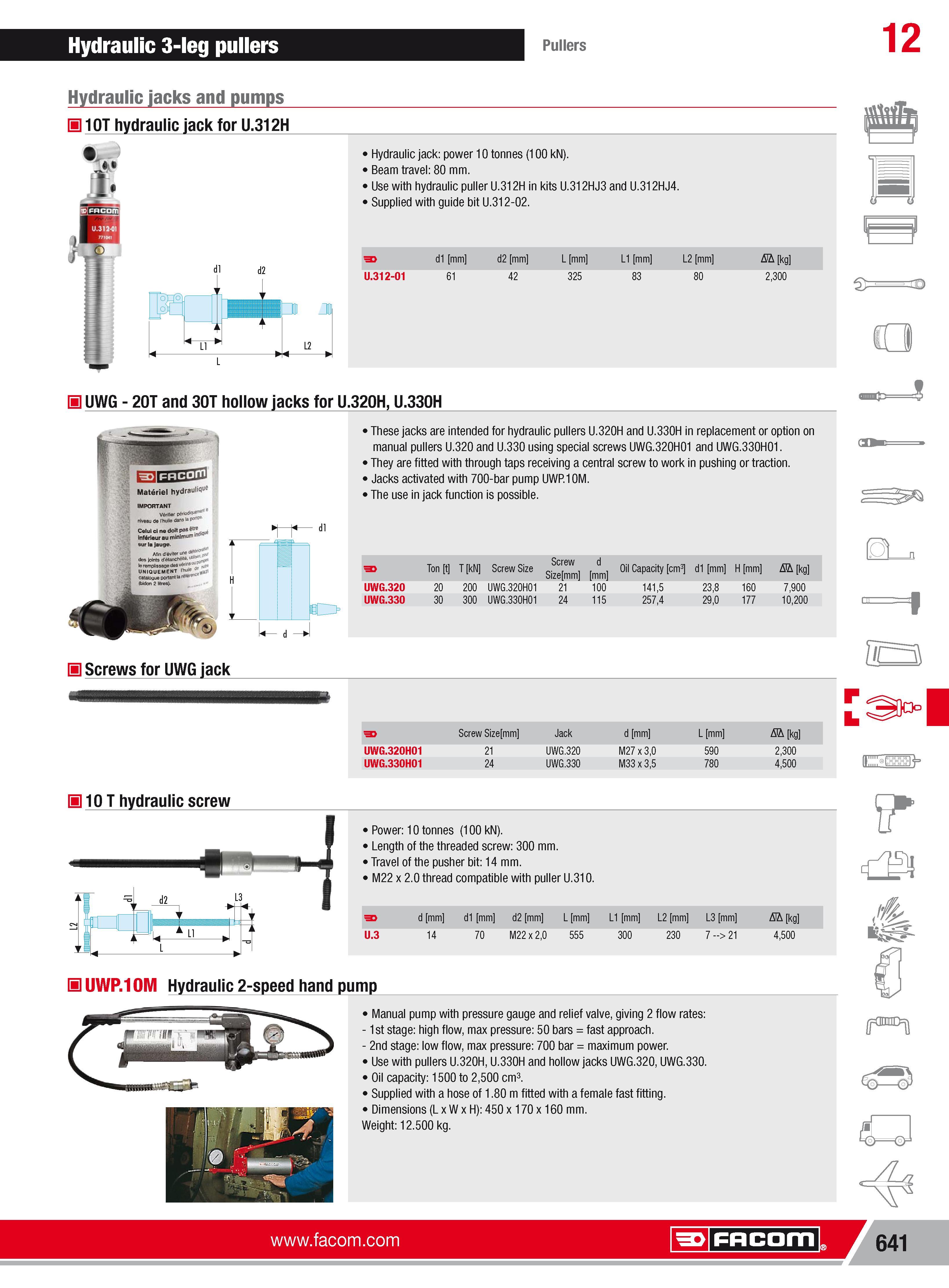

667 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.641

Каталог FACOM 2013 Инструмент Оборудование Стр. 641 0667 ENG Lab2u

Hydraulic 3-leg pullers Pullers 12 Hydraulic jacks and pumps 10T hydraulic jack for U.312H d2 Dl J L2 Hydraulic jack power 10 tonnes (100 kN). Beam travel 80 mm. Use with hydraulic puller U.312H in kits U.312HJ3 and U.312HJ4. Supplied with guide bit U.312-02. d1 mm d2 mm L mm L1 mm L2 mm Nh kg U.312-01 61 42 325 83 80 2300 IIUWG 20T and 30T hollow jacks for U.320H U.330H Materiel hydrauliqu IMPORTANT period'7- nKnu M rhuflo u C lui clrwdoHpM lnf riaur au mW Turn ur la Jauge Ain dn fc)W tf Atone 1 UNIQUEMCHT -jjt CMWoyue DOrt Vil l r frx H Screws for UWG jack These jacks are intended for hydraulic pullers U.320H and U.330H in replacement or option on manual pullers U.320 and U.330 using special screws UWG.320H01 and UWG.330H01. They are fitted with through taps receiving a central screw to work in pushing or traction. Jacks activated with 700-bar pump UWP.10M. The use in jack function is possible. Ton t T kN Screw Size Screw Size mm d mm Oil Capacity cm3 d1 mm H mm Nh kg UWG.320 20 200 UWG.320H01 21 100 1415 238 160 7900 UWG.330 30 300 UWG.330H01 24 115 2574 290 177 10200 3 1 iQ Screw Size mm Jack d mm L mm Nh kg UWG.320H01 21 UWG.320 M27 x 30 590 2300 UWG.330H01 24 UWG.330 M33x35 780 4500 10 T hydraulic screw tl2 1 U L1 Power 10 tonnes (100 kN). Length of the threaded screw 300 mm. Travel of the pusher bit 14 mm. M22 x 2.0 thread compatible with puller U.310. U.3 d mm 14 d1 mm 70 d2 mm M22 x 20 L mm 555 L1 mm 300 L2 mm 230 L3 mm 7 21 Nh kg 4500 H UWP.10M Hydraulic 2-speed hand pump Manual pump with pressure gauge and relief valve giving 2 flow rates 1st stage high flow max pressure 50 bars fast approach. 2nd stage low flow max pressure 700 bar maximum power. Use with pullers U.320H U.330H and hollowjacks UWG.320 UWG.330. Oil capacity 1500 to 2500 cm3. Supplied with a hose of 1.80 m fitted with a female fast fitting. Dimensions (Lx Wx H) 450 x 170x160 mm. Weight 12.500 kg. L Facom 641
