669 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.643

Каталог FACOM 2013 Инструмент Оборудование Стр. 643 0669 ENG Lab2u

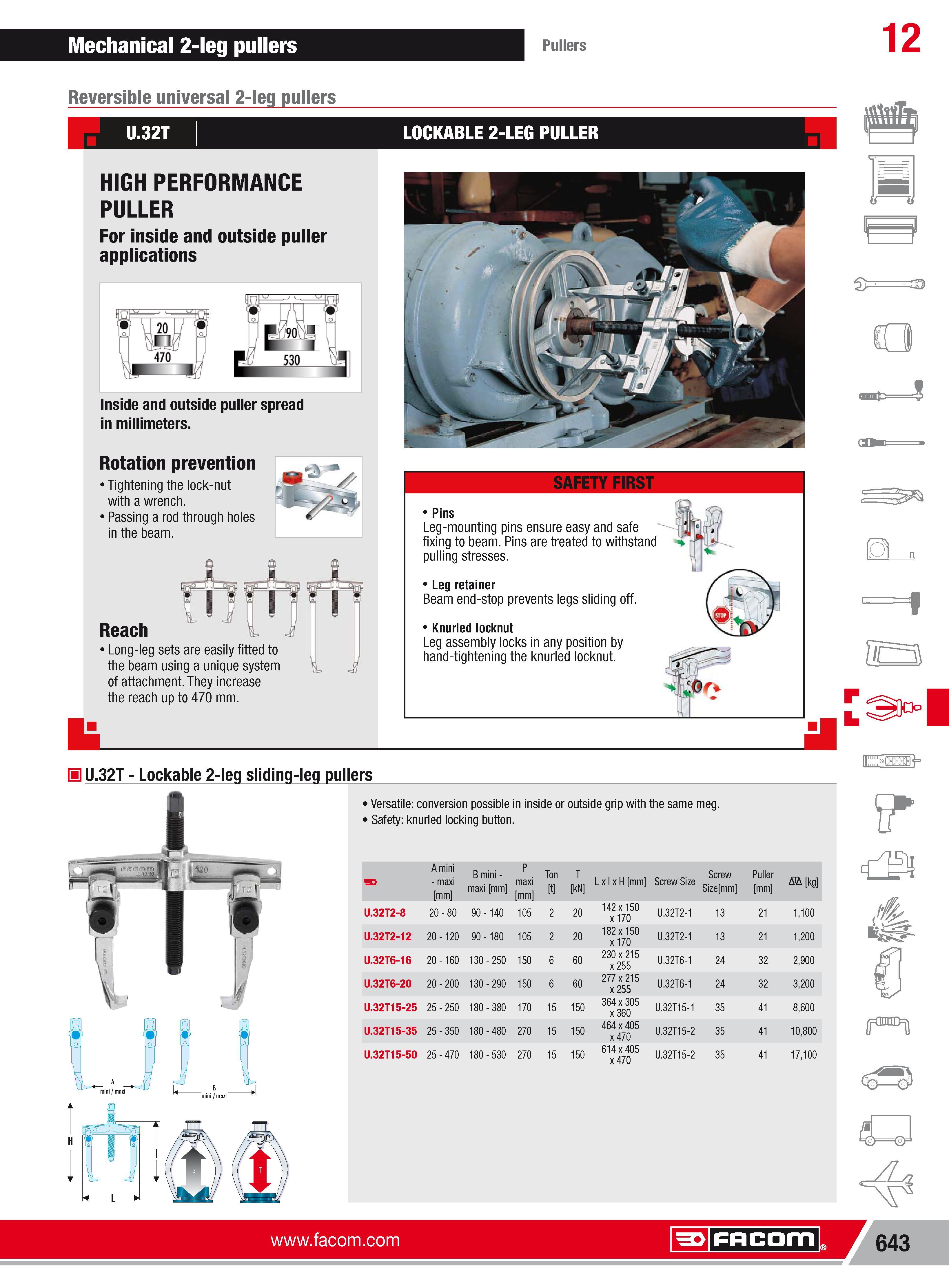

Mechanical 2-leg pullers Pullers 12 Reversible universal 2-leg pullers U.32T HIGH PERFORMANCE PULLER For inside and outside puller applications LOCKABLE 2-LEG PULLER b Inside and outside puller spread in millimeters. Rotation prevention Tightening the lock-nut with a wrench. Passing a rod through holes in the beam. SAFETY FIRST Reach Long-leg sets are easily fitted to the beam using a unique system of attachment. They increase the reach up to 470 mm. Pins Leg-mounting pins ensure easy and safe Axing to beam. Pins are treated to withstand pulling stresses. Leg retainer Beam end-stop prevents legs sliding off. Knurled locknut Leg assembly locks in any position by hand-tightening the knurled locknut. 11 U.32T Lockable 2-leg sliding-leg pullers Versatile conversion possible in inside or outside grip with the same meg. Safety knurled locking button. U.32T15-50 25-470 180-530 270 15 150 614x405 x 470 U.32T15-2 35 41 17100 Facom 643 Facom
