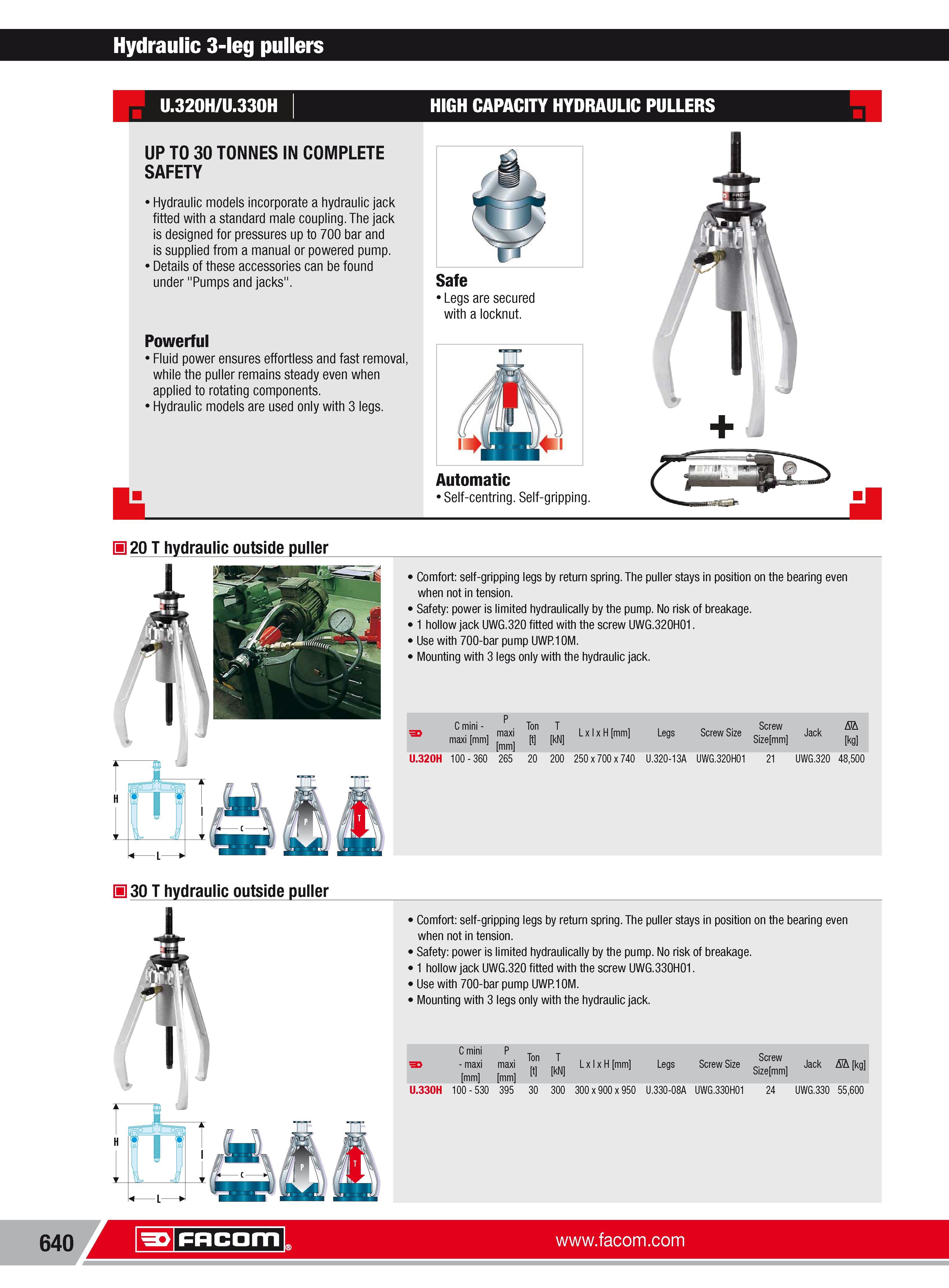

666 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.640

Каталог FACOM 2013 Инструмент Оборудование Стр. 640 0666 ENG Lab2u

Hydraulic 3-leg pullers U.320H U.330H HIGH CAPACITY HYDRAULIC PULLERS UP TO 30 TONNES IN COMPLETE SAFETY Hydraulic models incorporate a hydraulic jack fitted with a standard male coupling. The jack is designed for pressures up to 700 bar and is supplied from a manual or powered pump. Details of these accessories can be found under "Pumps and jacks". Powerful Fluid power ensures effortless and fast removal while the puller remains steady even when applied to rotating components. Hydraulic models are used only with 3 legs. Safe Legs are secured with a locknut. Automatic Self-centring. Self-gripping. 20 T hydraulic outside puller Comfort self-gripping legs by return spring. The puller stays in position on the bearing even when not in tension. Safety power is limited hydraulically by the pump. No risk of breakage. 1 hollowjack UWG.320 fitted with the screw UWG.320H01. Use with 700-bar pump UWP.10M. Mounting with 3 legs only with the hydraulic jack. P C mini .Ton T maxi m LxIxHfmm maxi mm t kN 1 J Legs Screw Size U.320H 100 -360 265 Screw Size mm 20 200 250x700x740 U.320-13A UWG.320H01 21 Jack AA kg .320 48500 30 T hydraulic outside puller Comfort self-gripping legs by return spring. The puller stays in position on the bearing even when not in tension. Safety power is limited hydraulically by the pump. No risk of breakage. 1 hollowjack UWG.320 fitted with the screw UWG.330H01. Use with 700-bar pump UWP.10M. Mounting with 3 legs only with the hydraulic jack. C mini P Ton t Screw maxi maxi m LxlxH mm Legs Screw Size r Jack AA kg mm mm t kN Size mm U.330H 100 -530 395 30 300 300x900x950 U.330-08A UWG.330H01 24 UWG.330 55600 640 Facom
