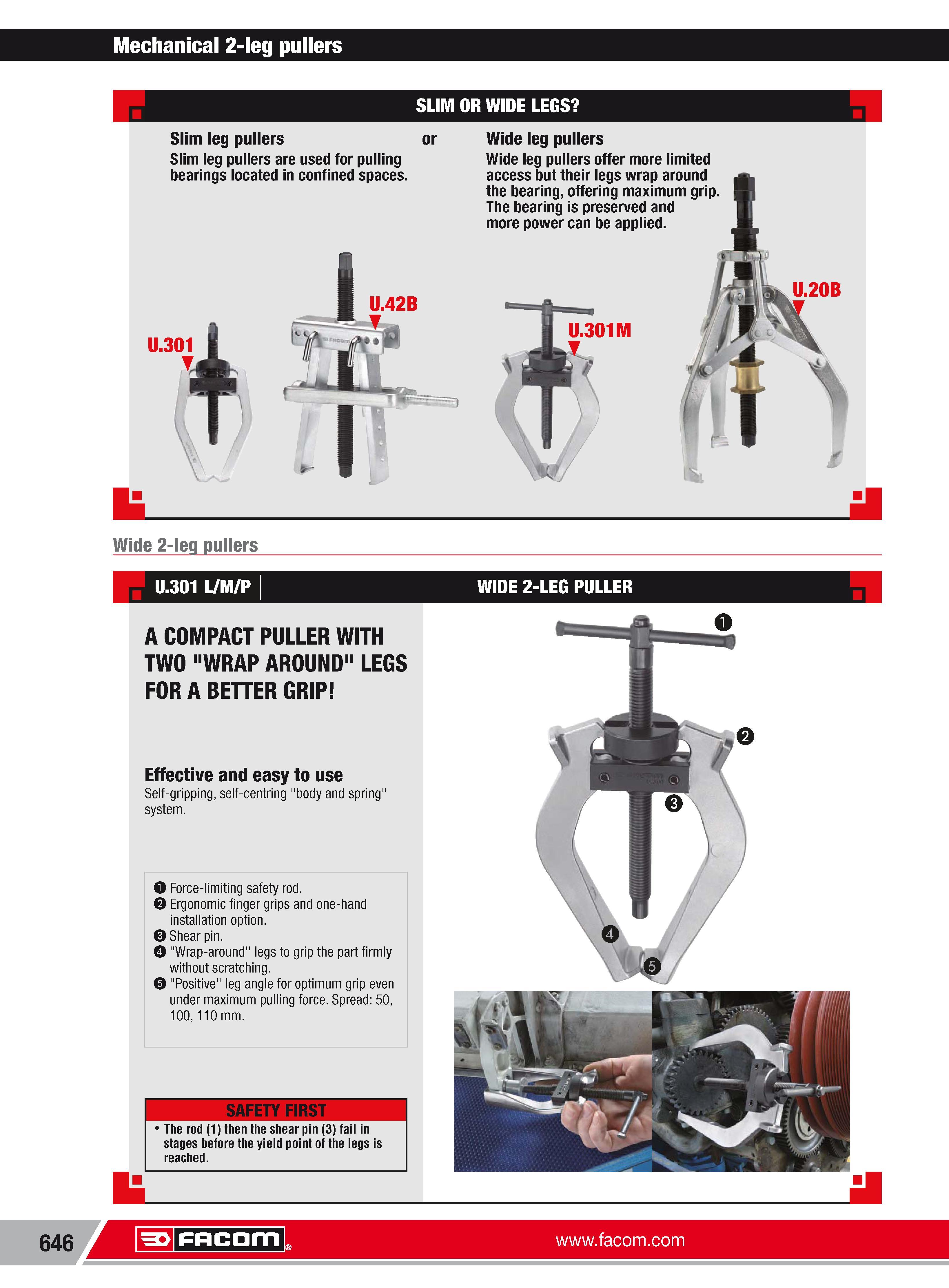

Mechanical 2-leg pullers d SLIM OR WIDE LEGS b Slim leg pullers Slim leg pullers are used for pulling bearings located in confined spaces. or Wide leg pullers Wide leg pullers offer more limited access but their legs wrap around the bearing offering maximum grip The bearing is preserved and more power can be applied. U.42B U.301 U.20B U.301M r vV Wide 2-leg pullers 646 U.301 L M P A COMPACT PULLER WITH TWO "WRAP AROUND" LEGS FOR A BETTER GRIP WIDE 2-LEG PULLER o Effective and easy to use Self-gripping self-centring "body and spring1 system. o Force-limiting safety rod. 0 Ergonomic finger grips and one-hand installation option. 0 Shear pin. O "Wrap-around" legs to grip the part firmly without scratching. 0 " Positive" leg angle for optimum grip even under maximum pulling force. Spread 50 100 110 mm. SAFETY FIRST The rod (1) then the shear pin (3) fail in stages before the yield point of the legs is reached. Facom
