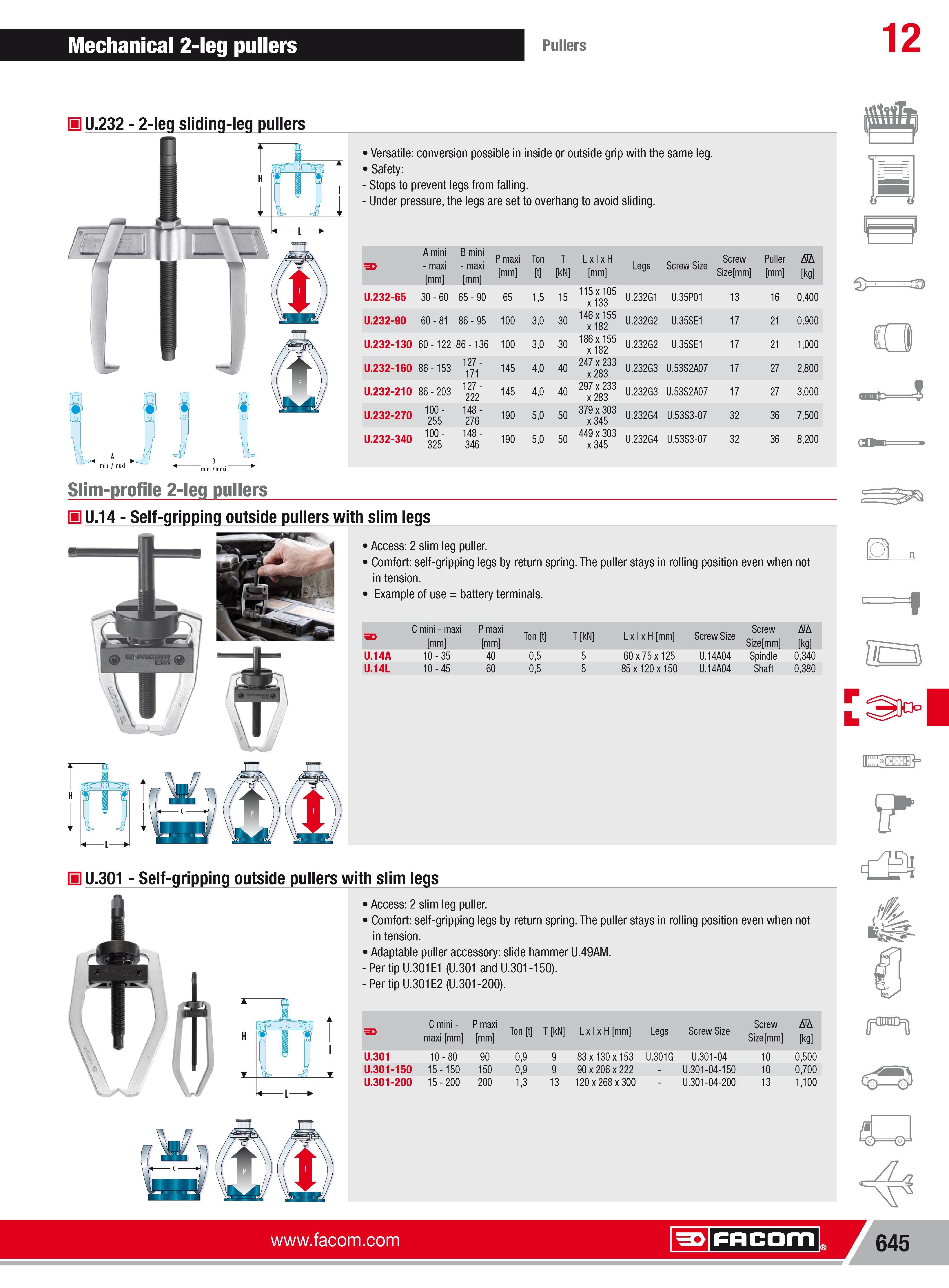

671 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.645

Каталог FACOM 2013 Инструмент Оборудование Стр. 645 0671 ENG Lab2u

Mechanical 2-leg pullers Pullers 12 H U.232 2-leg sliding-leg pullers Versatile conversion possible in inside or outside grip with the same leg. Safety Stops to prevent legs from falling. Under pressure the legs are set to overhang to avoid sliding. A mini maxi mm B mini maxi mm P maxi mm Ton t T kN LxIxH mm Legs Screw Size Screw Size mm Puller mm Nh kg U.232-65 30 60 65-90 65 15 15 115x105 x 133 U.232G1 U.35P01 13 16 0400 U.232-90 60-81 86-95 100 30 30 146x155 x 182 U.232G2 U.35SE1 17 21 0900 U.232-130 60 122 86 136 100 30 30 186x155 x 182 U.232G2 U.35SE1 17 21 1000 U.232-160 86-153 127- 171 145 40 40 247 x 233 x 283 U.232G3 U.53S2A07 17 27 2800 U.232-210 86 203 127- 222 145 40 40 297 x 233 x 283 U.232G3 U.53S2A07 17 27 3000 U.232-270 100- 255 148- 276 190 50 50 379 x 303 x 345 U.232G4 U.53S3-07 32 36 7500 U.232-340 100- 325 148- 346 190 50 50 449 x 303 x 345 U.232G4 U.53S3-07 32 36 8200 L B mini maxi Slim-profile 2-leg pullers U.14 Self-gripping outside pullers with slim legs Access 2 slim leg puller. Comfort self-gripping legs by return spring. The puller stays in rolling position even when not in tension. Example of use battery terminals. C mini maxi mm P maxi mm Ton t T kN LxIxH mm Screw Size Screw Size mm Nh kg U.14A 10-35 40 05 5 60x75x125 U.14A04 Spindle 0340 U.14L 10-45 60 05 5 85x 120x150 U.14A04 Shaft 0380 H U.301 Self-gripping outside pullers with slim legs H Access 2 slim leg puller. Comfort self-gripping legs by return spring. The puller stays in rolling position even when not in tension. Adaptable puller accessory slide hammer U.49AM. Per tip U.301E1 (U.301 and U.301-150). Per tip U.301E2 (U.301-200). C mini -maxi mm P maxi mm Ton t T kN LxIxH mm Legs Screw Size Screw Size mm Nh kg U.301 10-80 90 09 9 83x 130x153 U.301G U.301-04 10 0500 U.301-150 15-150 150 09 9 90 x 206 x 222 U.301-04-150 10 0700 U.301-200 15 200 200 13 13 120x268x300 U.301-04-200 13 1100 Facom 645
