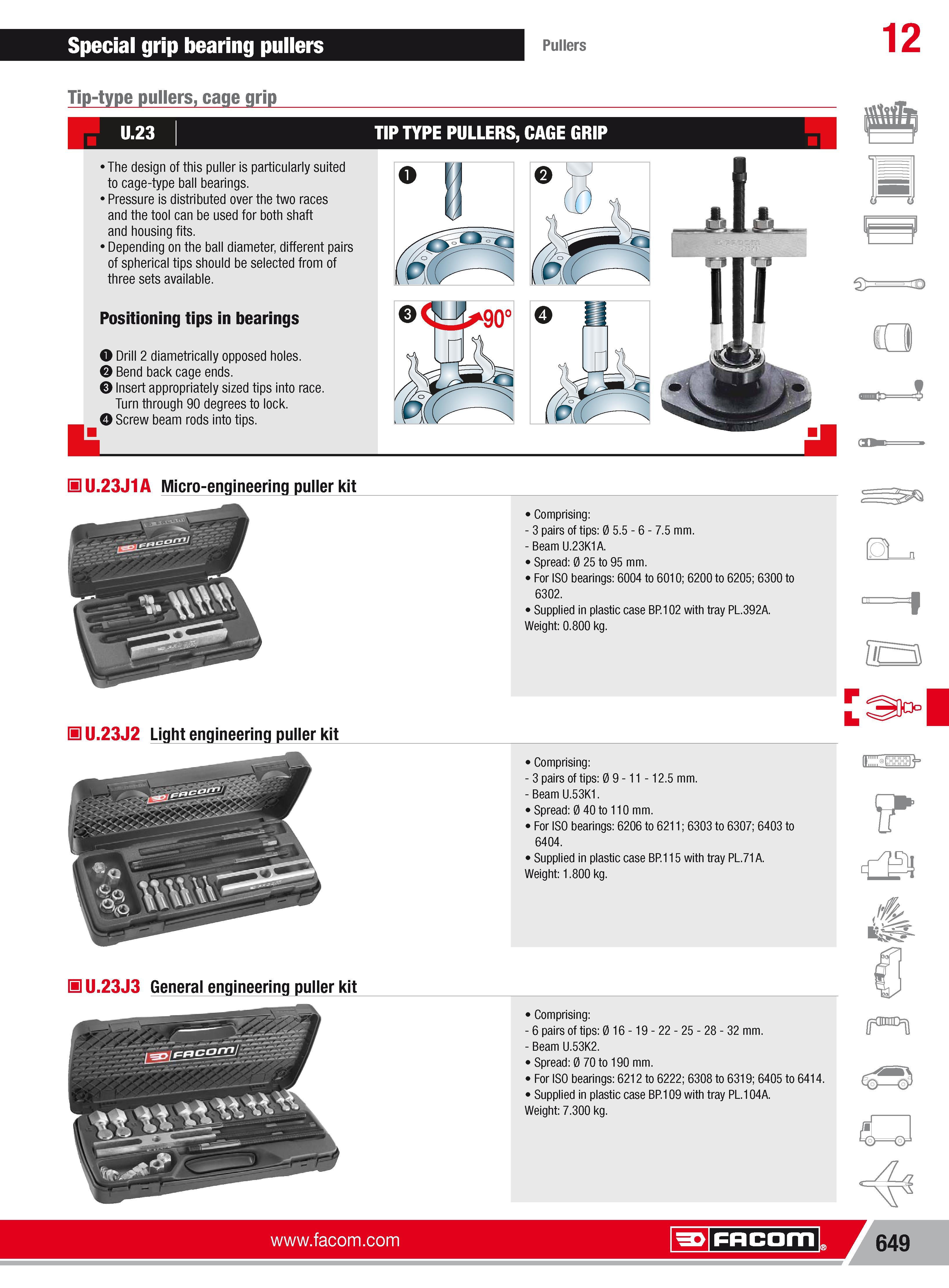

675 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.649

Каталог FACOM 2013 Инструмент Оборудование Стр. 649 0675 ENG Lab2u

Special grip bearing pullers Pullers 12 Tip-type pullers cage grip The design of this puller is particularly suited to cage-type ball bearings. Pressure is distributed over the two races and the tool can be used for both shaft and housing fits. Depending on the ball diameter different pairs of spherical tips should be selected from of three sets available. Positioning tips in bearings O Drill 2 diametrically opposed holes. 0 Bend backcage ends. 0 Insert appropriately sized tips into race. Turn through 90 degrees to lock. O Screw beam rods into tips. TIP TYPE PULLERS CAGE GRIP H U.23J1A Micro-engineering puller kit H U.23J2 Light engineering puller kit Comprising 3 pairs of tips 0 5.5-6- 7.5 mm. -Beam U.23K1A. Spread 0 25 to 95 mm. For ISO bearings 6004 to 6010; 6200 to 6205; 6300 to 6302. Supplied in plastic case BP.102 with tray PL.392A. Weight 0.800 kg. Comprising 3 pairs of tips 0 9-11 -12.5 mm. -Beam U.53K1. Spread 0 4Oto11O mm. For ISO bearings 6206 to 6211; 6303 to 6307; 6403 to 6404. Supplied in plastic case BP.115 with tray PL.71A. Weight 1.800 kg. H U.23J3 General engineering puller kit Comprising 6 pairs of tips 0 16- 19- 22 25 28- 32 mm. Beam U.53K2. Spread 0 70 to 190 mm. For ISO bearings 6212 to 6222; 6308 to 6319; 6405 to 6414. Supplied in plastic case BP.109 with tray PL.104A. Weight 7.300 kg. Facom 649
