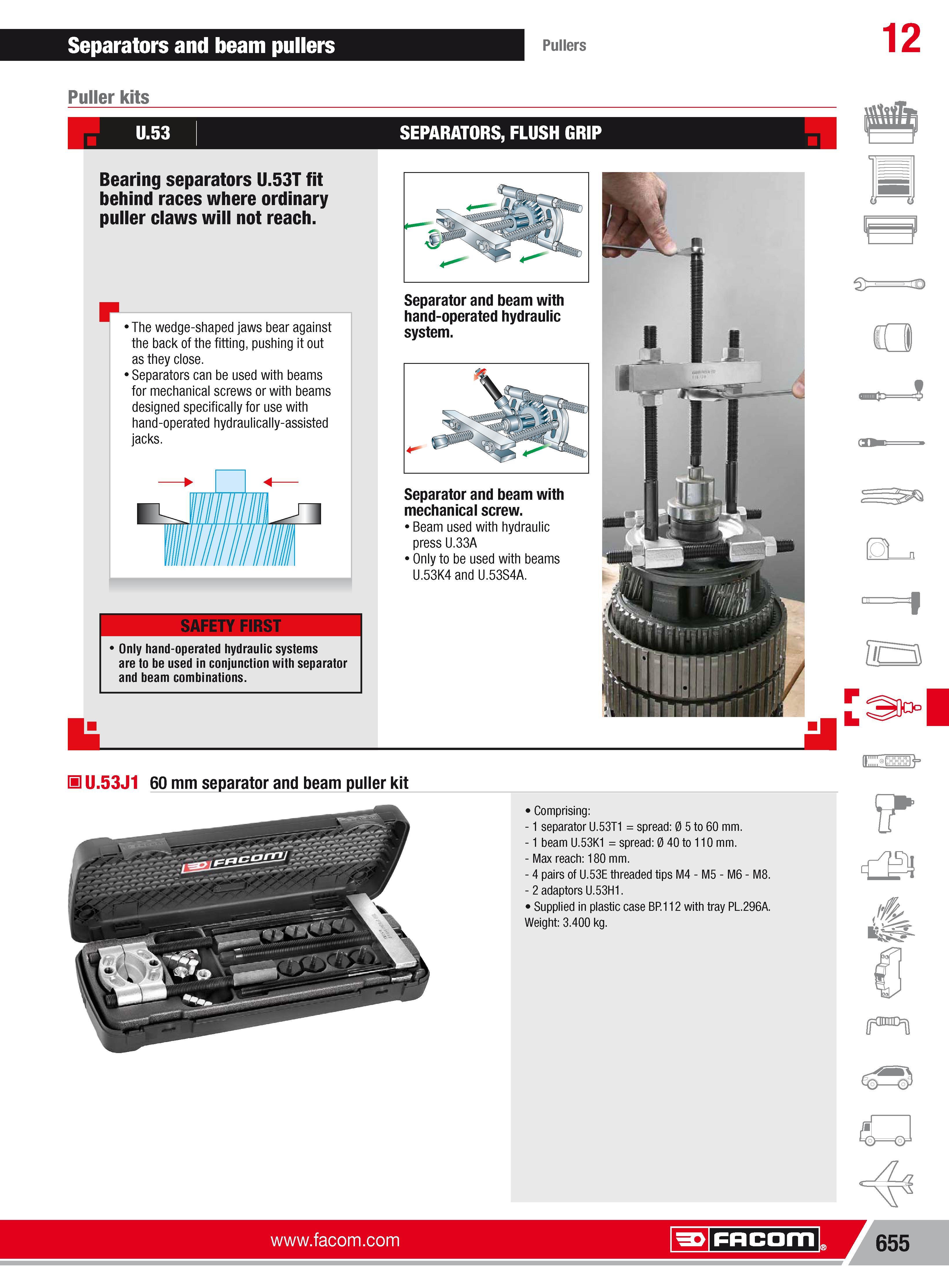

Separators and beam pullers Pullers 12 Puller kits U.53 Bearing separators U.53T fit behind races where ordinary puller claws will not reach. The wedge-shaped jaws bear against the back of the fitting pushing it out as they close. Separators can be used with beams for mechanical screws or with beams designed specifically for use with hand-operated hydraulically-assisted jacks. SEPARATORS FLUSH GRIP Separator and beam with hand-operated hydraulic system. Separator and beam with mechanical screw. Beam used with hydraulic press U.33A Only to be used with beams U.53K4 and U.53S4A. SAFETY FIRST Only hand-operated hydraulic systems are to be used in conjunction with separator and beam combinations. r 11 U.53J1 60 mm separator and beam puller kit Comprising -1 separator U.53T1 spread 0 5to6O mm. -1 beam U.53K1 spread 0 4Oto11O mm. Max reach 180 mm. 4 pairs of U.53E threaded tips M4-M5-M6- M8. 2 adaptors U.53H1. Supplied in plastic case BP.112 with tray PL.296A. Weight 3.400 kg. Facom 655
