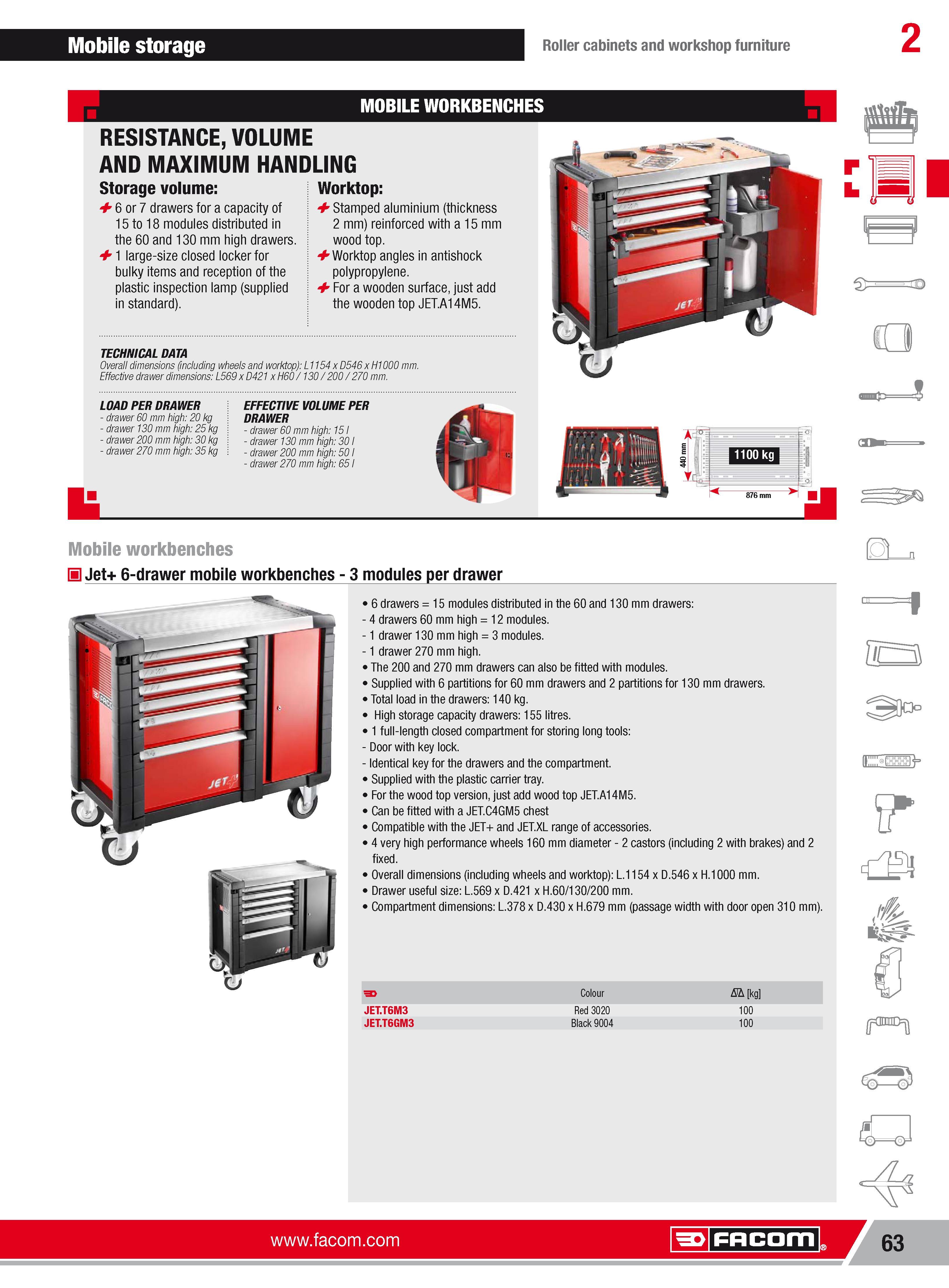

89 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.63

Каталог FACOM 2013 Инструмент Оборудование Стр. 63 0089 ENG Lab2u

Mobile storage Roller cabinets and workshop furniture 2 MOBILE WORKBENCHES RESISTANCE VOLUME AND MAXIMUM HANDLING Storage volume + 6 or 7 drawers for a capacity of 15 to 18 modules distributed in the 60 and 130 mm high drawers. + 1 large-size closed locker for bulky items and reception of the plastic inspection lamp (supplied in standard). Worktop + Stamped aluminium (thickness 2 mm) reinforced with a 15 mm wood top. + Worktop angles in antishock polypropylene. + For a wooden surface just add the wooden top JET.A14M5. TECHNICAL DATA Overall dimensions (including wheels and worktop) L1154 x D546 x H1000 mm. Effective drawer dimensions L569 x D421 x H60 130 200 270 mm. r L i LOAD PER DRAWER drawer 60 mm high 20 kg drawer 130 mm high 25 kg drawer 200 mm high 30 kg drawer 270 mm high 35 kg EFFECTIVE VOLUME PER DRAWER drawer 60 mm high 15 l drawer 130 mm high 301 drawer 200 mm high 50 l drawer 270 mm high 651 Mobile workbenches Jet+ 6-drawer mobile workbenches 3 modules per drawer 6 drawers 15 modules distributed in the 60 and 130 mm drawers 4 drawers 60 mm high 12 modules. 1 drawer130 mm high 3 modules. 1 drawer 270 mm high. The 200 and 270 mm drawers can also be fitted with modules. Supplied with 6 partitions for 60 mm drawers and 2 partitions for 130 mm drawers. Total load in the drawers 140 kg. High storage capacity drawers 155 litres. 1 full-length closed compartment for storing long tools Door with key lock. Identical key for the drawers and the compartment. Supplied with the plastic carrier tray. For the wood top version just add wood top JET.A14M5. Can be fitted with a JET.C4GM5 chest Compatible with the JET+ and JET.XL range of accessories. 4 very high performance wheels 160 mm diameter 2 castors (including 2 with brakes) and 2 fixed. Overall dimensions (including wheels and worktop) L.1154x D.546 x H.1000 mm. Drawer useful size L.569 x D.421 x H.60 130 200 mm. Compartment dimensions L.378 x D.430 x H.679 mm (passage width with door open 310 mm). Colour SL kg JET.T6M3 Red 3020 100 JET.T6GM3 Black 9004 100 Facom 63 Facom
