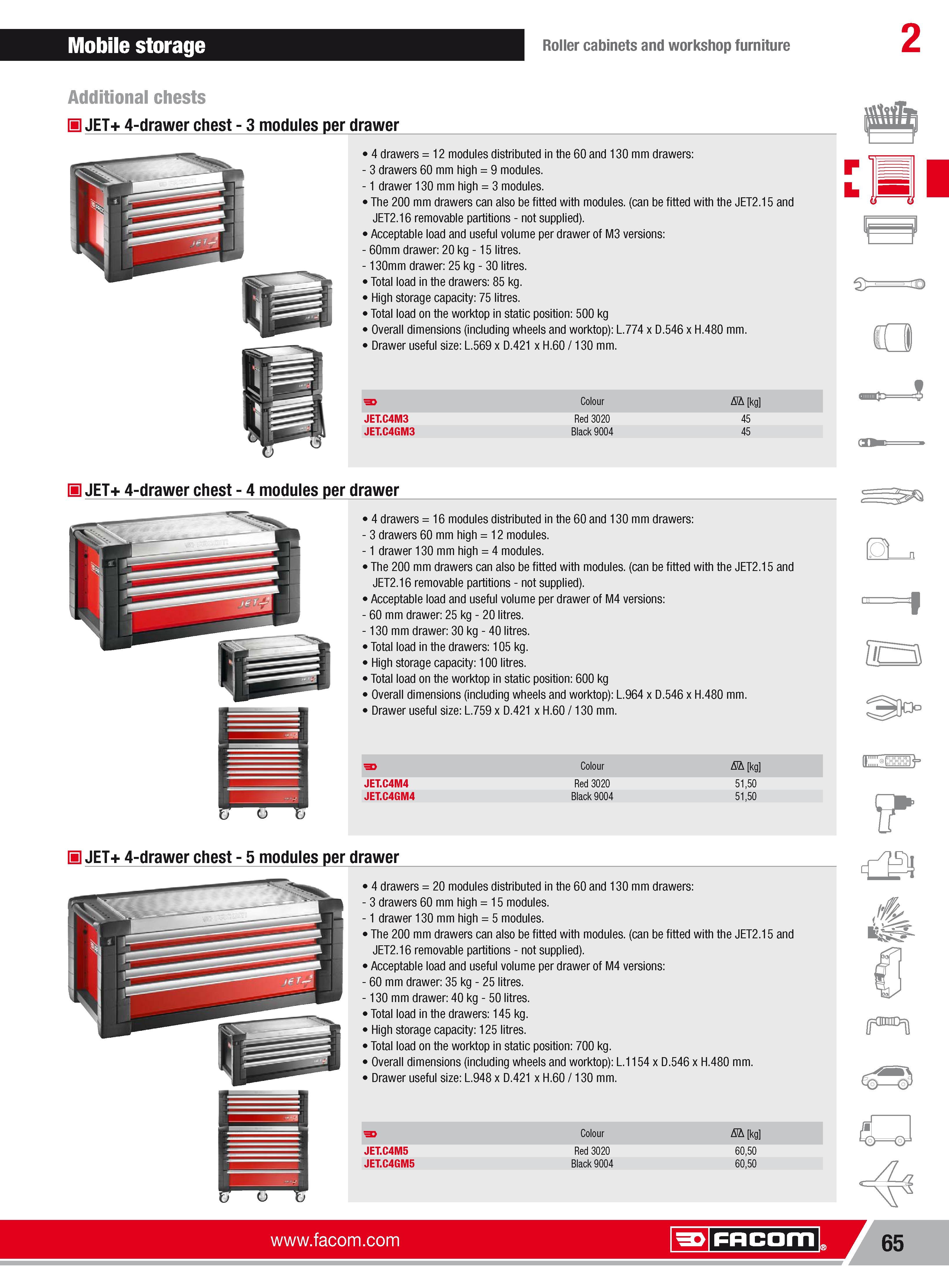

Mobile storage Roller cabinets and workshop furniture 2 Additional chests JET+ 4-drawer chest 3 modules per drawer 4 drawers 12 modules distributed in the 60 and 130 mm drawers 3 drawers 60 mm high 9 modules. 1 drawer130 mm high 3 modules. The 200 mm drawers can also be fitted with modules (can be fitted with the JET2.15 and JET2.16 removable partitions not supplied). Acceptable load and useful volume per drawer of M3 versions 60mm drawer 20kg-15 litres. 130mm drawer 25 kg 30 litres. Total load in the drawers 85 kg. High storage capacity 75 litres. Total load on the worktop in static position 500 kg Overall dimensions (including wheels and worktop) L.774 x D.546 x H.480 mm. Drawer useful size L.569 x D.421 x H.60 130 mm. r L i Colour Aft kg JET.C4M3 Red 3020 45 JET.C4GM3 Black 9004 45 JET+ 4-drawer chest 4 modules per drawer r 4 drawers 16 modules distributed in the 60 and 130 mm drawers 3 drawers 60 mm high 12 modules. 1 drawer130 mm high 4 modules. The 200 mm drawers can also be fitted with modules (can be fitted with the JET2.15 and JET2.16 removable partitions not supplied). Acceptable load and useful volume per drawer of M4 versions 60 mm drawer 25 kg 20 litres. 130 mm drawer 30 kg 40 litres. Total load in the drawers 105 kg. High storage capacity 100 litres. Total load on the worktop in static position 600 kg Overall dimensions (including wheels and worktop) L.964 x D.546 x H.480 mm. Drawer useful size L.759 x D.421 x H.60 130 mm. Colour AA kg JET.C4M4 Red 3020 5150 JET.C4GM4 Black 9004 5150 JET+ 4-drawer chest 5 modules per drawer 4 drawers 20 modules distributed in the 60 and 130 mm drawers 3 drawers 60 mm high 15 modules. 1 drawer130 mm high 5 modules. The 200 mm drawers can also be fitted with modules (can be fitted with the JET2.15 and JET2.16 removable partitions not supplied). Acceptable load and useful volume per drawer of M4 versions 60 mm drawer 35 kg 25 litres. 130 mm drawer 40 kg 50 litres. Total load in the drawers 145 kg. High storage capacity 125 litres. Total load on the worktop in static position 700 kg. Overall dimensions (including wheels and worktop) L.1154x D.546 x H.480 mm. Drawer useful size L.948 x D.421 x H.60 130 mm. Colour Aft kg JET.C4M5 Red 3020 6050 JET.C4GM5 Black 9004 6050 Facom 65 Facom
