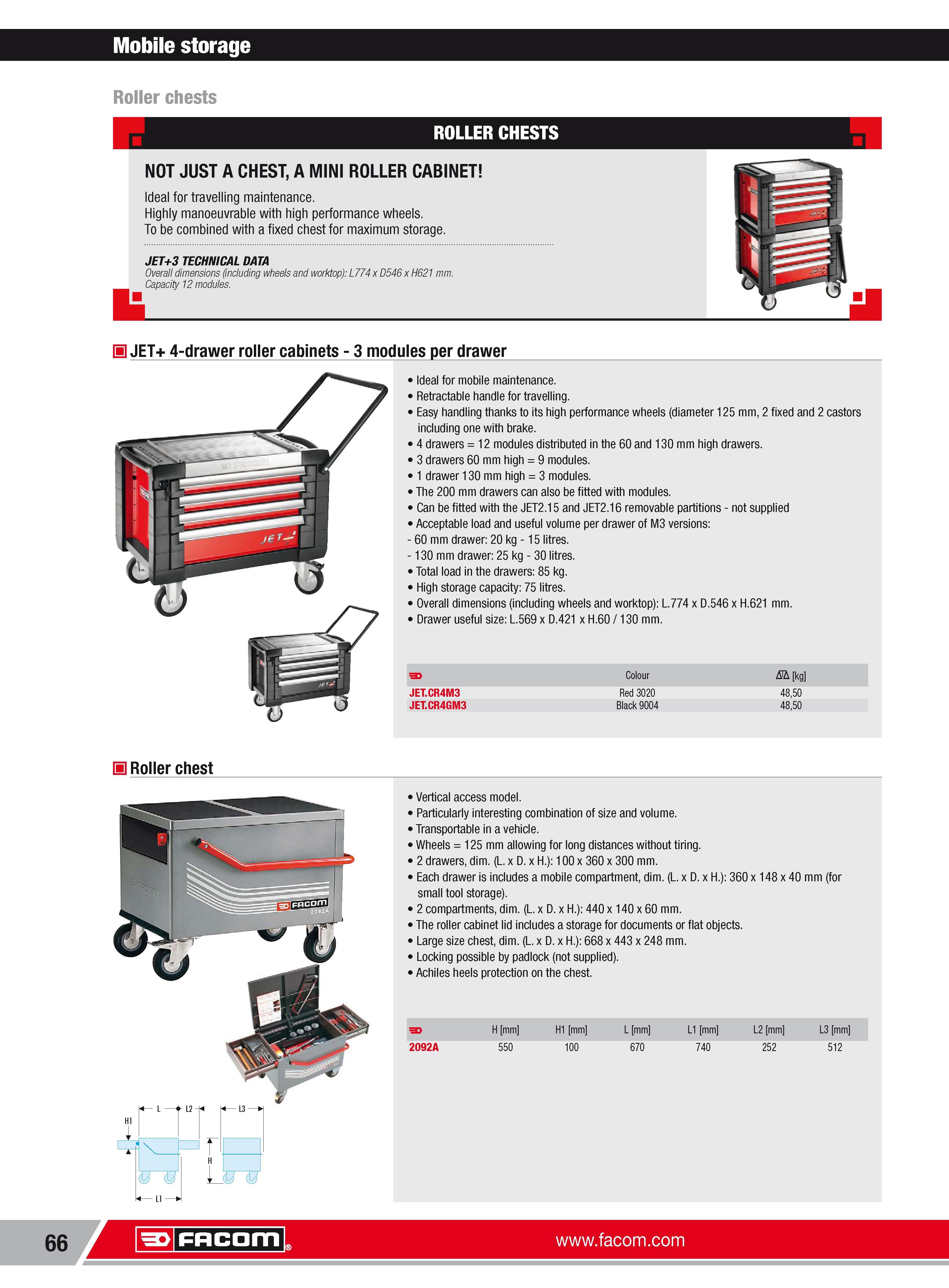

Mobile storage Roller chests ROLLER CHESTS NOT JUST A CHEST A MINI ROLLER CABINET Ideal for travelling maintenance. Highly manoeuvrable with high performance wheels. To be combined with a fixed chest for maximum storage. JET+3 TECHNICAL DATA Overall dimensions (including wheels and worktop) L774x D546x H621 mm. Capacity 12 modules. JET+ 4-drawer roller cabinets 3 modules per drawer Ideal for mobile maintenance. Retractable handle for travelling. Easy handling thanks to its high performance wheels (diameter 125 mm 2 fixed and 2 castors including one with brake. 4 drawers 12 modules distributed in the 60 and 130 mm high drawers. 3 drawers 60 mm high 9 modules. 1 drawer 130 mm high 3 modules. The 200 mm drawers can also be fitted with modules. Can be fitted with the JET2.15and JET2.16 removable partitions not supplied Acceptable load and useful volume per drawer of M3 versions 60 mm drawer 20kg-15 litres. 130 mm drawer 25 kg 30 litres. Total load in the drawers 85 kg. High storage capacity 75 litres. Overall dimensions (including wheels and worktop) L.774 x D.546 x H.621 mm. Drawer useful size L.569 x D.421 x H.60 130 mm. 3 Colour Aft kg JET.CR4M3 Red 3020 4850 JET.CR4GM3 Black 9004 4850 Roller chest L i- L2- HI 1 y y Ll r H Vertical access model. Particularly interesting combination of size and volume. Transportable in a vehicle. Wheels 125mm allowing for long distances without tiring. 2drawersdim. (L.xD.xH.) 100x360x300mm. Each drawer is includes a mobile compartment dim. (L. xD.x H.) 360 x 148x40 mm (for small tool storage). 2compartmentsdim. (L.xD.xH.):440x 140x60 mm. The roller cabinet lid includes a storage for documents or flat objects. Large size chest dim. (L. xD.x H.) 668 x 443 x 248 mm. Locking possible by padlock (not supplied). Achiles heels protection on the chest. 2092A H mm 550 H1 mm 100 L mm 670 L1 mm 740 L2 mm 252 L3 mm 512 66 Facom
