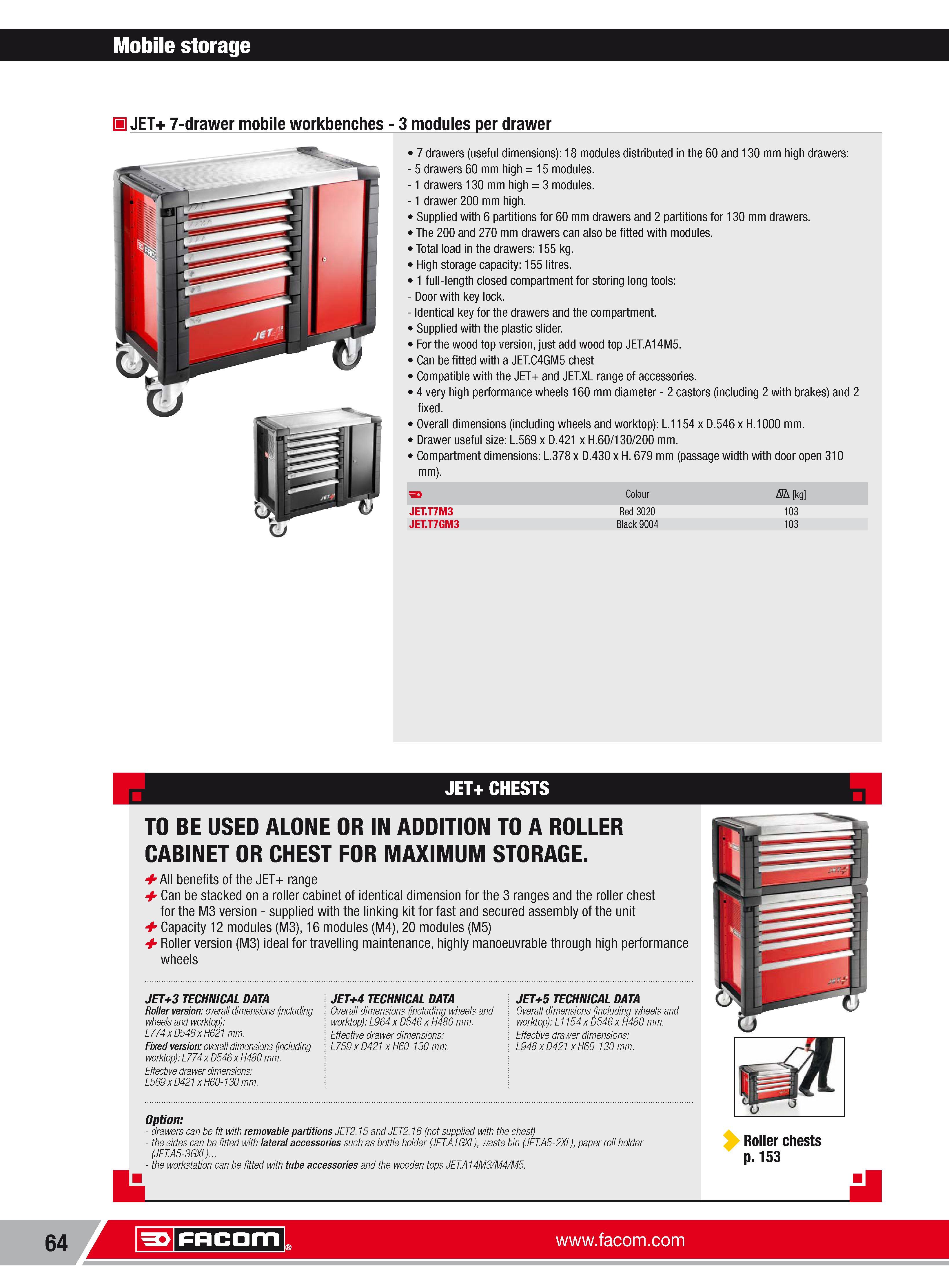

Mobile storage JET+ 7-drawer mobile workbenches 3 modules per drawer 7 drawers (useful dimensions) 18 modules distributed in the 60 and 130 mm high drawers 5 drawers 60 mm high 15 modules. 1 drawers 130 mm high 3 modules. 1 drawer 200 mm high. Supplied with 6 partitions for 60 mm drawers and 2 partitions for 130 mm drawers. The 200 and 270 mm drawers can also be fitted with modules. Total load in the drawers 155 kg. High storage capacity 155 litres. 1 full-length closed compartment for storing long tools Door with key lock. Identical key for the drawers and the compartment. Supplied with the plastic slider. For the wood top version just add wood top JET.A14M5. Can be fitted with a JET.C4GM5 chest Compatible with the JET+ and JET.XL range of accessories. 4 very high performance wheels 160 mm diameter 2 castors (including 2 with brakes) and 2 fixed. Overall dimensions (including wheels and worktop) L.1154x D.546 x H.1000 mm. Drawer useful size L.569 x D.421 x H.60 130 200 mm. Compartment dimensions L.378 x D.430 x H. 679 mm (passage width with door open 310 mm). 3 Colour M kg JET.T7M3 Red 3020 103 JET.T7GM3 Black 9004 103 JET+ CHESTS TO BE USED ALONE OR IN ADDITION TO A ROLLER CABINET OR CHEST FOR MAXIMUM STORAGE. +All benefits of the JET+ range + Can be stacked on a roller cabinet of identical dimension for the 3 ranges and the roller chest for the M3 version supplied with the linking kit for fast and secured assembly of the unit Capacity 12 modules (M3) 16 modules (M4) 20 modules (M5) + Roller version (M3) ideal for travelling maintenance highly manoeuvrable through high performance wheels JET+3 TECHNICAL DATA Roller version overall dimensions (including wheels and worktop) L774 x D546x H621 mm. Fixed version overall dimensions (including worktop) L774 x D546x H480 mm. Effective drawer dimensions L569 x D421 x H60-130 mm. JET+4 TECHNICAL DATA Overall dimensions (including wheels and worktop) L964 x D546 x H480 mm. Effective drawer dimensions L759x D421 x H60-130 mm. JET+5 TECHNICAL DATA Overall dimensions (including wheels and worktop) L1154 x D546 x H480 mm. Effective drawer dimensions L948 x D421 x H60-130 mm. 64 Option drawers can be fit with removable partitions JET2.15 and JET2.16 (not supplied with the chest) the sides can be fitted with lateral accessories such as bottle holder (JET.A1GXL) waste bin (JET.A5-2XL) paper roll holder (JET.A5-3GXL)... the workstation can be fitted with tube accessories and the wooden tops JET.A14M3 M4 M5. Roller chests p. 153 Facom
