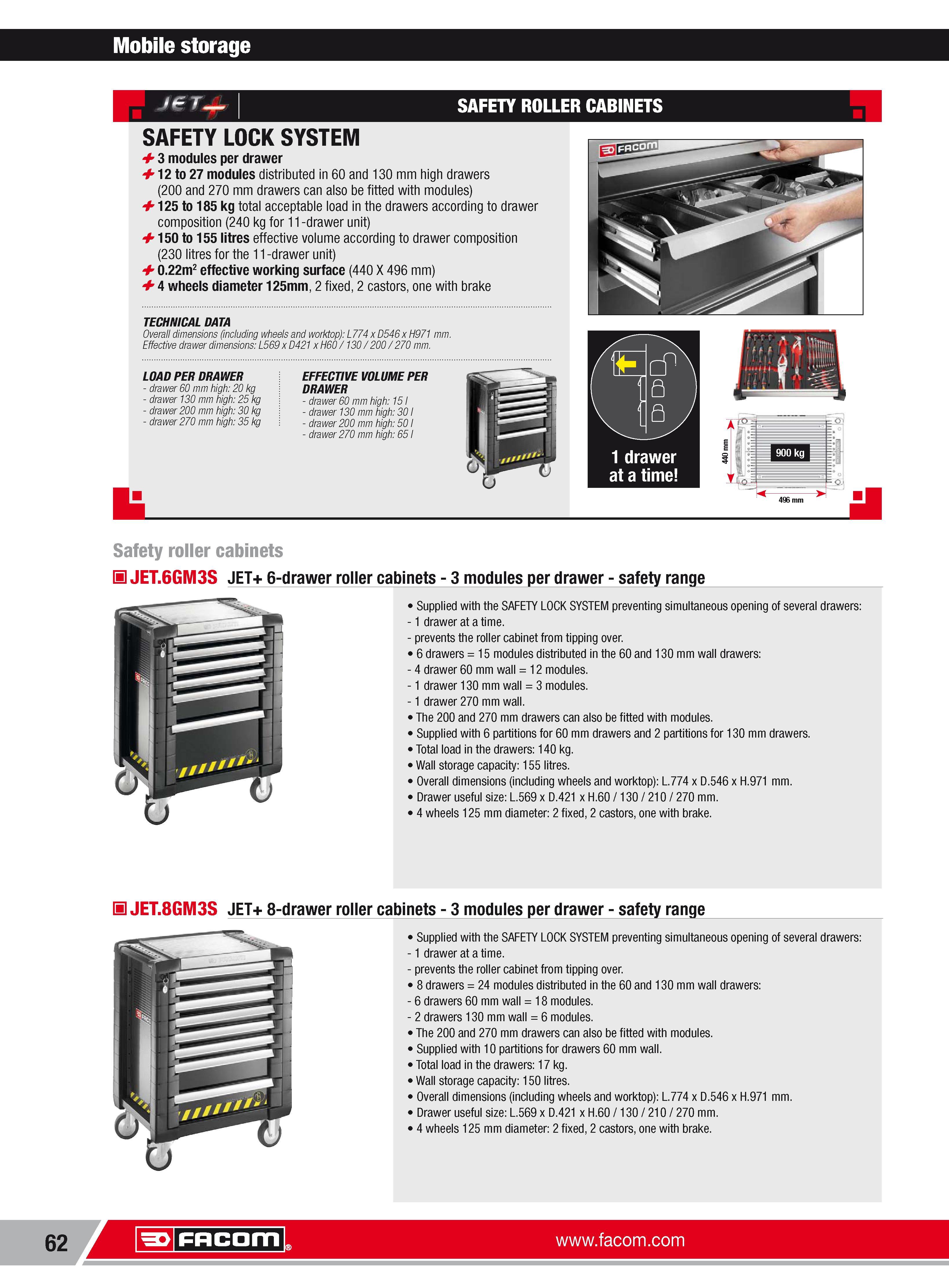

Mobile storage T SAFETY ROLLER CABINETS SAFETY LOCK SYSTEM 3 modules per drawer + 12 to 27 modules distributed in 60 and 130 mm high drawers (200 and 270 mm drawers can also be fitted with modules) + 125 to 185 kg total acceptable load in the drawers according to drawer composition (240 kg for 11-drawer unit) + 150 to 155 litres effective volume according to drawer composition (230 litres for the 11-drawer unit) 0.22m2 effective working surface (440 X 496 mm) + 4 wheels diameter 125mm 2 fixed 2 castors one with brake TECHNICAL DATA Overall dimensions (including wheels and worktop) L774 xD546x H971 mm. Effective drawer dimensions L569 x D421 x H60 130 200 270 mm. LOAD PER DRAWER drawer 60 mm high 20 kg drawer 130 mm high 25 kg drawer 200 mm high 30 kg drawer 270 mm high 35 kg EFFECTIVE VOLUME PER DRAWER drawer 60 mm high 15 l drawer 130 mm high 30 l drawer 200 mm high 50 l drawer 270 mm high 65 l 1 drawer at a time Safety roller cabinets H JET.6GM3S JET+ 6-drawer roller cabinets 3 modules per drawer safety range Supplied with the SAFETY LOCK SYSTEM preventing simultaneous opening of several drawers 1 draweratatime. prevents the roller cabinet from tipping over. 6 drawers 15 modules distributed in the 60 and 130 mm wall drawers 4 drawer 60 mm wall 12 modules. 1 drawer130 mm wall 3 modules. 1 drawer 270 mm wall. The 200 and 270 mm drawers can also be fitted with modules. Supplied with 6 partitions for 60 mm drawers and 2 partitions for 130 mm drawers. Total load in the drawers 140 kg. Wall storage capacity 155 litres. Overall dimensions (including wheels and worktop) L.774 x D.546 x H.971 mm. Drawer useful size L.569 x D.421 x H.60 130 210 270 mm. 4 wheels 125 mm diameter 2 fixed 2 castors one with brake. H JET.8GM3S JET+ 8-drawer roller cabinets 3 modules per drawer safety range Supplied with the SAFETY LOCK SYSTEM preventing simultaneous opening of several drawers 1 draweratatime. prevents the roller cabinet from tipping over. 8 drawers 24 modules distributed in the 60 and 130 mm wall drawers 6 drawers 60 mm wall 18 modules. 2 drawers 130 mm wall 6 modules. The 200 and 270 mm drawers can also be fitted with modules. Supplied with 10 partitions for drawers 60 mm wall. Total load in the drawers 17 kg. Wall storage capacity 150 litres. Overall dimensions (including wheels and worktop) L.774 x D.546 x H.971 mm. Drawer useful size L.569 x D.421 x H.60 130 210 270 mm. 4 wheels 125 mm diameter 2 fixed 2 castors one with brake. Facom
