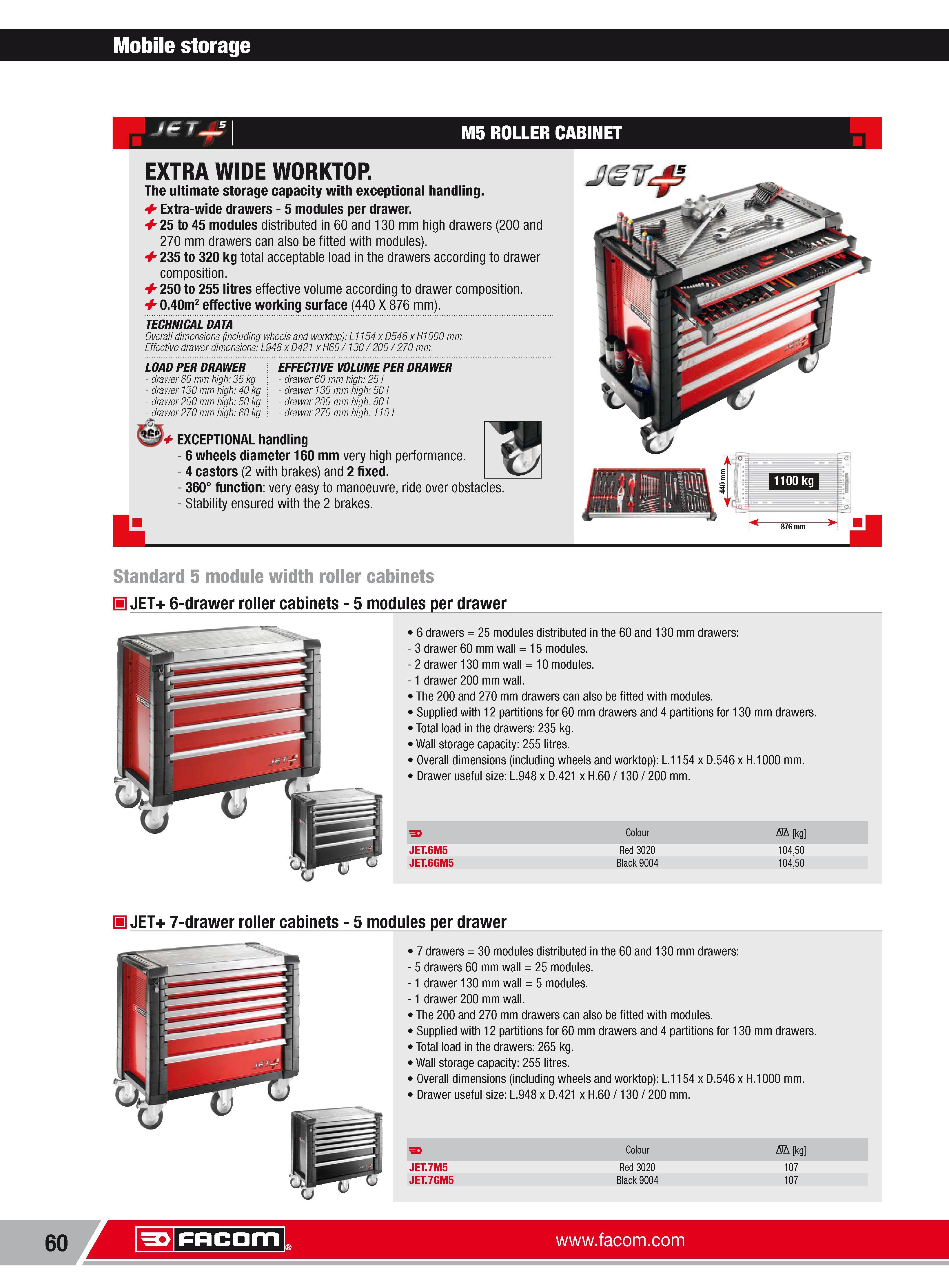

86 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.60

Каталог FACOM 2013 Инструмент Оборудование Стр. 60 0086 ENG Lab2u

Mobile storage M5 ROLLER CABINET EXTRA WIDE WORKTOP. The ultimate storage capacity with exceptional handling. Extra-wide drawers 5 modules per drawer. + 25 to 45 modules distributed in 60 and 130 mm high drawers (200 and 270 mm drawers can also be fitted with modules). + 235 to 320 kg total acceptable load in the drawers according to drawer composition. 250 to 255 litres effective volume according to drawer composition. + 0.40m2 effective working surface (440 X 876 mm). TECHNICAL DATA Overall dimensions (including wheels and worktop) L1154 x D546 x H1000 mm. Effective drawer dimensions L948 x D421 x H60 130 200 270 mm. LOAD PER DRAWER drawer 60 mm high 35 kg drawer 130 mm high 40 kg drawer 200 mm high 50 kg drawer 270 mm high 60 kg S) EFFECTIVE VOLUME PER DRAWER drawer 60 mm high 251 drawer 130 mm high 501 drawer 200 mm high 801 drawer 270 mm high 1101 + EXCEPTIONAL handling 6 wheels diameter 160 mm very high performance. 4 castors (2 with brakes) and 2 fixed. 360 function very easy to manoeuvre ride over obstacles. Stability ensured with the 2 brakes. Standard 5 module width roller cabinets JET+ 6-drawer roller cabinets 5 modules per drawer 6 drawers 25 modules distributed in the 60 and 130 mm drawers 3 drawer 60 mm wall 15 modules. 2 drawer 130 mm wall 10 modules. 1 drawer 200 mm wall. The 200 and 270 mm drawers can also be fitted with modules. Supplied with 12 partitions for 60 mm drawers and 4 partitions for 130 mm drawers. Total load in the drawers 235 kg. Wall storage capacity 255 litres. Overall dimensions (including wheels and worktop) L.1154x D.546 x H.1000 mm. Drawer useful size L.948 x D.421 x H.60 130 200 mm. Colour Aft kg JET.6M5 Red 3020 10450 JET.6GM5 Black 9004 10450 JET+ 7-drawer roller cabinets 5 modules per drawer 7 drawers 30 modules distributed in the 60 and 130 mm drawers 5 drawers 60 mm wall 25 modules. 1 drawer130 mm wall 5 modules. 1 drawer 200 mm wall. The 200 and 270 mm drawers can also be fitted with modules. Supplied with 12 partitions for 60 mm drawers and 4 partitions for 130 mm drawers. Total load in the drawers 265 kg. Wall storage capacity 255 litres. Overall dimensions (including wheels and worktop) L.1154x D.546 x H.1000 mm. Drawer useful size L.948 x D.421 x H.60 130 200 mm. 3 Colour Aft kg JET.7M5 Red 3020 107 JET.7GM5 Black 9004 107 60 Facom
