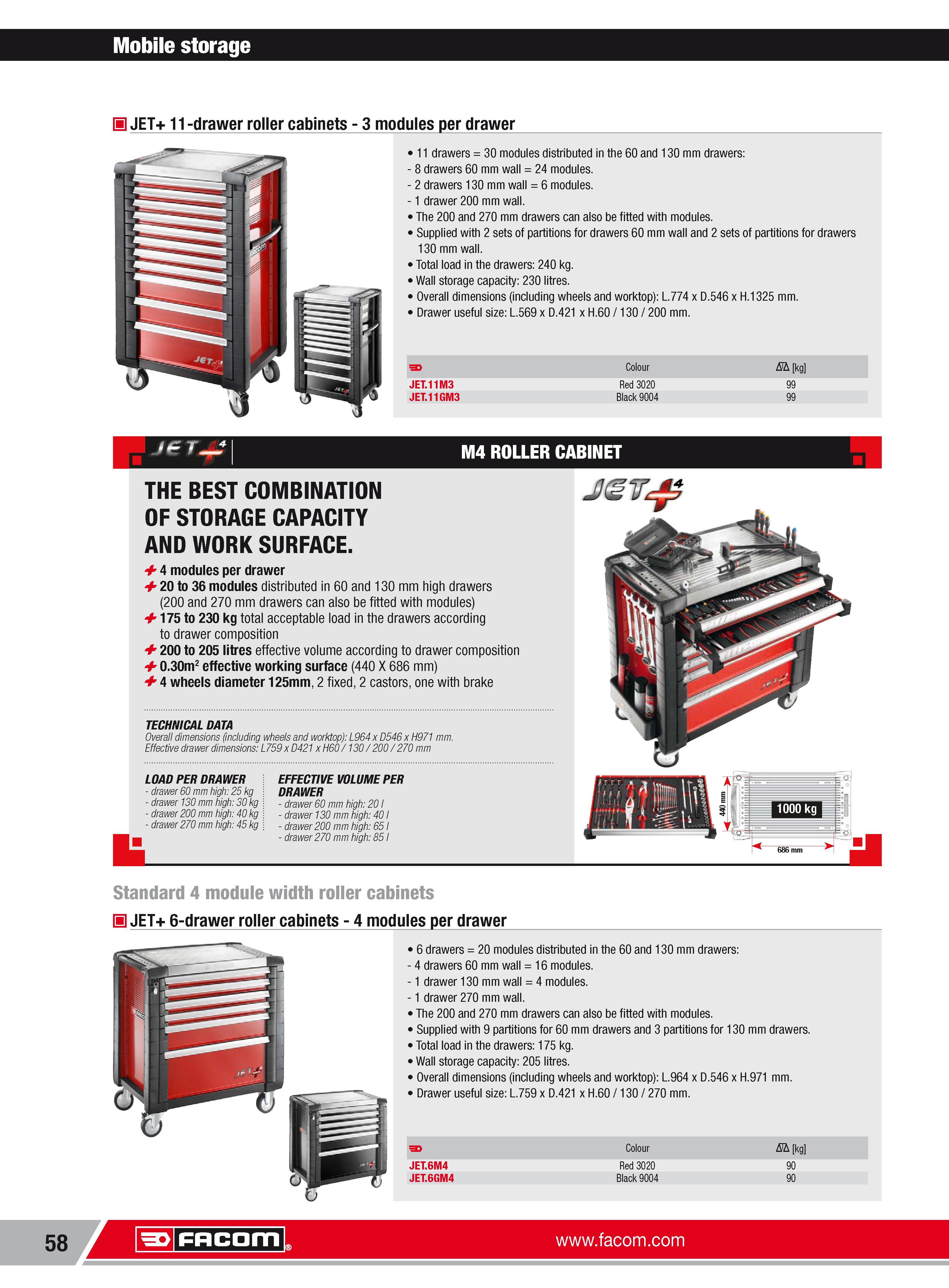

84 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.58

Каталог FACOM 2013 Инструмент Оборудование Стр. 58 0084 ENG Lab2u

Mobile storage JET+ 11-drawer roller cabinets 3 modules per drawer 11 drawers 30 modules distributed in the 60 and 130 mm drawers 8 drawers 60 mm wall 24 modules. 2 drawers 130 mm wall 6 modules. 1 drawer 200 mm wall. The 200 and 270 mm drawers can also be fitted with modules. Supplied with 2 sets of partitions for drawers 60 mm wall and 2 sets of partitions for drawers 130 mm wall. Total load in the drawers 240 kg. Wall storage capacity 230 litres. Overall dimensions (including wheels and worktop) L.774 x D.546 x H.1325 mm. Drawer useful size L.569 x D.421 x H.60 130 200 mm. 3 Colour AA kg JET.11M3 Red 3020 99 JET.11GM3 Black 9004 99 M4 ROLLER CABINET THE BEST COMBINATION OF STORAGE CAPACITY AND WORK SURFACE. + 4 modules per drawer + 20 to 36 modules distributed in 60 and 130 mm high drawers (200 and 270 mm drawers can also be fitted with modules) + 175 to 230 kg total acceptable load in the drawers according to drawer composition + 200 to 205 litres effective volume according to drawer composition 0.30m2 effective working surface (440 X 686 mm) 4 wheels diameter 125mm 2 fixed 2 castors one with brake TECHNICAL DATA Overall dimensions (including wheels and worktop) L964 x D546 x H971 mm. Effective drawer dimensions L759 x D421 x H60 130 200 270 mm LOAD PER DRAWER drawer 60 mm high 25 kg drawer 130 mm high 30 kg drawer 200 mm high 40 kg drawer 270 mm high 45 kg EFFECTIVE VOLUME PER DRAWER drawer 60 mm high 201 drawer 130 mm high 401 drawer 200 mm high 651 drawer 270 mm high 851 686 mm Standard 4 module width roller cabinets JET+ 6-drawer roller cabinets 4 modules per drawer 6 drawers 20 modules distributed in the 60 and 130 mm drawers 4 drawers 60 mm wall 16 modules. 1 drawer130 mm wall 4 modules. 1 drawer 270 mm wall. The 200 and 270 mm drawers can also be fitted with modules. Supplied with 9 partitions for 60 mm drawers and 3 partitions for 130 mm drawers. Total load in the drawers 175 kg. Wall storage capacity 205 litres. Overall dimensions (including wheels and worktop) L.964 x D.546 x H.971 mm. Drawer useful size L.759 x D.421 x H.60 130 270 mm. 3 Colour M kg JET.6M4 Red 3020 90 JET.6GM4 Black 9004 90 58 Facom
