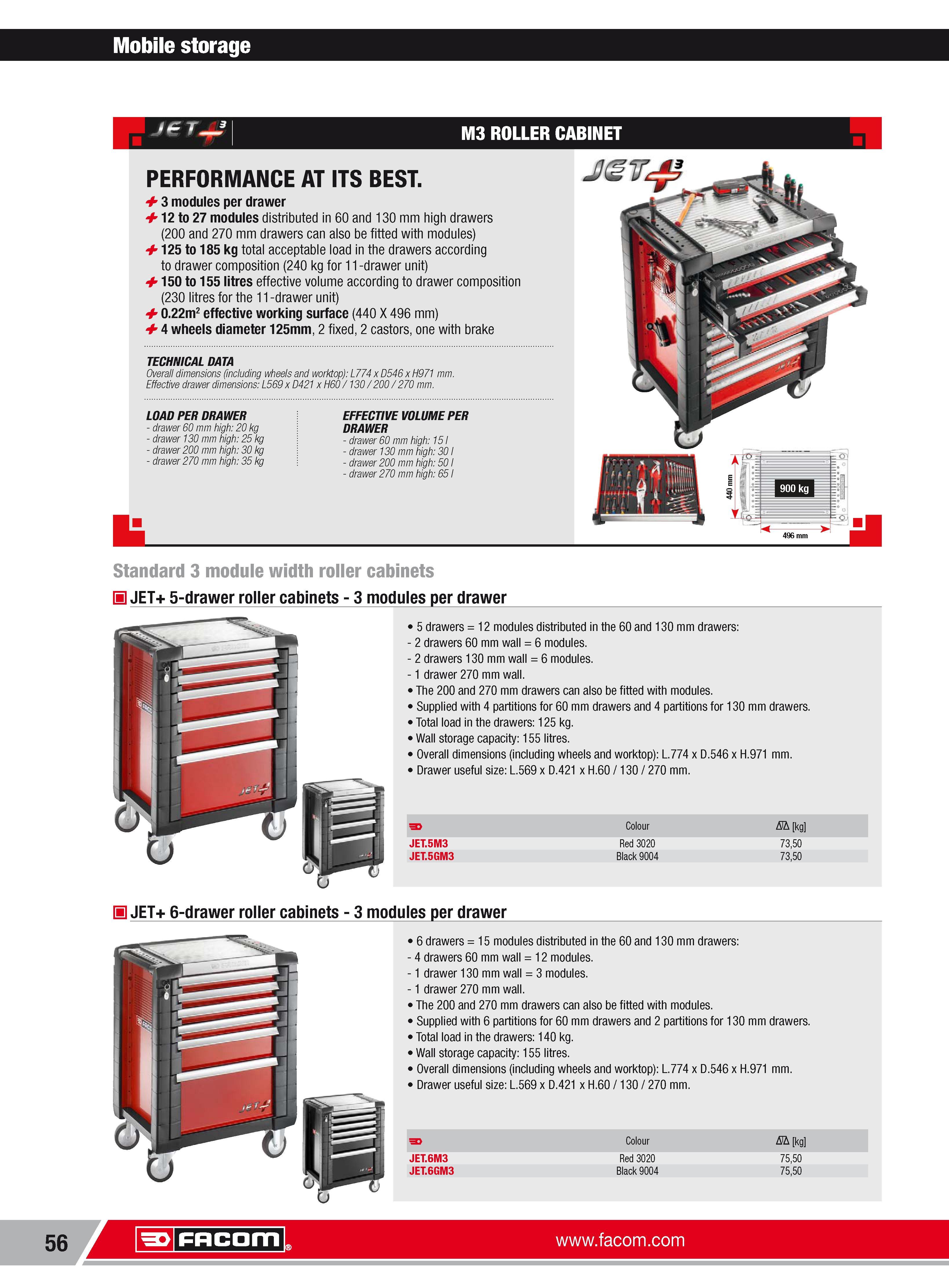

Mobile storage JT-J M3 ROLLER CABINET PERFORMANCE AT ITS BEST. 3 modules per drawer + 12 to 27 modules distributed in 60 and 130 mm high drawers (200 and 270 mm drawers can also be fitted with modules) + 125 to 185 kg total acceptable load in the drawers according to drawer composition (240 kg for 11-drawer unit) + 150 to 155 litres effective volume according to drawer composition (230 litres for the 11-drawer unit) 0.22m2 effective working surface (440 X 496 mm) 4 wheels diameter 125mm 2 fixed 2 castors one with brake TECHNICAL DATA Overall dimensions (including wheels and worktop) L774 x D546 x H971 mm. Effective drawer dimensions L569 x D421 x H60 130 200 270 mm. LOAD PER DRAWER drawer 60 mm high 20 kg drawer 130 mm high 25 kg drawer 200 mm high 30 kg drawer 270 mm high 35 kg EFFECTIVE VOLUME PER DRAWER drawer 60 mm high 15 l drawer 130 mm high 301 drawer 200 mm high 50 l drawer 270 mm high 651 496 mm Standard 3 module width roller cabinets JET+ 5-drawer roller cabinets 3 modules per drawer 5 drawers 12 modules distributed in the 60 and 130 mm drawers 2 drawers 60 mm wall 6 modules. 2 drawers 130 mm wall 6 modules. 1 drawer 270 mm wall. The 200 and 270 mm drawers can also be fitted with modules. Supplied with 4 partitions for 60 mm drawers and 4 partitions for 130 mm drawers. Total load in the drawers 125 kg. Wall storage capacity 155 litres. Overall dimensions (including wheels and worktop) L.774 x D.546 x H.971 mm. Drawer useful size L.569 x D.421 x H.60 130 270 mm. 3 Colour M kg JET.5M3 Red 3020 7350 JET.5GM3 Black 9004 7350 JET+ 6-drawer roller cabinets 3 modules per drawer 6 drawers 15 modules distributed in the 60 and 130 mm drawers 4 drawers 60 mm wall 12 modules. 1 drawer130 mm wall 3 modules. 1 drawer 270 mm wall. The 200 and 270 mm drawers can also be fitted with modules. Supplied with 6 partitions for 60 mm drawers and 2 partitions for 130 mm drawers. Total load in the drawers 140 kg. Wall storage capacity 155 litres. Overall dimensions (including wheels and worktop) L.774 x D.546 x H.971 mm. Drawer useful size L.569 x D.421 x H.60 130 270 mm. 3 Colour Aft kg JET.6M3 Red 3020 7550 JET.6GM3 Black 9004 7550 Facom
