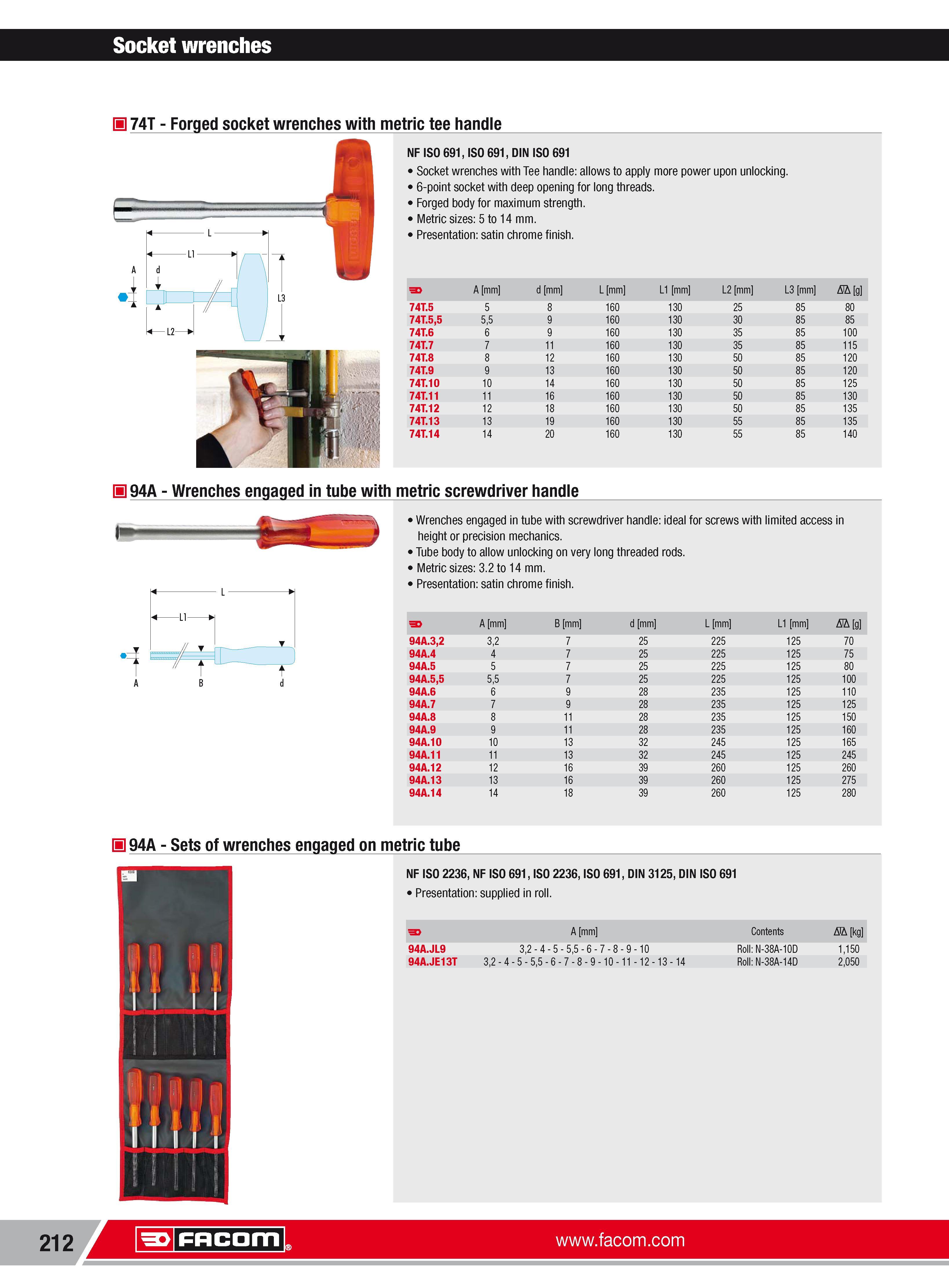

238 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.212

Каталог FACOM 2013 Инструмент Оборудование Стр. 212 0238 ENG Lab2u

Socket wrenches H 74T Forged socket wrenches with metric tee handle A d A II L2 NF ISO 691 ISO 691 DIN ISO 691 Socket wrenches with Tee handle allows to apply more power upon unlocking. 6-point socket with deep opening for long threads. Forged body for maximum strength. Metric sizes 5to14 mm. Presentation satin chrome finish. 3 A mm d mm L mm L1 mm L2 mm L3 mm Nh g 74T.5 5 8 160 130 25 85 80 74T.55 55 9 160 130 30 85 85 74T.6 6 9 160 130 35 85 100 74T.7 7 11 160 130 35 85 115 74T.8 8 12 160 130 50 85 120 74T.9 9 13 160 130 50 85 120 74T.10 10 14 160 130 50 85 125 74T.11 11 16 160 130 50 85 130 74T.12 12 18 160 130 50 85 135 74T.13 13 19 160 130 55 85 135 74T.14 14 20 160 130 55 85 140 H 94A Wrenches engaged in tube with metric screwdriver handle Wrenches engaged in tube with screwdriver handle ideal for screws with limited access in height or precision mechanics. Tube body to allow unlocking on very long threaded rods. Metric sizes 3.2 to 14 mm. Presentation satin chrome finish. 3 A mm B mm d mm L mm L1 mm Nh g 94A.32 32 7 25 225 125 70 94A.4 4 7 25 225 125 75 94A.5 5 7 25 225 125 80 94A.55 55 7 25 225 125 100 94A.6 6 9 28 235 125 110 94A.7 7 9 28 235 125 125 94A.8 8 11 28 235 125 150 94A.9 9 11 28 235 125 160 94A.10 10 13 32 245 125 165 94A.11 11 13 32 245 125 245 94A.12 12 16 39 260 125 260 94A.13 13 16 39 260 125 275 94A.14 14 18 39 260 125 280 H 94A Sets of wrenches engaged on metric tube NF ISO 2236 NF ISO 691 ISO 2236 ISO 691 DIN 3125 DIN ISO 691 Presentation supplied in roll. A mm Contents Nh kg 94A.JL9 32-4-5-55-6-7-8-9-10 Roll N-38A-10D 1150 94A.JE13T 32-4-5-55-6-7-8-9-10-11-12-13-14 Roll N-38A-14D 2050 9 f f l 11 i Til 212 Facom
