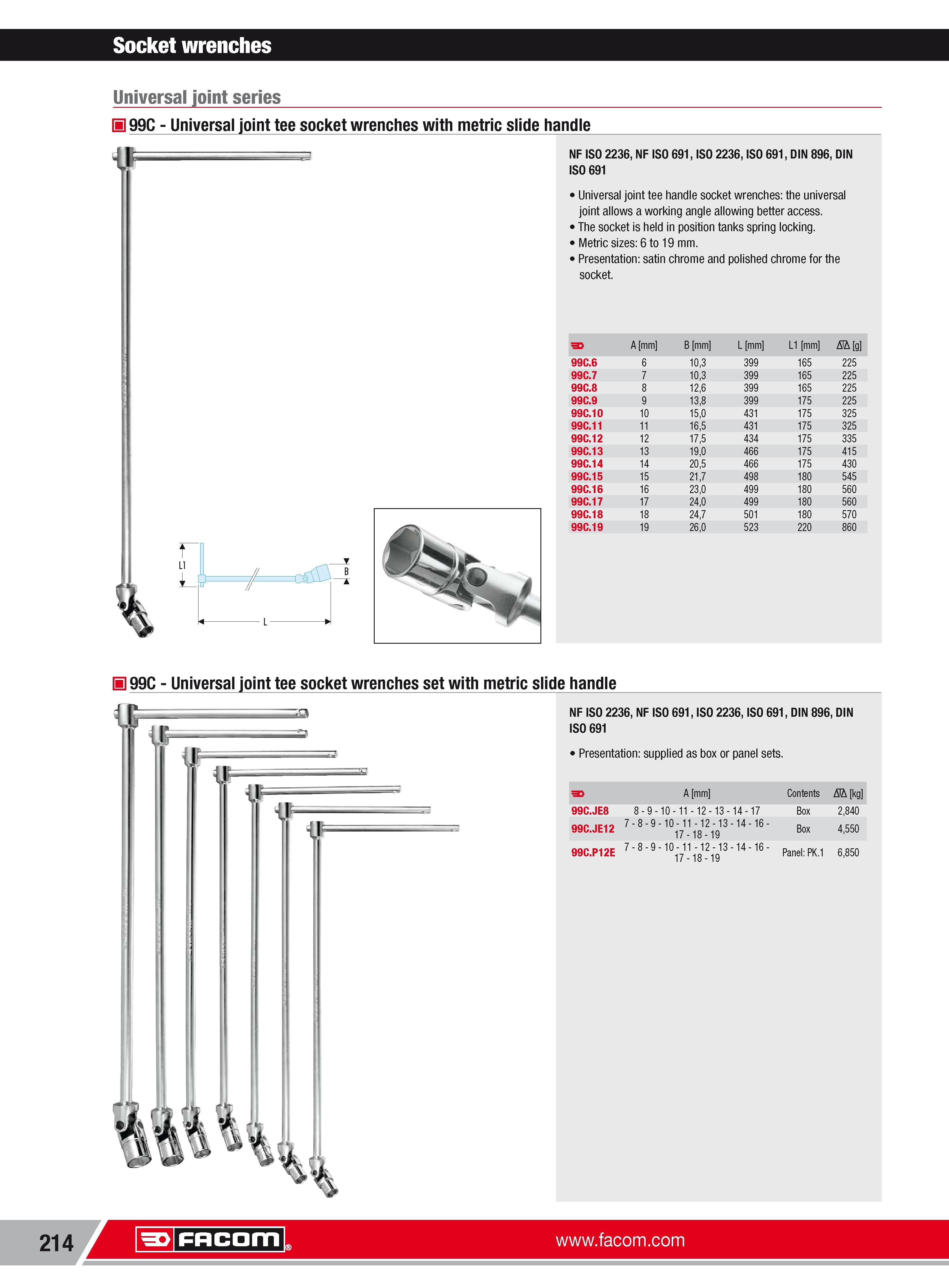

Socket wrenches Universal joint series H 99C Universal joint tee socket wrenches with metric slide handle NF ISO 2236 NF ISO 691 ISO 2236 ISO 691 DIN 896 DIN ISO 691 Universal joint tee handle socket wrenches the universal joint allows a working angle allowing better access. The socket is held in position tanks spring locking. Metric sizes 6 to 19 mm. Presentation satin chrome and polished chrome for the socket. A mm B mm L mm L1 mm NA g 99C.6 6 103 399 165 225 99C.7 7 103 399 165 225 99C.8 8 126 399 165 225 99C.9 9 138 399 175 225 99C.10 10 150 431 175 325 99C.11 11 165 431 175 325 99C.12 12 175 434 175 335 99C.13 13 190 466 175 415 99C.14 14 205 466 175 430 99C.15 15 217 498 180 545 99C.16 16 230 499 180 560 99C.17 17 240 499 180 560 99C.18 18 247 501 180 570 99C.19 19 260 523 220 860 A D 99C Universal joint tee socket wrenches set with metric slide handle NF ISO 2236 NF ISO 691 ISO 2236 ISO 691 DIN 896 DIN ISO 691 Presentation supplied as box or panel sets. 99C.JE8 99C.JE12 8-9-10-11-12-13-14-17 7-8-9-10-11-12-13-14-1617 18 19 7-8-9-10-11-12-13-14-1617 18 19 A mm Contents Nh kg Box 2840 Box 4550 99C.P12E Panel PK.1 6850 214 Facom
