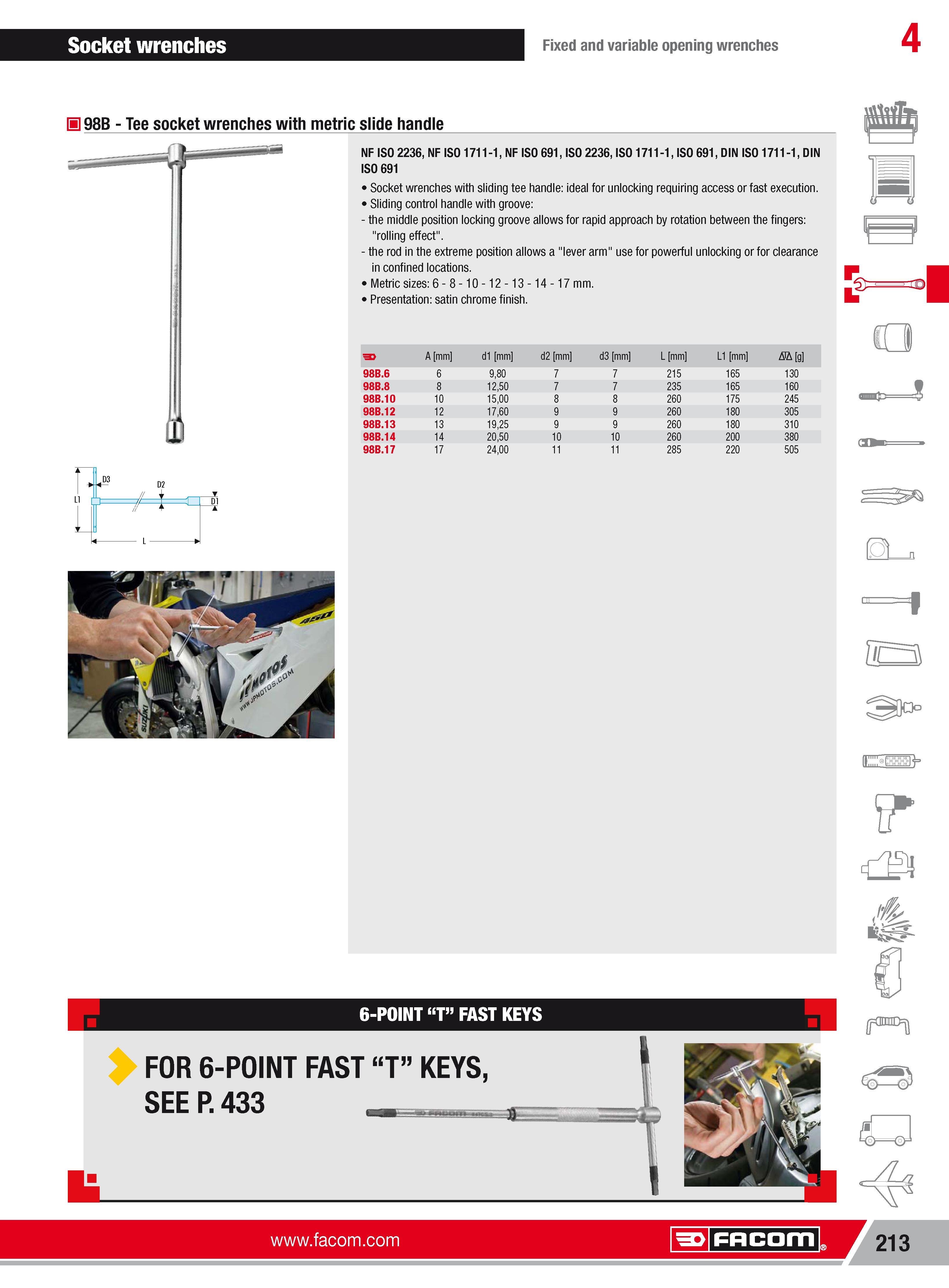

Socket wrenches Fixed and variable opening wrenches 4 H 98B Tee socket wrenches with metric slide handle NF ISO 2236 NF ISO 1711-1 NF ISO 691 ISO 2236 ISO 1711-1 ISO 691 DIN ISO 1711-1 DIN ISO 691 Socket wrenches with sliding tee handle ideal for unlocking requiring access or fast execution. Sliding control handle with groove the middle position locking groove allows for rapid approach by rotation between the fingers "rolling effect". the rod in the extreme position allows a "lever arm" use for powerful unlocking or for clearance in confined locations. Metric sizes 6 8 -10 -12 -13 -14 -17 mm. Presentation satin chrome finish. A mm d1 mm d2 mm d3 mm L mm L1 mm Nh g 98B.6 6 980 7 7 215 165 130 98B.8 8 1250 7 7 235 165 160 98B.10 10 1500 8 8 260 175 245 98B.12 12 1760 9 9 260 180 305 98B.13 13 1925 9 9 260 180 310 98B.14 14 2050 10 10 260 200 380 98B.17 17 2400 11 11 285 220 505 D3 D2 r -POINT T FAST KEYS SEE P. 433 L1 D1 L Facom
