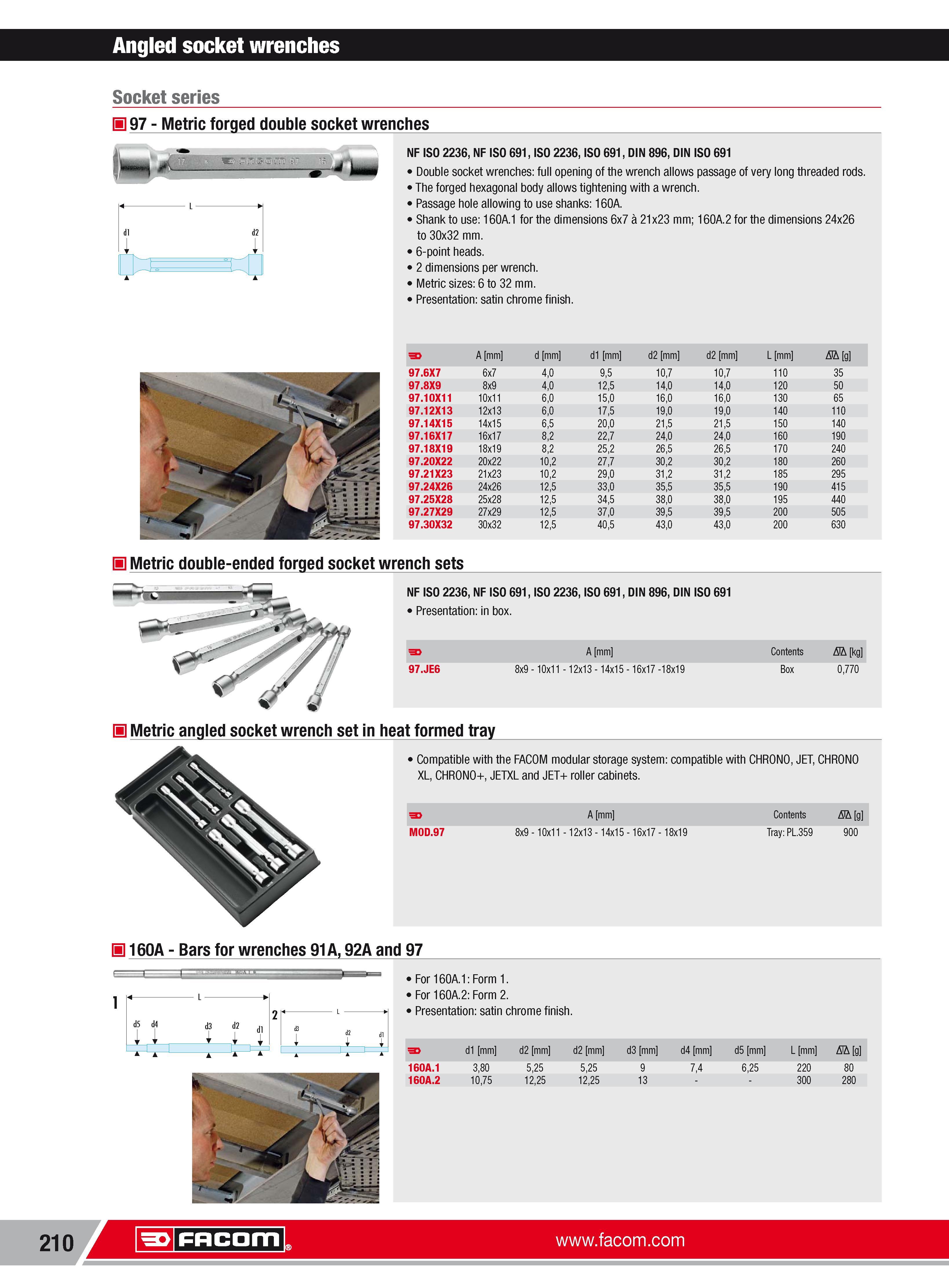

236 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.210

Каталог FACOM 2013 Инструмент Оборудование Стр. 210 0236 ENG Lab2u

Angled socket wrenches Socket series D 97 Metric forged double socket wrenches 5 NF ISO 2236 NF ISO 691 ISO 2236 ISO 691 DIN 896 DIN ISO 691 Double socket wrenches full opening of the wrench allows passage of very long threaded rods. The forged hexagonal body allows tightening with a wrench. Passage hole allowing to use shanks 160A. Shankto use 160A.1 for the dimensions 6x7 a 21x23 mm; 160A.2 for the dimensions 24x26 to 30x32 mm. 6-point heads. 2 dimensions per wrench. Metric sizes 6 to 32 mm. Presentation satin chrome finish. D Metric double-ended forged socket wrench sets A mm d mm d1 mm d2 mm d2 mm L mm Nh g 97.6X7 6x7 40 95 107 107 110 35 97.8X9 8x9 40 125 140 140 120 50 97.10X11 10x11 60 150 160 160 130 65 97.12X13 12x13 60 175 190 190 140 110 97.14X15 14x15 65 200 215 215 150 140 97.16X17 16x17 82 227 240 240 160 190 97.18X19 18x19 82 252 265 265 170 240 97.20X22 20x22 102 277 302 302 180 260 97.21X23 21x23 102 290 312 312 185 295 97.24X26 24x26 125 330 355 355 190 415 97.25X28 25x28 125 345 380 380 195 440 97.27X29 27x29 125 370 395 395 200 505 97.30X32 30x32 125 405 430 430 200 630 rench sets NF ISO 2236 NF ISO 691 ISO 2236 ISO 691 DIN 896 DIN ISO 691 Presentation in box. A mm Contents Nh kg 97.JE6 8x9 -10x11-12x13-14x15-16x17-18x19 Box 0770 H Metric angled socket wrench set in heat formed tray Compatible with the FACOM modular storage system compatible with CHRONO JET CHRONO XL CHR0N0+ JETXL and JET+ roller cabinets. MOD.97 A mm 8x9 10x11 12x13 14x15 16x17 18x19 Contents Nh g Tray PL.359 900 160A Bars for wrenches 91A 92A and 97 d3 X d2 X dl A For 160A.1 Form 1. For 160A.2 Form 2. Presentation satin chrome finish. 3 d1 mm d2 mm d2 mm d3 mm d4 mm d5 mm L mm Nh g 160A.1 380 525 525 9 74 625 220 80 160A.2 1075 1225 1225 13 300 280 210 1 2 Facom
