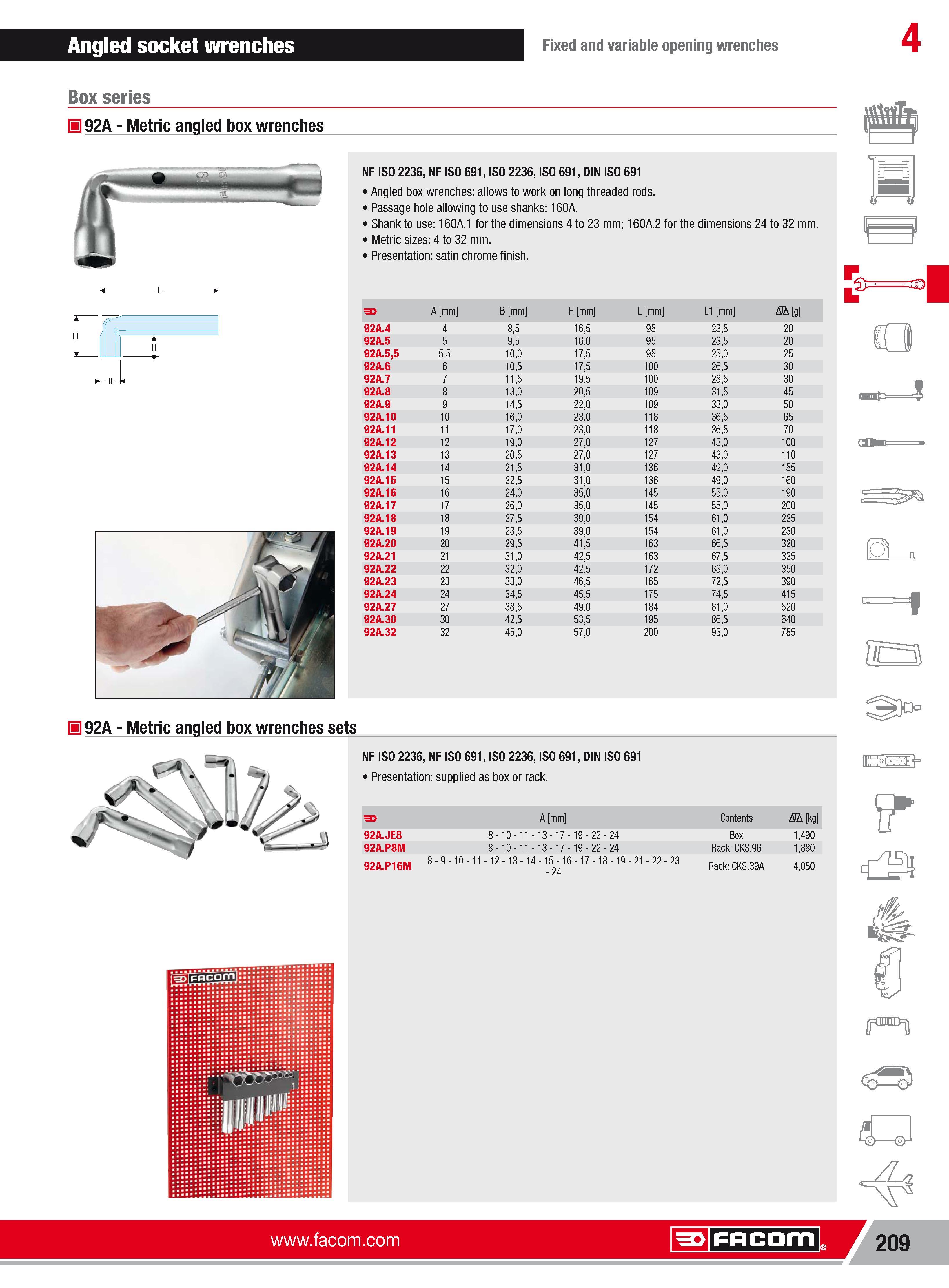

235 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.209

Каталог FACOM 2013 Инструмент Оборудование Стр. 209 0235 ENG Lab2u

Angled socket wrenches Fixed and variable opening wrenches 4 Box series H 92A Metric angled box wrenches L t LI 1 H T -B- NF ISO 2236 NF ISO 691 ISO 2236 ISO 691 DIN ISO 691 Angled box wrenches allows to work on long threaded rods. Passage hole allowing to use shanks 160A. Shankto use 160A.1 for the dimensions4to 23 mm; 160A.2 for the dimensions 24 to 32 mm. Metric sizes 4 to 32 mm. Presentation satin chrome finish. A mm B mm H mm L mm L1 mm Nh g 92A.4 4 85 165 95 235 20 92A.5 5 95 160 95 235 20 92A.55 55 100 175 95 250 25 92A.6 6 105 175 100 265 30 92A.7 7 115 195 100 285 30 92A.8 8 130 205 109 315 45 92A.9 9 145 220 109 330 50 92A.10 10 160 230 118 365 65 92A.11 11 170 230 118 365 70 92A.12 12 190 270 127 430 100 92A.13 13 205 270 127 430 110 92A.14 14 215 310 136 490 155 92A.15 15 225 310 136 490 160 92A.16 16 240 350 145 550 190 92A.17 17 260 350 145 550 200 92A.18 18 275 390 154 610 225 92A.19 19 285 390 154 610 230 92A.20 20 295 415 163 665 320 92A.21 21 310 425 163 675 325 92A.22 22 320 425 172 680 350 92A.23 23 330 465 165 725 390 92A.24 24 345 455 175 745 415 92A.27 27 385 490 184 810 520 92A.30 30 425 535 195 865 640 92A.32 32 450 570 200 930 785 H 92A Metric angled box wrenches sets NF ISO 2236 NF ISO 691 ISO 2236 ISO 691 DIN ISO 691 Presentation supplied as box or rack. iP A mm Contents Nh kg 92A.JE8 8-10-11-13-17-19-22-24 Box 1490 92A.P8M 8-10-11-13-17-19-22-24 Rack CKS.96 1880 92A.P16M 8-9-10-11-12-13-14-15-16-17-18-19-21-22-23 -24 Rack CKS.39A 4050 Facom 209
