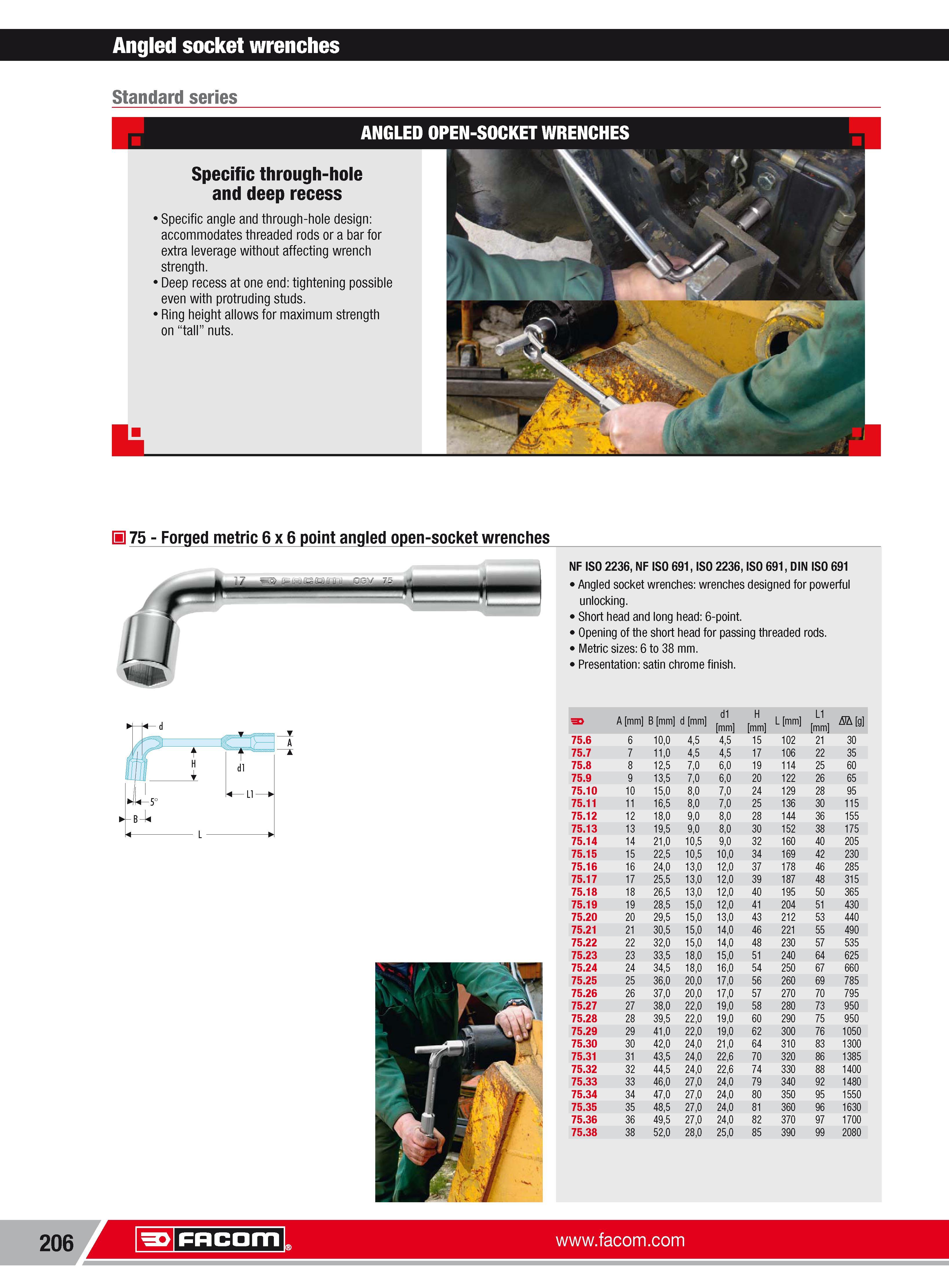

232 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.206

Каталог FACOM 2013 Инструмент Оборудование Стр. 206 0232 ENG Lab2u

Angled socket wrenches Standard series H 75 Forged metric 6 x 6 point angled open-socket wrenches NF ISO 2236 NF ISO 691 ISO 2236 ISO 691 DIN ISO 691 Angled socket wrenches wrenches designed for powerful unlocking. Short head and long head 6-point. Opening of the short head for passing threaded rods. Metric sizes 6 to 38 mm. Presentation satin chrome finish. A mm B mm d mm d1 mm H mm L mm L1 mm AA g 75.6 6 100 45 45 15 102 21 30 75.7 7 110 45 45 17 106 22 35 75.8 8 125 70 60 19 114 25 60 75.9 9 135 70 60 20 122 26 65 75.10 10 150 80 70 24 129 28 95 75.11 11 165 80 70 25 136 30 115 75.12 12 180 90 80 28 144 36 155 75.13 13 195 90 80 30 152 38 175 75.14 14 210 105 90 32 160 40 205 75.15 15 225 105 100 34 169 42 230 75.16 16 240 130 120 37 178 46 285 75.17 17 255 130 120 39 187 48 315 75.18 18 265 130 120 40 195 50 365 75.19 19 285 150 120 41 204 51 430 75.20 20 295 150 130 43 212 53 440 75.21 21 305 150 140 46 221 55 490 75.22 22 320 150 140 48 230 57 535 75.23 23 335 180 150 51 240 64 625 75.24 24 345 180 160 54 250 67 660 75.25 25 360 200 170 56 260 69 785 75.26 26 370 200 170 57 270 70 795 75.27 27 380 220 190 58 280 73 950 75.28 28 395 220 190 60 290 75 950 75.29 29 410 220 190 62 300 76 1050 75.30 30 420 240 210 64 310 83 1300 75.31 31 435 240 226 70 320 86 1385 75.32 32 445 240 226 74 330 88 1400 75.33 33 460 270 240 79 340 92 1480 75.34 34 470 270 240 80 350 95 1550 75.35 35 485 270 240 81 360 96 1630 75.36 36 495 270 240 82 370 97 1700 75.38 38 520 280 250 85 390 99 2080 206 Facom
