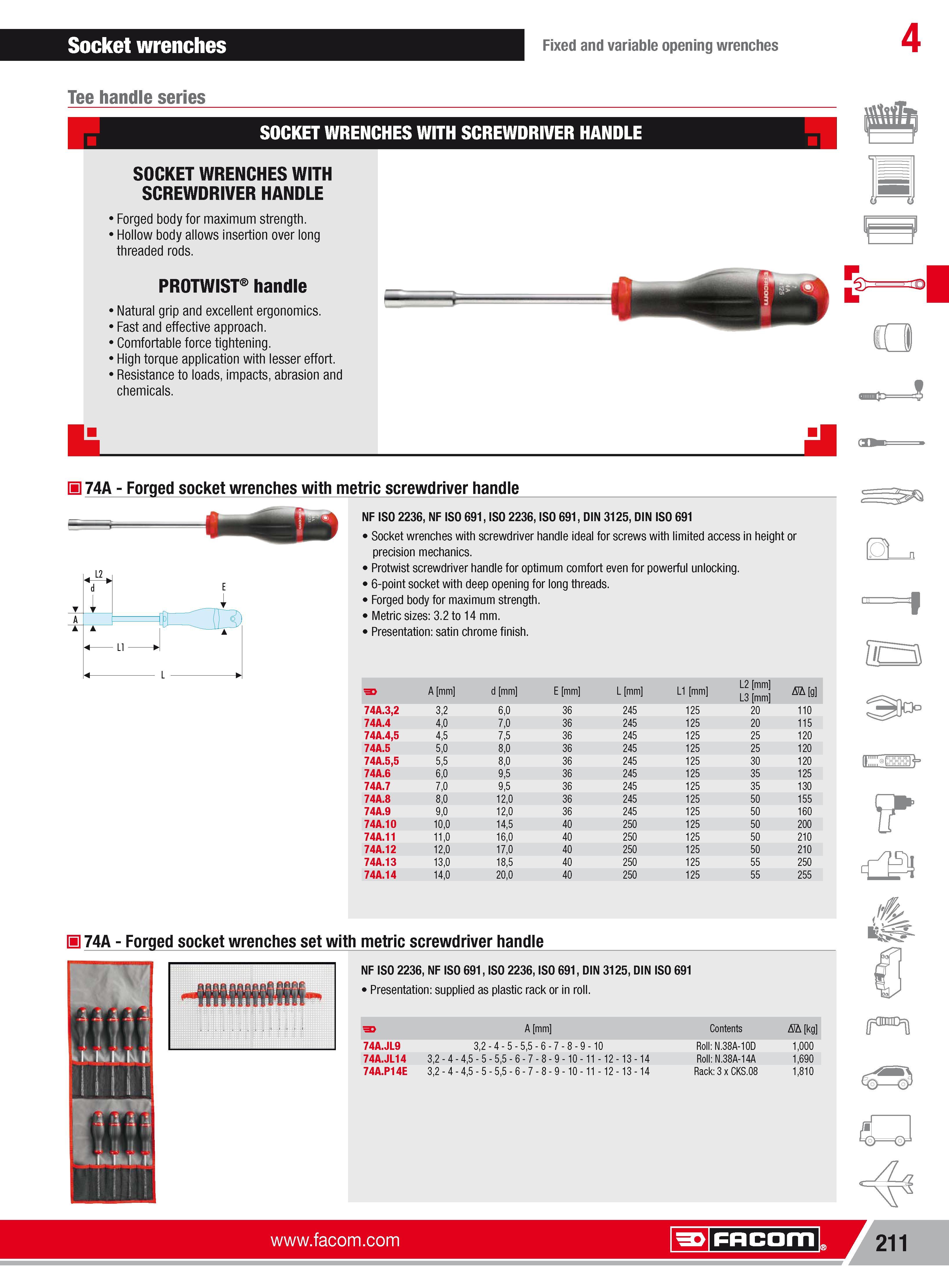

237 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.211

Каталог FACOM 2013 Инструмент Оборудование Стр. 211 0237 ENG Lab2u

Socket wrenches Fixed and variable opening wrenches 4 Tee handle series d SOCKET WRENCHES WITH SCREWDRIVER HANDLE SOCKET WRENCHES WITH SCREWDRIVER HANDLE Forged body for maximum strength. Hollow body allows insertion over long threaded rods. PROTWIST handle Natural grip and excellent ergonomics. Fast and effective approach. Comfortable force tightening. High torque application with lesser effort. Resistance to loads impacts abrasion and chemicals. b 4 II74A Forged socket wrenches with metric screwdriver handle r L2 A NF ISO 2236 NF ISO 691 ISO 2236 ISO 691 DIN 3125 DIN ISO 691 Socket wrenches with screwdriver handle ideal for screws with limited access in height or precision mechanics. Protwist screwdriver handle for optimum comfort even for powerful unlocking. 6-point socket with deep opening for long threads. Forged body for maximum strength. Metric sizes 3.2 to 14 mm. Presentation satin chrome finish. A mm d mm E mm L mm L1 mm L2 mm L3 mm Sh g 74A.32 32 60 36 245 125 20 110 74A.4 40 70 36 245 125 20 115 74A.45 45 75 36 245 125 25 120 74A.5 50 80 36 245 125 25 120 74A.55 55 80 36 245 125 30 120 74A.6 60 95 36 245 125 35 125 74A.7 70 95 36 245 125 35 130 74A.8 80 120 36 245 125 50 155 74A.9 90 120 36 245 125 50 160 74A.10 100 145 40 250 125 50 200 74A.11 110 160 40 250 125 50 210 74A.12 120 170 40 250 125 50 210 74A.13 130 185 40 250 125 55 250 74A.14 140 200 40 250 125 55 255 H 74A Forged socket wrenches set with metric screwdriver handle NF ISO 2236 NF ISO 691 ISO 2236 ISO 691 DIN 3125 DIN ISO 691 Presentation supplied as plastic rack or in roll. A mm Contents AIA kg 74A.JL9 32 -4-5 -55-6-7-8-9-10 Roll N.38A-10D 1000 74A.JL14 32 -4- 45 -5- 55 6-7-8-9-10-11-12-13-14 Roll N.38A-14A 1690 74A.P14E 32-4-45-5-55-6-7-8-9-10-11-12-13-14 Rack 3 x CKS.( 1810 Facom 211 E L1 L Facom
