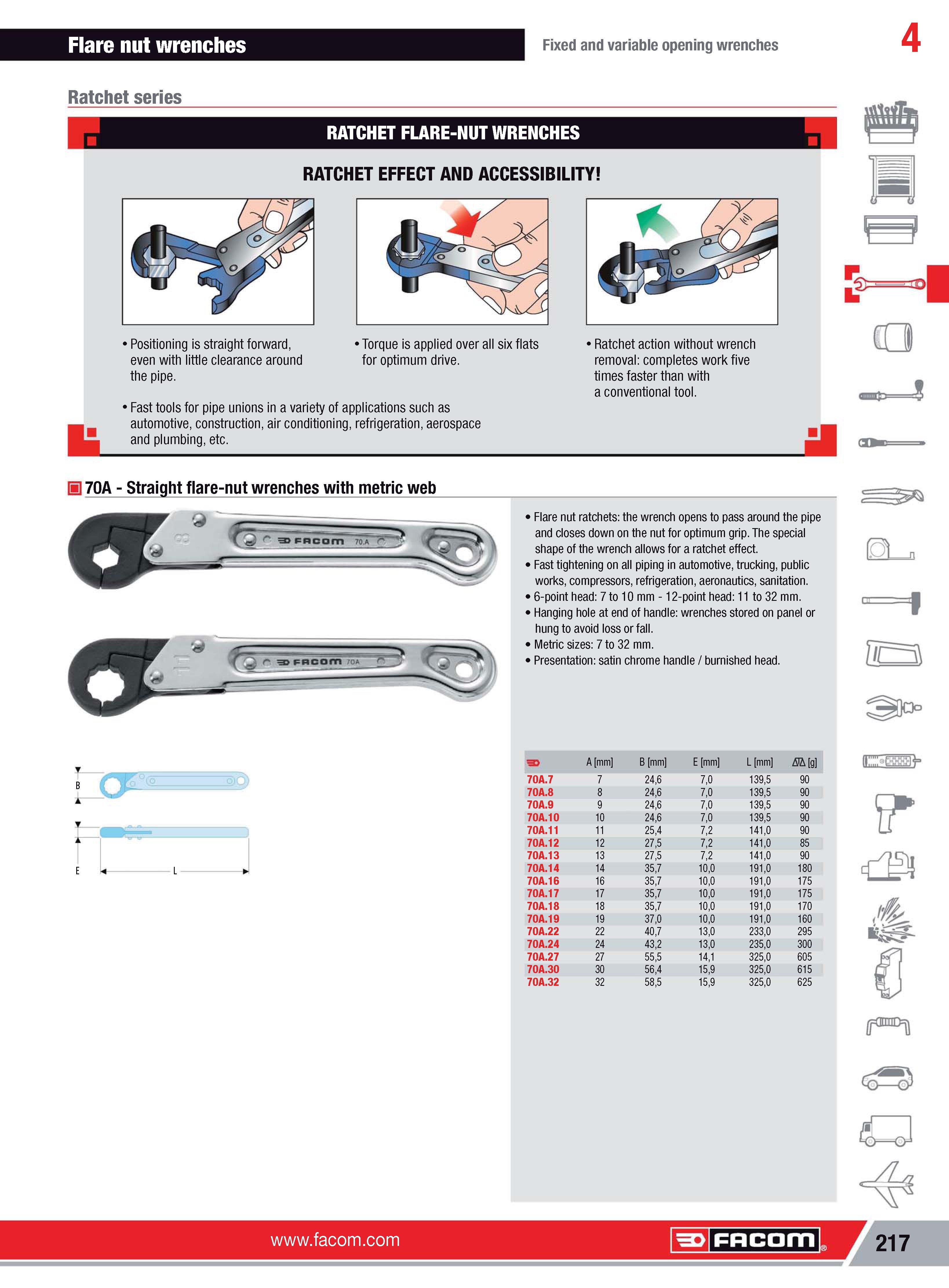

Flare nut wrenches Fixed and variable opening wrenches 4 Ratchet series ill H 70A Straight flare-nut wrenches with metric web Flare nut ratchets the wrench opens to pass around the pipe and closes down on the nut for optimum grip. The special shape of the wrench allows for a ratchet effect. Fast tightening on all piping in automotive trucking public works compressors refrigeration aeronautics sanitation. 6-point head 7to10mm-12-point head 11to32 mm. Hanging hole at end of handle wrenches stored on panel or hung to avoid loss or fall. Metric sizes 7 to 32 mm. Presentation satin chrome handle burnished head. A mm B mm E mm L mm 70A.7 70A.8 70A.9 70A.10 70A.11 70A.12 70A.13 70A.14 70A.16 70A.17 70A.18 70A.19 70A.22 70A.24 70A.27 70A.30 70A.32 7 8 9 10 11 12 13 14 16 17 18 19 22 24 27 30 32 24.6 24.6 24.6 24.6 25.4 27.5 27.5 35.7 35.7 35.7 35.7 370 40.7 432 55.5 56.4 58.5 7.0 7.0 7.0 7.0 7.2 7.2 7.2 10.0 100 100 100 100 13.0 13.0 14.1 15.9 15.9 139.5 139.5 139.5 139.5 141.0 141.0 141.0 191.0 191.0 191.0 191.0 191.0 233.0 235.0 325.0 325.0 325.0 .V. g 90 90 90 90 90 85 90 180 175 175 170 160 295 300 605 615 625 M 217 RATCHET FLARE-NUT WRENCHES RATCHET EFFECT AND ACCESSIBILITY Positioning is straight forward Torque is applied over all six flats Ratchet action without wrench even with little clearance around for optimum drive. removal completes work five the pipe. times faster than with a conventional tool. 1 Fast tools for pipe unions in a variety of applications such as automotive construction air conditioning refrigeration aerospace and plumbing etc. Facom
