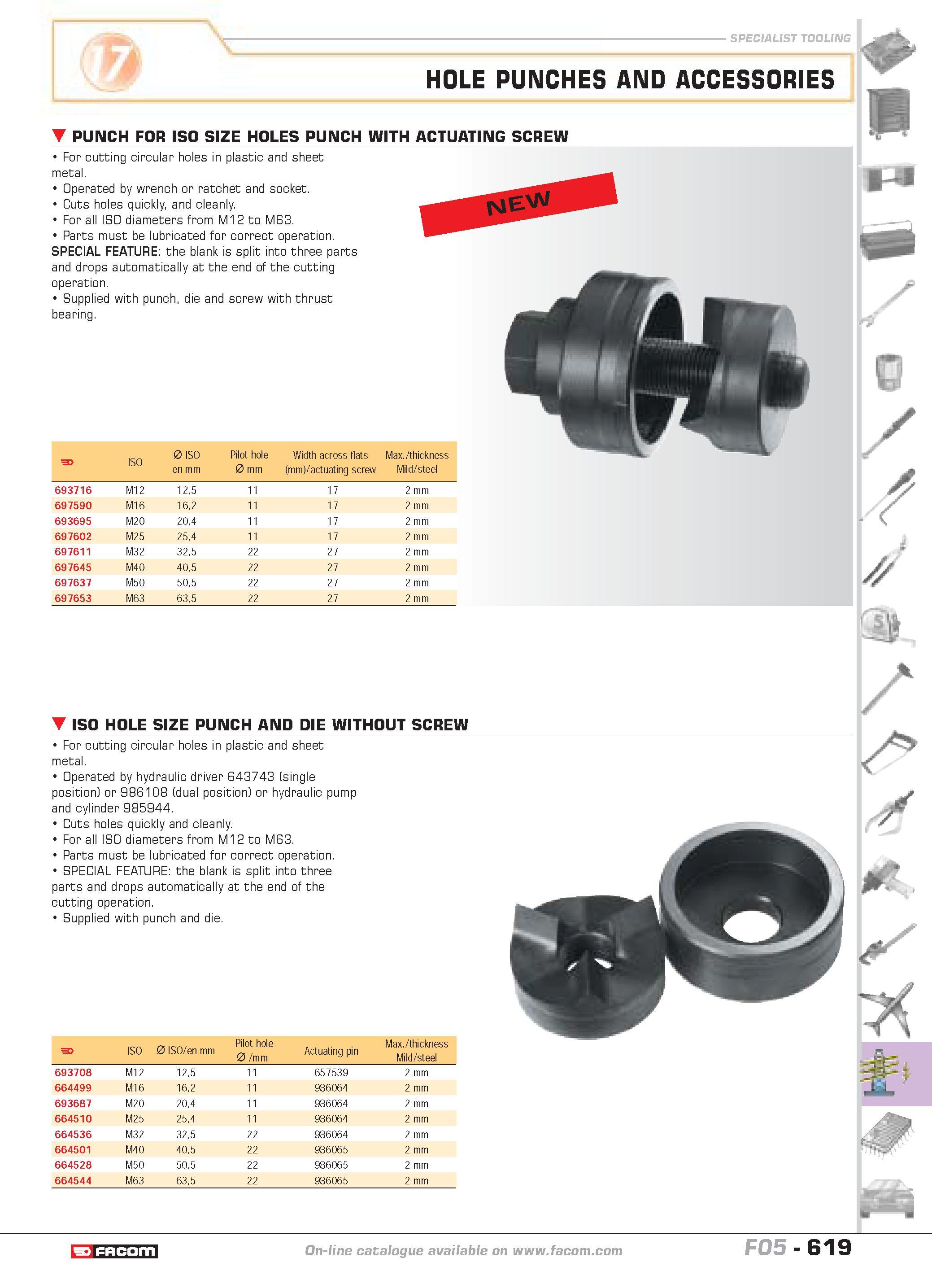

HOLE PUNCHES AND ACCESSORIES PUNCH FOR ISO SIZE HOLES PUNCH WITH ACTUATING SCREW For cutting circular holes in plastic and sheet metal. Operated by wrench or ratchet and socket. Cuts holes quickly and cleanly. For all ISO diameters from M12 to M63. Parts must be lubricated for correct operation. SPECIAL FEATURE the blank is split into three parts and drops automatically at the end of the cutting operation. Supplied with punch die and screw with thrust bearing. F ISO 0 ISO en mm Pilot hole 0 mm Width across flats (mm) actuating screw Max. thickness Mild steel 693716 M12 125 11 17 2 mm 697590 M16 162 11 17 2 mm 693695 M20 204 11 17 2 mm 697602 M25 254 11 17 2 mm 697611 M32 325 22 27 2 mm 697645 M40 405 22 27 2 mm 697637 M50 505 22 27 2 mm 697653 M63 635 22 27 2 mm ISO HOLE SIZE PUNCH AND DIE WITHOUT SCREW For cutting circular holes in plastic and sheet metal. Operated by hydraulic driver 643743 (single position) or 986108 (dual position) or hydraulic pump and cylinder 985944. Cuts holes quickly and cleanly. For all ISO diameters from M12 to M63. Parts must be lubricated for correct operation. SPECIAL FEATURE the blank is split into three parts and drops automatically at the end of the cutting operation. Supplied with punch and die. F ISO 0 ISO en mm Pilot hole 0 mm Actuating pin Max. thickness Mild steel 693708 M12 125 11 657539 2 mm 664499 M16 162 11 986064 2 mm 693687 M20 204 11 986064 2 mm 664510 M25 254 11 986064 2 mm 664536 M32 325 22 986064 2 mm 664501 M40 405 22 986065 2 mm 664528 M50 505 22 986065 2 mm 664544 M63 635 22 986065 2 mm catalogue FACOM F05- 619 K 2sA V o Tt '
