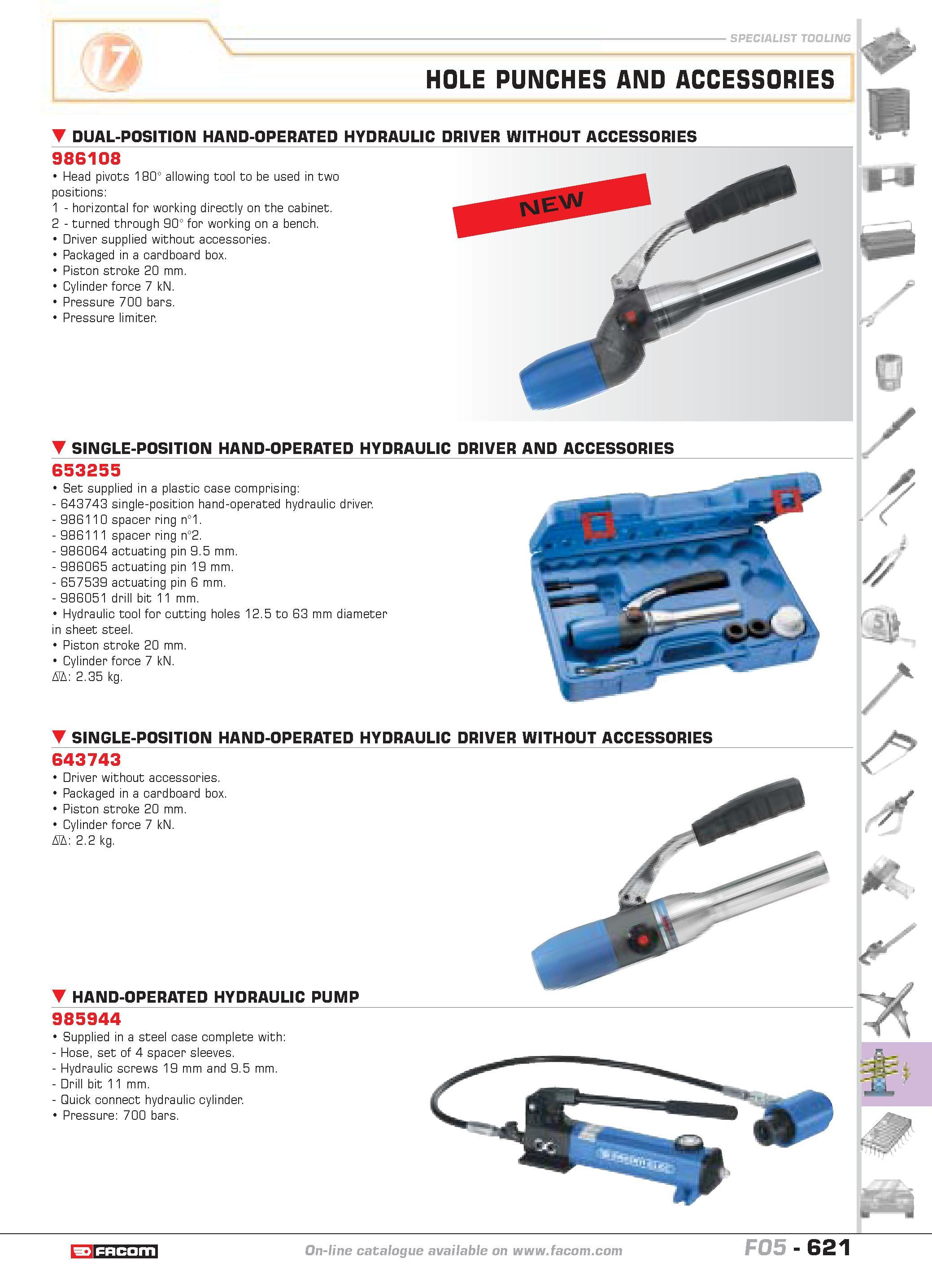

SPECIALIST TOOLING I HOLE PUNCHES AND ACCESSORIES DUAL-POSITION HAND-OPERATED HYDRAULIC DRIVER WITHOUT ACCESSORIES 986108 Head pivots 180 allowing tool to be used in two positions 1 horizontal for working directly on the cabinet. 2 turned through 90 for working on a bench. Driver supplied without accessories. Packaged in a cardboard box. Piston stroke 20 mm. Cylinder force 7 kN. Pressure 700 bars. Pressure limiter. SINGLE-POSITION HAND-OPERATED HYDRAULIC DRIVER AND ACCESSORIES 653255 Set supplied in a plastic case comprising 643743 single-position hand-operated hydraulic driver. 986110 spacer ring n1. 986111 spacer ring n2. 986064 actuating pin 9.5 mm. 986065 actuating pin 19 mm. 657539 actuating pin 6 mm. 986051 drill bit 11 mm. Hydraulic tool for cutting holes 12.5 to 63 mm diameter in sheet steel. Piston stroke 20 mm. Cylinder force 7 kN. D 2.35 kg. SINGLE-POSITION HAND-OPERATED HYDRAULIC DRIVER WITHOUT ACCESSORIES 643743 Driver without accessories. Packaged in a cardboard box. Piston stroke 20 mm. Cylinder force 7 kN. D 2.2 kg. HAND-OPERATED HYDRAULIC PUMP 985944 Supplied in a steel case complete with Hose set of 4 spacer sleeves. Hydraulic screws 19 mm and 9.5 mm. Drill bit 11 mm. Quick connect hydraulic cylinder. Pressure 700 bars. catalogue FACOM F05 621
