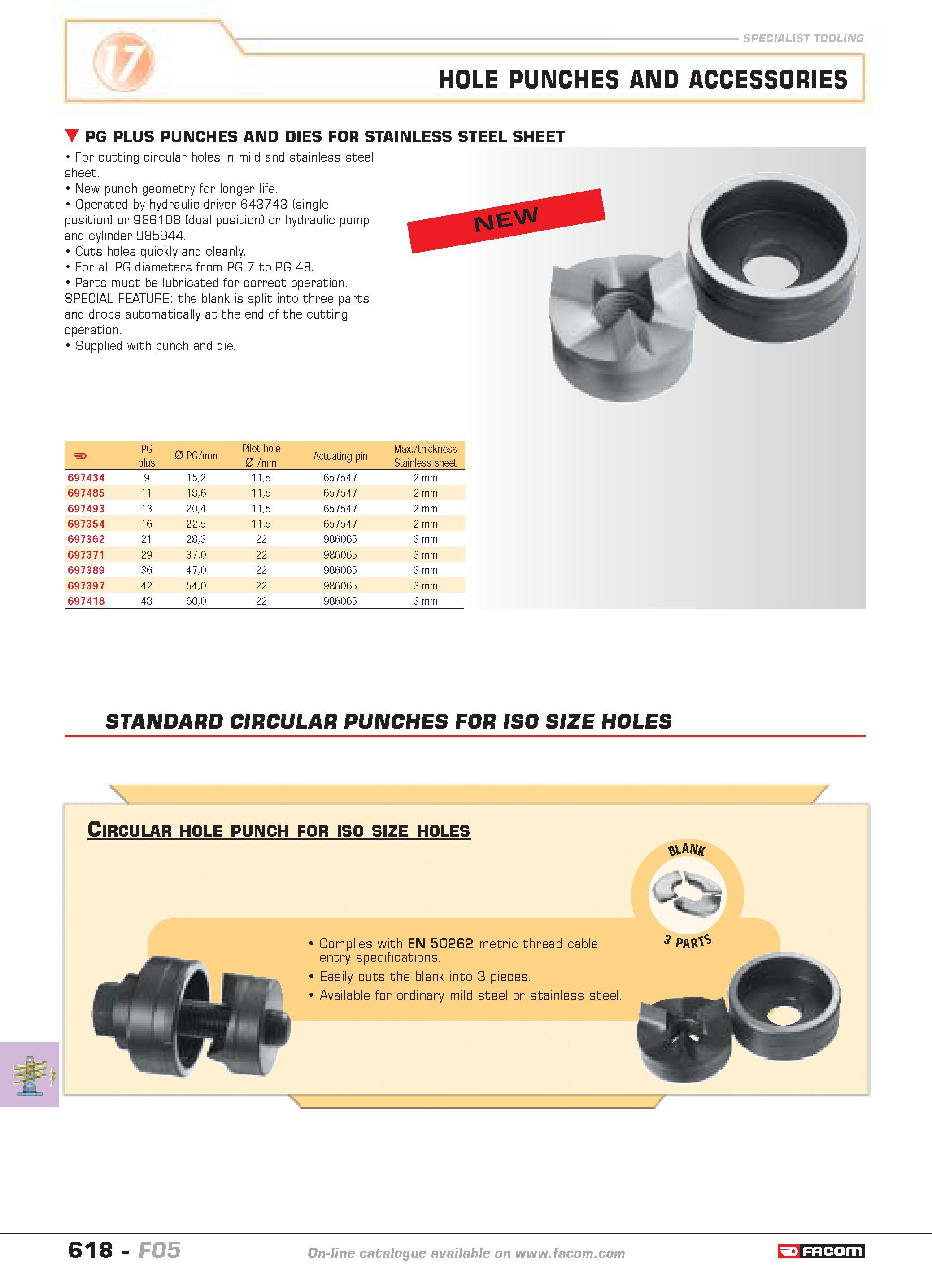

SPECIALIST TOOLING HOLE PUNCHES AND ACCESSORIES PG PLUS PUNCHES AND DIES FOR STAINLESS STEEL SHEET For cutting circular holes in mild and stainless steel sheet. New punch geometry for longer life. Operated by hydraulic driver 643743 (single position) or 986108 (dual position) or hydraulic pump and cylinder 985944. Cuts holes quickly and cleanly. For all PG diameters from PG 7 to PG 48. Parts must be lubricated for correct operation. SPECIAL FEATURE the blank is split into three parts and drops automatically at the end of the cutting operation. Supplied with punch and die. F PG plus 0 PG mm Pilot hole 0 mm Actuating pin Max. thickness Stainless sheet 697434 9 152 115 657547 2 mm 697485 11 186 115 657547 2 mm 697493 13 204 115 657547 2 mm 697354 16 225 115 657547 2 mm 697362 21 283 22 986065 3 mm 697371 29 370 22 986065 3 mm 697389 36 470 22 986065 3 mm 697397 42 540 22 986065 3 mm 697418 48 600 22 986065 3 mm STANDARD CIRCULAR PUNCHES FOR ISO SIZE HOLES Circular hole punch for iso size holes Complies with EN 50262 metric thread cable entry specifications. Easily cuts the blank into 3 pieces. Available for ordinary mild steel or stainless steel. x; Z. 3 PA(tfs W 618 F05 catalogue catalogue FACOM F05
