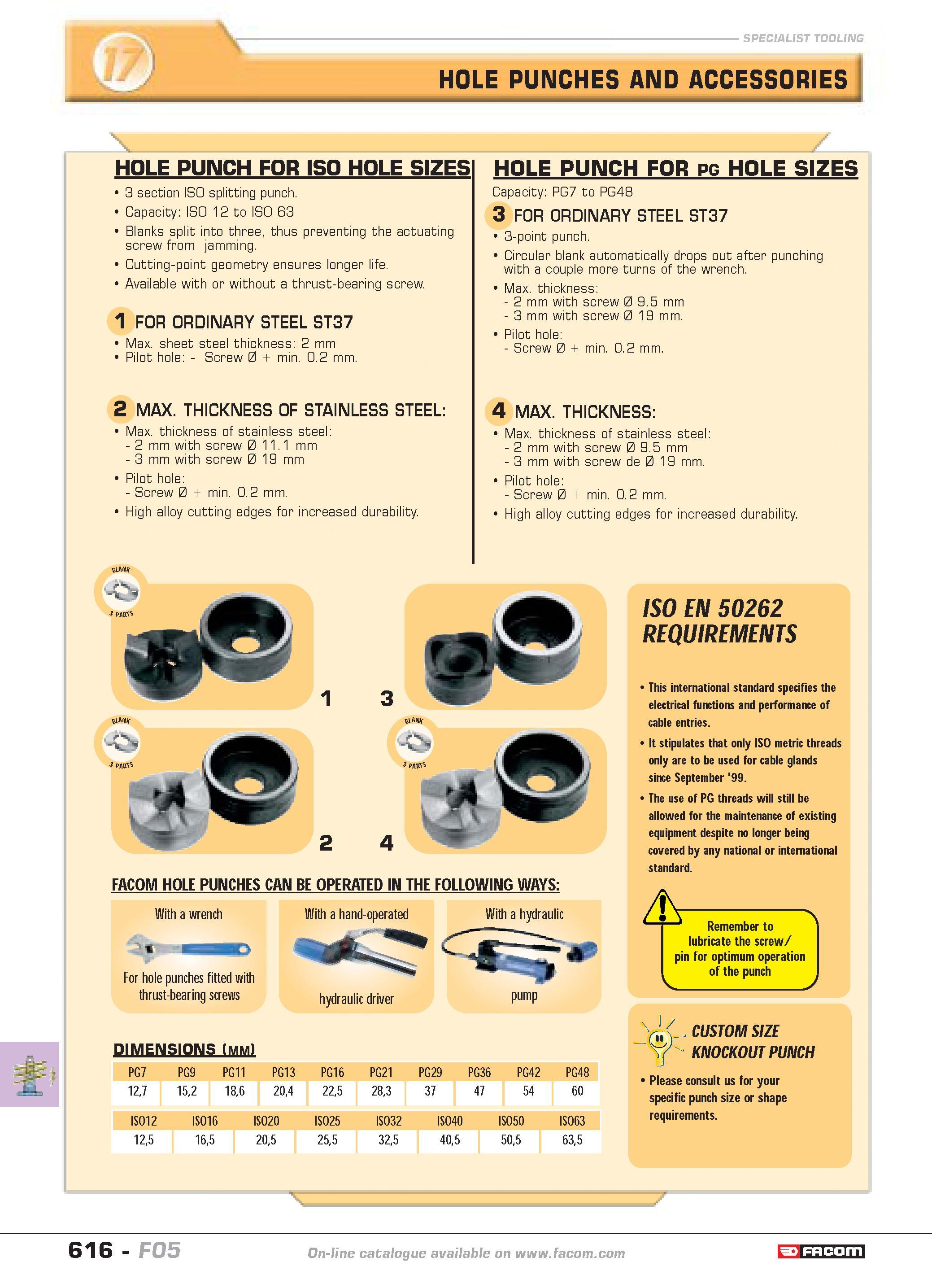

SPECIALIST TOOLING HOLE PUNCHES AND ACCESSORIES HOLE PUNCH FOR ISO HOLE SIZES 3 section ISO splitting punch. Capacity ISO 12 to ISO 63 Blanks split into three thus preventing the actuating screw from jamming. Cutting-point geometry ensures longer life. Available with or without a thrust-bearing screw. 1 FOR ORDINARY STEEL ST37 Max. sheet steel thickness 2 mm Pilot hole Screw 0 min. 0.2 mm. 2 MAX. THICKNESS OF STAINLESS STEEL Max. thickness of stainless steel 2 mm with screw 0 11.1 mm 3 mm with screw 0 19 mm Pilot hole Screw 0 min. 0.2 mm. High alloy cutting edges for increased durability. HOLE PUNCH FOR PG HOLE SIZES Capacity PG7 to PG48 3 FOR ORDINARY STEEL ST37 3-point punch. Circular blank automatically drops out after punching with a couple more turns of the wrench. Max. thickness 2 mm with screw 0 9.5 mm 3 mm with screw 0 19 mm. Pilot hole Screw 0 min. 0.2 mm. 4 MAX. THICKNESS Max. thickness of stainless steel 2 mm with screw 0 9.5 mm 3 mm with screw de 0 19 mm. Pilot hole Screw 0 min. 0.2 mm. High alloy cutting edges for increased durability. V 4 V FACOM HOLE PUNCHES CAN BE OPERATED IN THE FOLLOWING WAYS With a wrench For hole punches fitted with thrust-bearing screws DIMENSIONS (mm) With a hand-operated With a hydraulic hydraulic driver pump PG7 PG9 PG11 PG13 PG16 PG21 PG29 PG36 PG42 PG48 127 152 186 204 225 283 37 47 54 60 ISO12 ISO16 ISO20 ISO25 ISO32 ISO40 ISO50 ISO63 125 165 205 255 325 405 505 635 ISO EN 50262 REQUIREMENTS This international standard specifies the electrical functions and performance of cable entries. It stipulates that only ISO metric threads only are to be used for cable glands since September '99. The use of PG threads will still be allowed for the maintenance of existing equipment despite no longer being covered by any national or international standard. Remember to lubricate the screw pin for optimum operation of the punch 7 CUSTOM SIZE -cs KNOCKOUT PUNCH Please consult us for your specific punch size or shape requirements. 616 F05 catalogue catalogue FACOM F05
