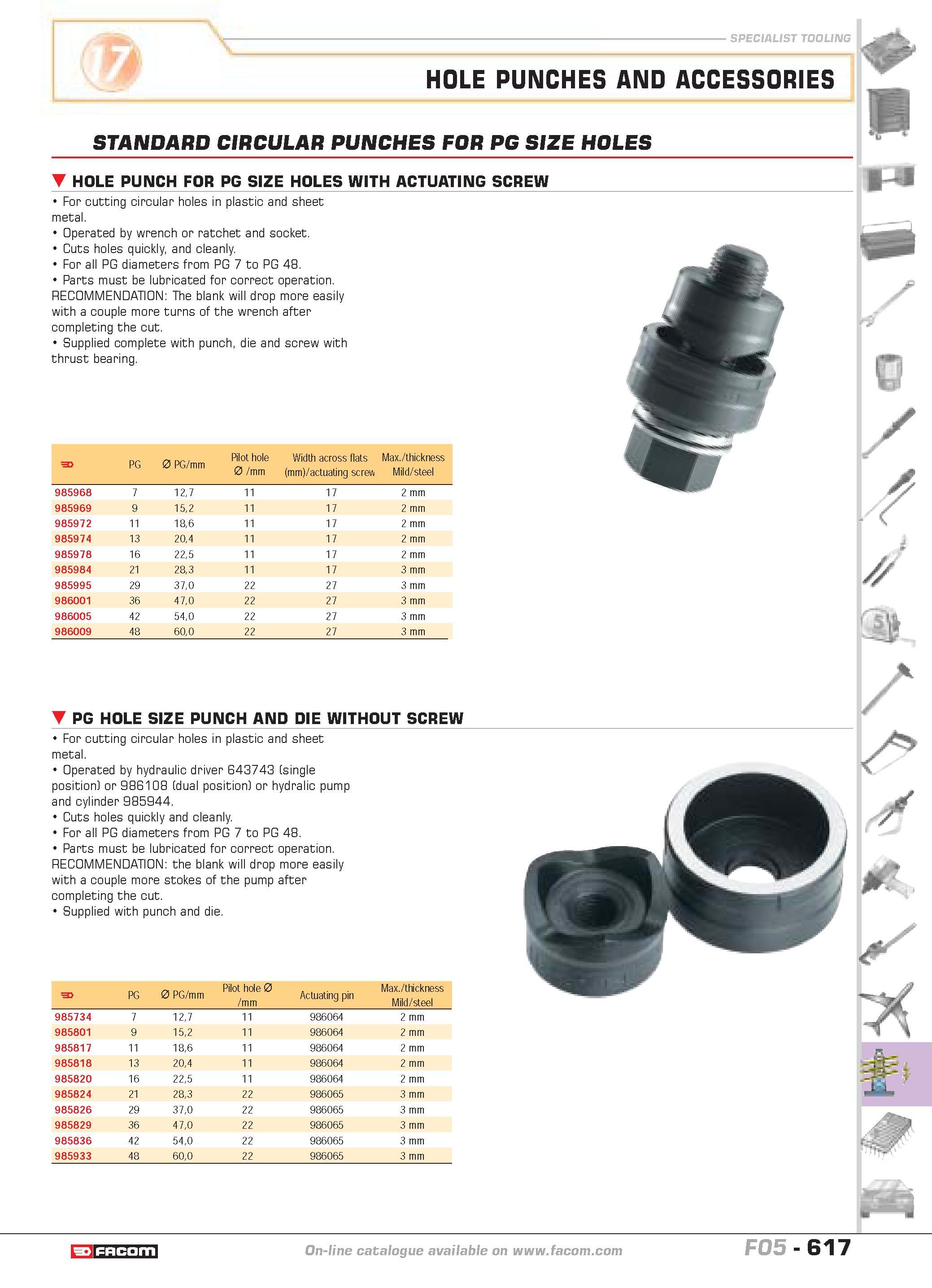

SPECIALIST TOOLING HOLE PUNCHES AND ACCESSORIES STANDARD CIRCULAR PUNCHES FOR PG SIZE HOLES HOLE PUNCH FOR PG SIZE HOLES WITH ACTUATING SCREW For cutting circular holes in plastic and sheet metal. Operated by wrench or ratchet and socket. Cuts holes quickly and cleanly. For all PG diameters from PG 7 to PG 48. Parts must be lubricated for correct operation. RECOMMENDATION The blank will drop more easily with a couple more turns of the wrench after completing the cut. Supplied complete with punch die and screw with thrust bearing. F PG 0 PG mm Pilot hole 0 mm Width across flats mm) actuating screw Max. thickness Mild steel 985968 7 127 11 17 2 mm 985969 9 152 11 17 2 mm 985972 11 186 11 17 2 mm 985974 13 204 11 17 2 mm 985978 16 225 11 17 2 mm 985984 21 283 11 17 3 mm 985995 29 370 22 27 3 mm 986001 36 470 22 27 3 mm 986005 42 540 22 27 3 mm 986009 48 600 22 27 3 mm n PG HOLE SIZE PUNCH AND DIE WITHOUT SCREW For cutting circular holes in plastic and sheet metal. Operated by hydraulic driver 643743 (single position) or 986108 (dual position) or hydralic pump and cylinder 985944. Cuts holes quickly and cleanly. For all PG diameters from PG 7 to PG 48. Parts must be lubricated for correct operation. RECOMMENDATION the blank will drop more easily with a couple more stokes of the pump after completing the cut. Supplied with punch and die. F PG 0 PG mm Pilot hole 0 mm Actuating pin Max. thickness Mild steel 985734 7 127 11 986064 2 mm 985801 9 152 11 986064 2 mm 985817 11 186 11 986064 2 mm 985818 13 204 11 986064 2 mm 985820 16 225 11 986064 2 mm 985824 21 283 22 986065 3 mm 985826 29 370 22 986065 3 mm 985829 36 470 22 986065 3 mm 985836 42 540 22 986065 3 mm 985933 48 600 22 986065 3 mm catalogue FACOM F05- 617
