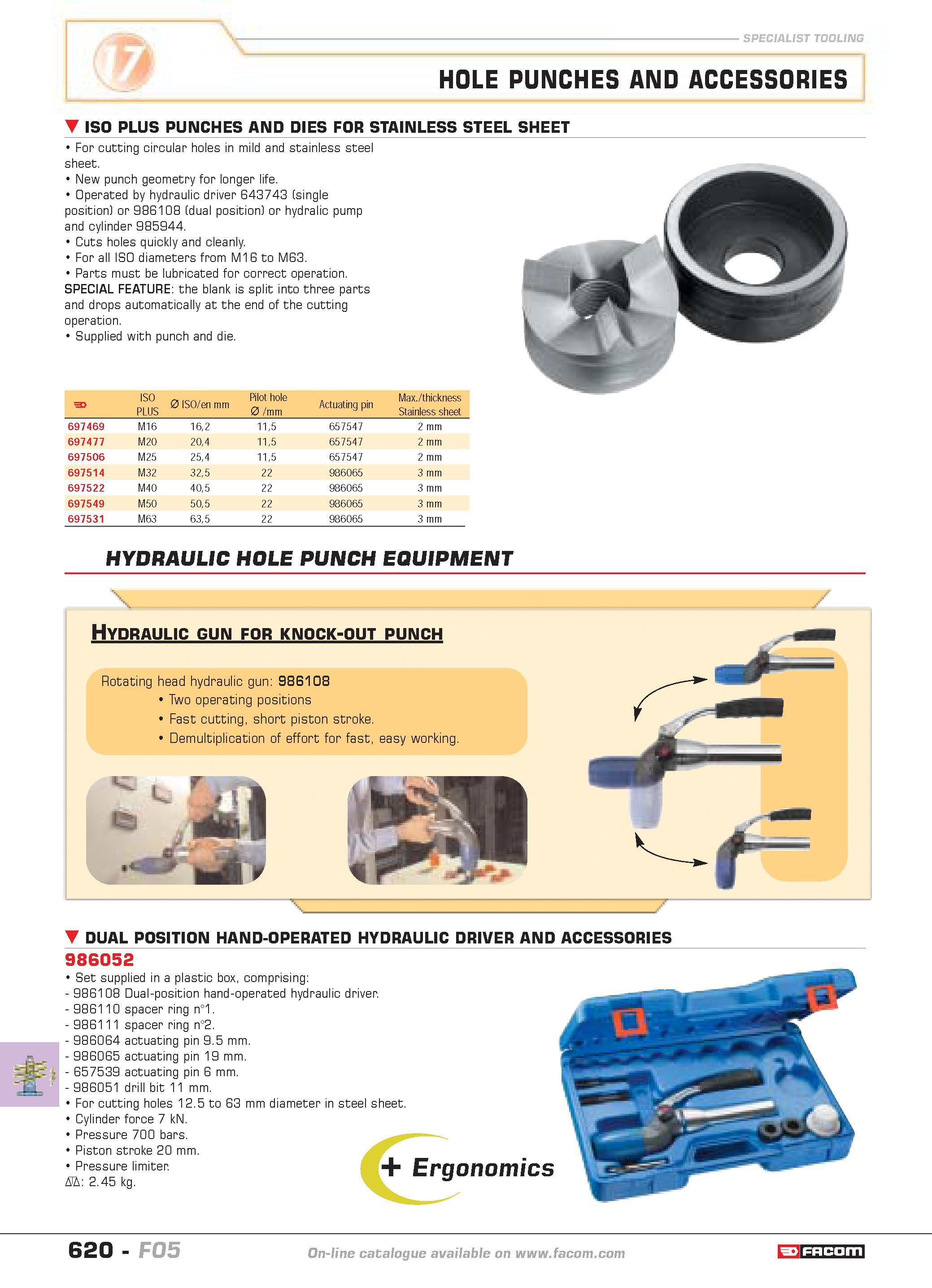

SPECIALIST TOOLING HOLE PUNCHES AND ACCESSORIES ISO PLUS PUNCHES AND DIES FOR STAINLESS STEEL SHEET For cutting circular holes in mild and stainless steel sheet. New punch geometry for longer life. Operated by hydraulic driver 643743 (single position) or 986108 (dual position) or hydralic pump and cylinder 985944. Cuts holes quickly and cleanly. For all ISO diameters from M16 to M63. Parts must be lubricated for correct operation. SPECIAL FEATURE the blank is split into three parts and drops automatically at the end of the cutting operation. Supplied with punch and die. F ISO PLUS 0 ISO en mm Pilot hole 0 mm Actuating pin Max. thickness Stainless sheet 697469 M16 162 115 657547 2 mm 697477 M20 204 115 657547 2 mm 697506 M25 254 115 657547 2 mm 697514 M32 325 22 986065 3 mm 697522 M40 405 22 986065 3 mm 697549 M50 505 22 986065 3 mm 697531 M63 635 22 986065 3 mm HYDRAULIC HOLE PUNCH EQUIPMENT Hydraulic gun for knock-out punch Rotating head hydraulic gun 986108 Two operating positions Fast cutting short piston stroke. Demultiplication of effort for fast easy working. DUAL POSITION HAND-OPERATED HYDRAULIC DRIVER AND ACCESSORIES 986052 Set supplied in a plastic box comprising 986108 Dual-position hand-operated hydraulic driver. 986110 spacer ring n1. 986111 spacer ring n2. 986064 actuating pin 9.5 mm. 986065 actuating pin 19 mm. 657539 actuating pin 6 mm. 986051 drill bit 11 mm. For cutting holes 12.5 to 63 mm diameter in steel sheet. Cylinder force 7 kN. Pressure 700 bars. Piston stroke 20 mm. Pressure limiter D 2.45 kg. Ergonomics 620 F05 catalogue catalogue FACOM F05
