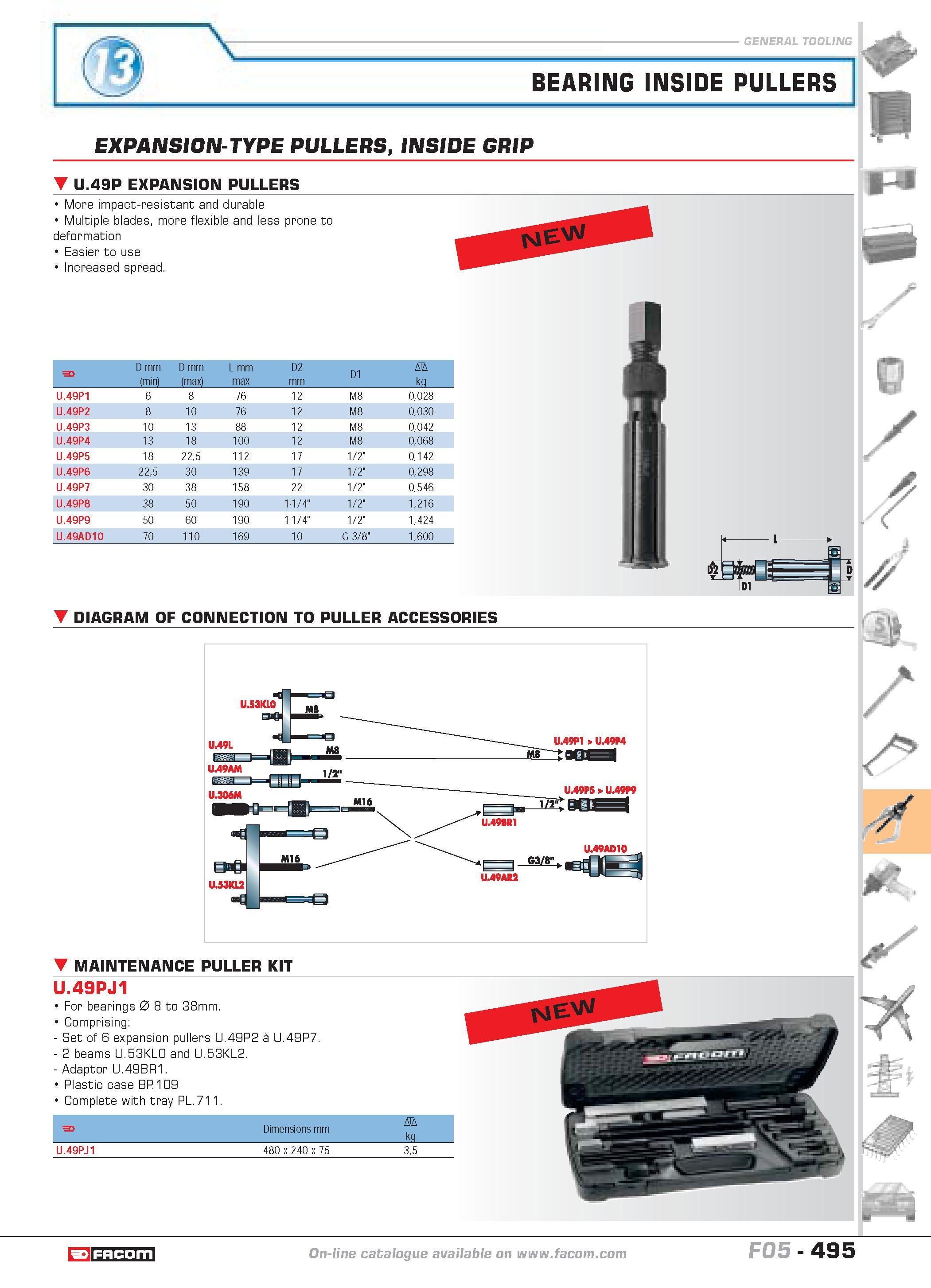

BEARING INSIDE PULLERS m H EXPANSION-TYPE PULLERS INSIDE GRIP U.49P EXPANSION PULLERS More impact-resistant and durable Multiple blades more flexible and less prone to deformation Easier to use Increased spread. F D mm (min) D mm (max) L mm max D2 mm D1 D kq U.49P1 6 8 76 12 M8 0028 U.49P2 8 10 76 12 M8 0030 U.49P3 10 13 88 12 M8 0042 U.49P4 13 18 100 12 M8 0068 U.49P5 18 225 112 17 1 2 0142 U.49P6 225 30 139 17 1 2 0298 U.49P7 30 38 158 22 1 2 0546 U.49P8 38 50 190 1-1 4 1 2 1216 U.49P9 50 60 190 1-1 4 1 2 1424 U.49AD10 70 110 169 10 G 3 8 1600 DIAGRAM OF CONNECTION TO PULLER ACCESSORIES MAINTENANCE PULLER KIT U.49PJ1 For bearings 0 8 to 38mm. Comprising Set of 6 expansion pullers U.49P2 U.49P7. 2 beams U.53KL0 and U.53KL2. Adaptor U.49BR1. Plastic case BP 109 Complete with tray PL.711. D F Dimensions mm kq U.49PJ1 480 x 240 x 75 35 catalogue FACOM F05 495
