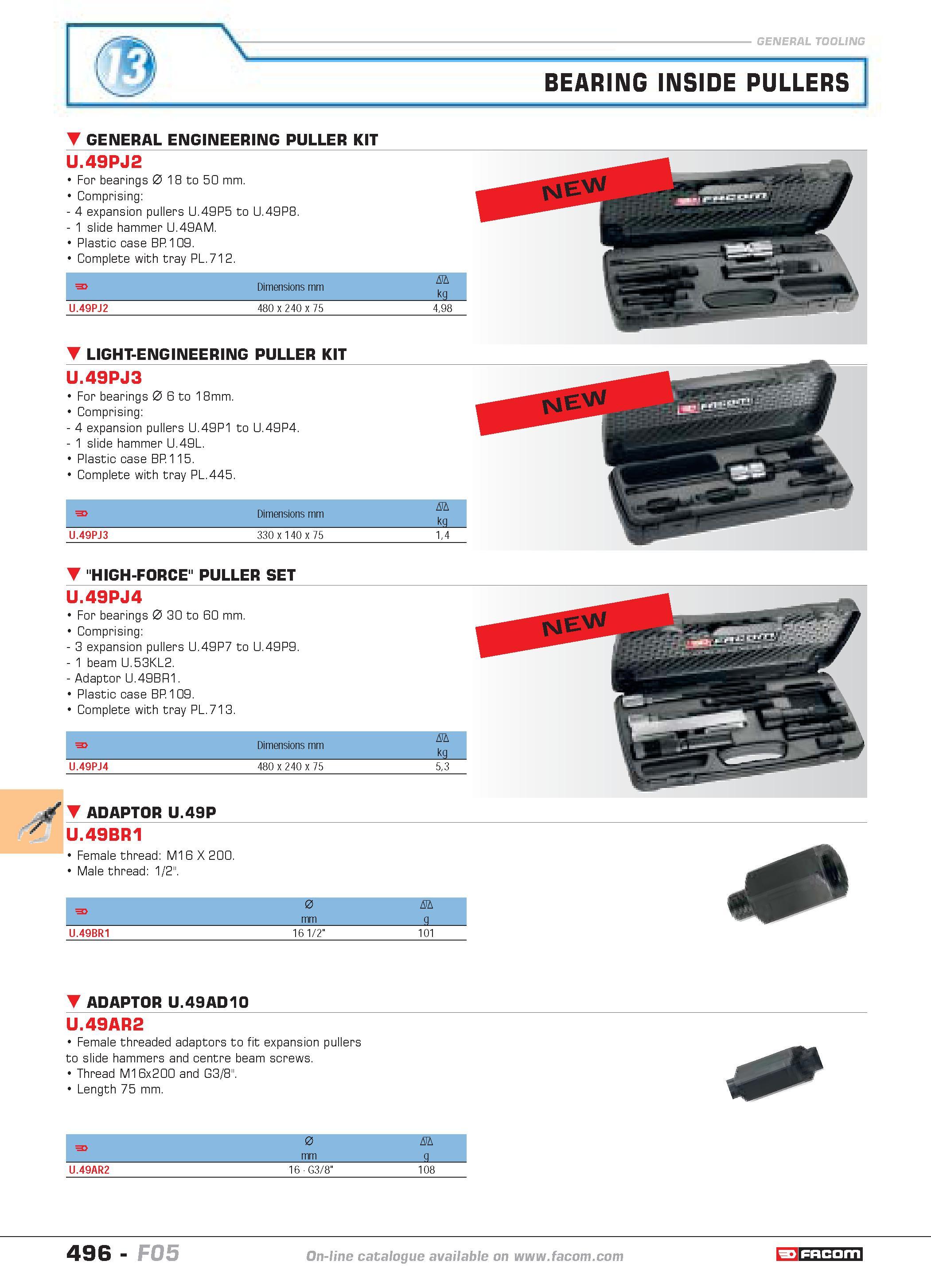

BEARING INSIDE PULLERS GENERAL ENGINEERING PULLER KIT U.49PJ2 For bearings 0 18 to 50 mm. Comprising 4 expansion pullers U.49P5 to U.49P8. 1 slide hammer U.49AM. Plastic case BP. 109. Complete with tray PL.712. D F Dimensions mm kq U.49PJ2 480 x 240 x 75 498 LIGHT-ENGINEERING PULLER KIT U.49PJ3 For bearings 0 6 to 18mm. Comprising 4 expansion pullers U.49P1 to U.49P4. 1 slide hammer U.49L. Plastic case BP. 115. Complete with tray PL.445. D F Dimensions mm kq U.49PJ3 330 x 140 x 75 14 "HIGH-FORCE" PULLER SET U.49PJ4 For bearings 0 30 to 60 mm. Comprising 3 expansion pullers U.49P7 to U.49P9. 1 beam U.53KL2. Adaptor U.49BR1. Plastic case BP. 109. Complete with tray PL.713. D F Dimensions mm kq U.49PJ4 480 x 240 x 75 53 ADAPTOR U.49P U.49BR1 Female thread M16 X 200. Male thread 1 2". F 0 D mm q U.49BR1 161 2" 101 ADAPTOR U.49AD10 U.49AR2 Female threaded adaptors to fit expansion pullers to slide hammers and centre beam screws. Thread M16x200 and G3 8". Length 75 mm. F 0 D mm q U.49AR2 16 G3 8" 108 496 catalogue FACOM F05
