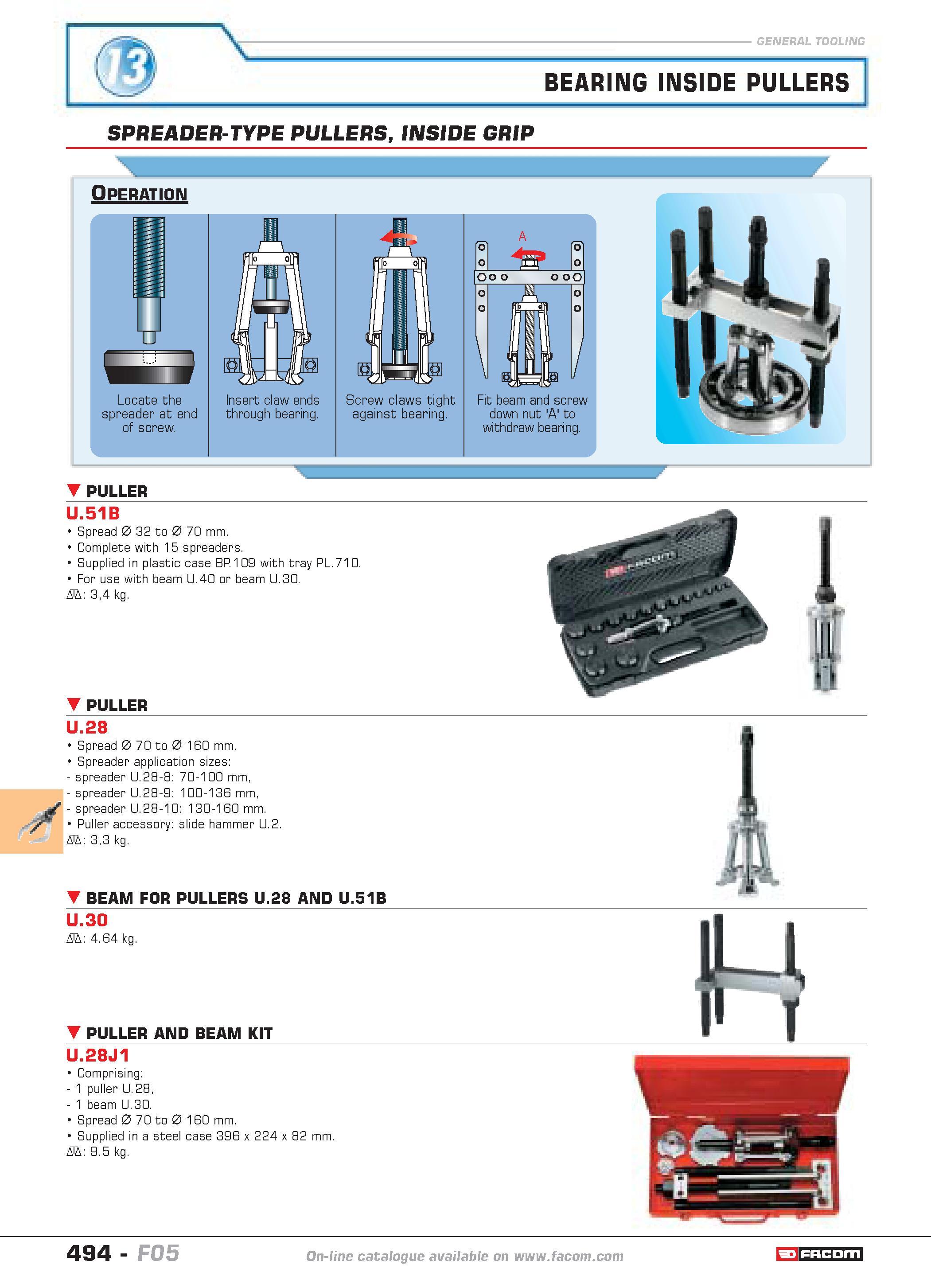

BEARING INSIDE PULLERS SPREADER-TYPE PULLERS INSIDE GRIP Operation Locate the spreader at end of screw. Insert claw ends through bearing. Screw claws tight against bearing. Fit beam and screw down nut "A" to withdraw bearing. PULLER U.51B Spread 0 32 to 0 70 mm. Complete with 15 spreaders. Supplied in plastic case BP.109 with tray PL.710. For use with beam U.40 or beam U.30. D 34 kg. PULLER U.28 Spread 0 70 to 0 160 mm. Spreader application sizes spreader U.28-8 70-100 mm spreader U.28-9 100-136 mm spreader U.28-10 130-160 mm. Puller accessory slide hammer U.2. D 33 kg. BEAM FOR PULLERS U.28 AND U.51B U.30 D 4.64 kg. PULLER AND BEAM KIT U.28J1 Comprising 1 puller U.28 1 beam U.30. Spread 0 70 to 0 160 mm. Supplied in a steel case 396 x 224 x 82 mm. D 9.5 kg. 494 catalogue FACOM F05
