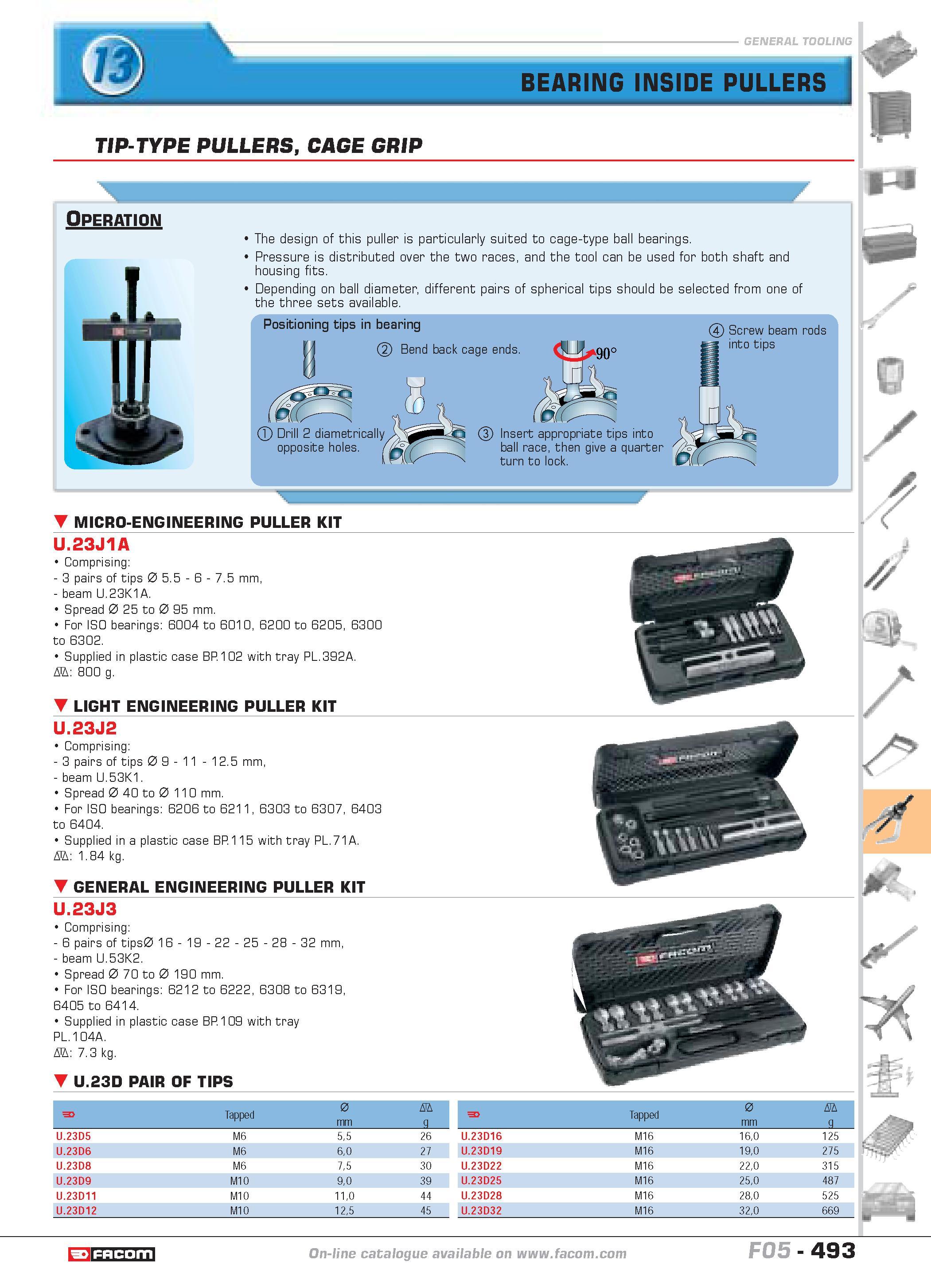

BEARING INSIDE PULLERS TIP-TYPE PULLERS CAGE GRIP r Operation The design of this puller is particularly suited to cage-type ball bearings. Pressure is distributed over the two races and the tool can be used for both shaft and housing fits. Depending on ball diameter different pairs of spherical tips should be selected from one of the three sets available. Positioning tips in bearing Bend back cage ends. Drill 2 diametrically opposite holes. MICRO-ENGINEERING PULLER KIT Insert appropriate tips into ball race then give a quarter turn to lock. r Screw beam rods j into tips U.23J1A Comprising 3 pairs of tips 0 5.5 6 7.5 mm beam U.23K1A. Spread 0 25 to 0 95 mm. For ISO bearings 6004 to 6010 6200 to 6205 6300 to 6302. Supplied in plastic case BP.102 with tray PL.392A. D 800 g. LIGHT ENGINEERING PULLER KIT U.23J2 Comprising 3 pairs of tips 0 9 11 12.5 mm beam U.53K1. Spread 0 40 to 0 110 mm. For ISO bearings 6206 to 6211 6303 to 6307 6403 to 6404. Supplied in a plastic case BP. 115 with tray PL.71A. D 1.84 kg. GENERAL ENGINEERING PULLER KIT U.23J3 Comprising 6 pairs of tips0 16 19 22 25 28 32 mm beam U.53K2. Spread 0 70 to 0 190 mm. For ISO bearings 6212 to 6222 6308 to 6319 6405 to 6414. Supplied in plastic case BP. 109 with tray PL.104A. D 7.3 kg. U.23D PAIR OF TIPS F Tapped 0 mm D q F Tapped 0 mm D q U.23D5 M6 55 26 U.23D16 M16 160 125 U.23D6 M6 60 27 U.23D19 M16 190 275 U.23D8 M6 75 30 U.23D22 M16 220 315 U.23D9 M10 90 39 U.23D25 M16 250 487 U.23D11 M10 110 44 U.23D28 M16 280 525 U.23D12 M10 125 45 U.23D32 M16 320 669 1 catalogue FACOM F05 493
