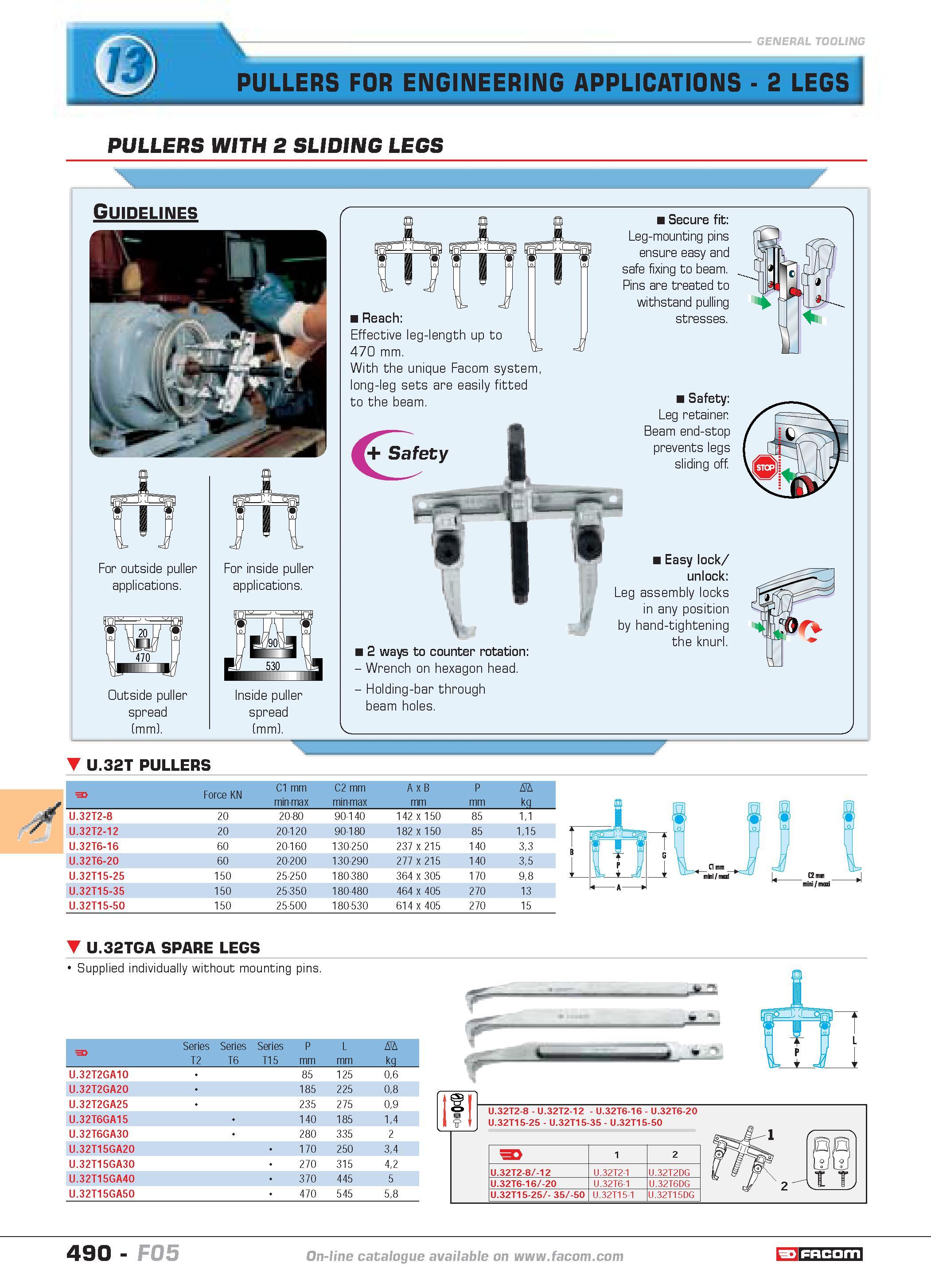

PULLERS FOR ENGINEERING APPLICATIONS 2 LEGS PULLERS WITH 2 SLIDING LEGS ML Guidelines For outside puller applications. Outside puller spread (mm). For inside puller applications. U.32T PULLERS Inside puller spread (mm). Reach Effective leg-length up to 470 mm. With the unique Facom system long-leg sets are easily fitted to the beam. 2 ways to counter rotation Wrench on hexagon head. Holding-bar through beam holes. Secure fit Leg-mounting pins ensure easy and safe fixing to beam. Pins are treated to withstand pulling stresses. Safety Leg retainer Beam end-stop prevents legs sliding off. Easy lock unlock Leg assembly locks in any position by hand-tightening the knurl. F Force KN C1 mm min-max C2 mm min-max A x B mm P mm D kg U.32T2-8 20 20-80 90-140 142 x 150 85 11 U.32T2-12 20 20-120 90-180 182 x 150 85 115 U.32T6-16 60 20-160 130-250 237 x 215 140 33 U.32T6-20 60 20-200 130-290 277 x 215 140 35 U.32T15-25 150 25-250 180-380 364 x 305 170 98 U.32T15-35 150 25-350 180-480 464 x 405 270 13 U.32T15-50 150 25-500 180-530 614x 405 270 15 U.32TGA SPARE LEGS Supplied individually without mounting pins. F Series T2 Series T6 Series T15 P mm L mm D kg U.32T2GA10 85 125 06 U.32T2GA20 185 225 08 U.32T2GA25 235 275 09 U.32T6GA15 140 185 14 U.32T6GA30 280 335 2 U.32T15GA20 170 250 34 U.32T15GA30 270 315 42 U.32T15GA40 370 445 5 U.32T15GA50 470 545 58 U.32T2-8 U.32T2-12 U.32T6-16 U.32T6-20 U.32T15-25 U.32T15-35 U.32T15-50 1 2 U.32T2-8 -12 U.32T2-1 U.32T2DG U.32T6-16 -20 U.32T6-1 U.32T6DG U.32T15-25 35 -50 U.32T15-1 U.32T15DG 490 catalogue FACOM F05
