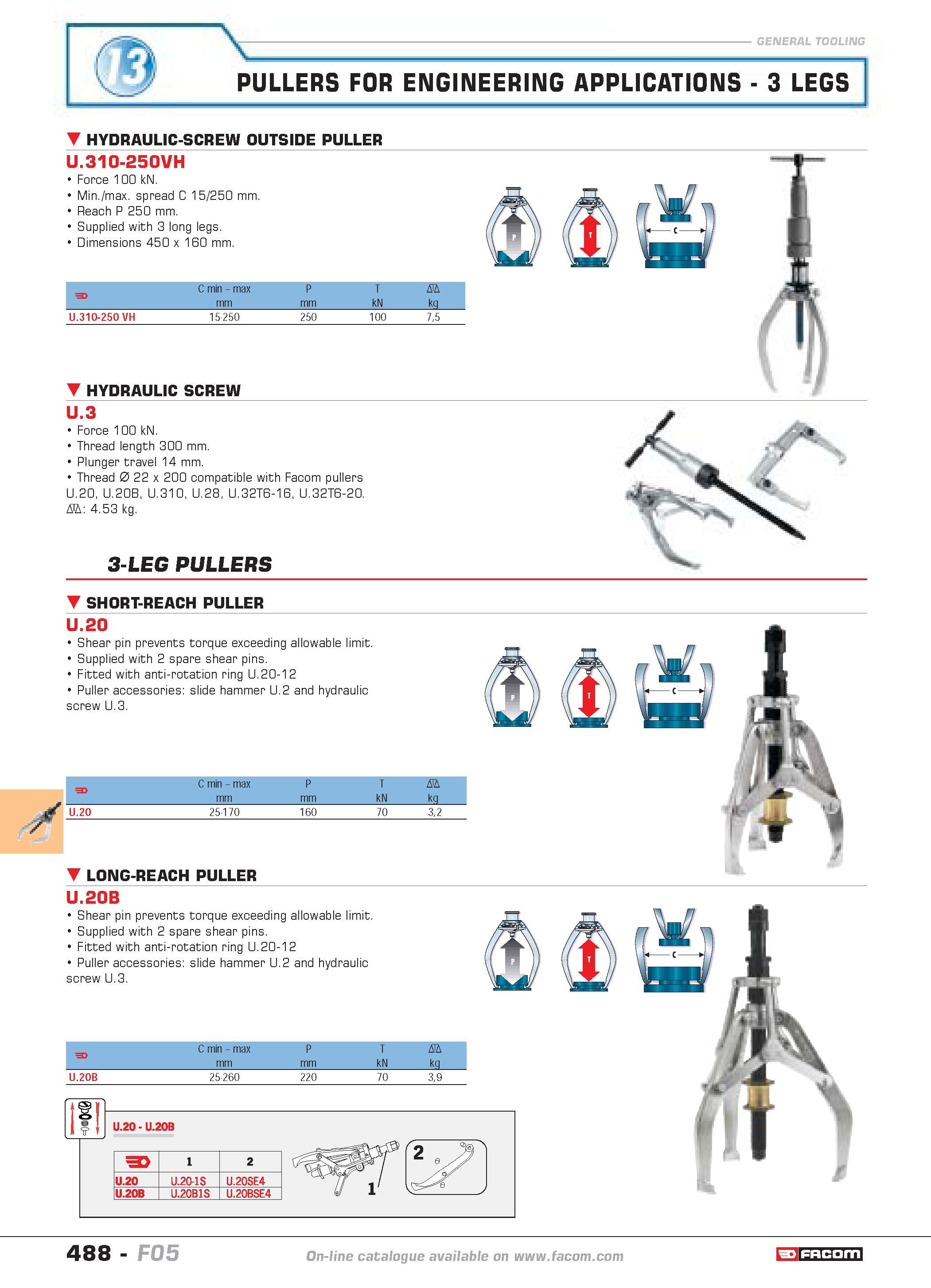

PULLERS FOR ENGINEERING APPLICATIONS 3 LEGS HYDRAULIC-SCREW OUTSIDE PULLER U.310-250VH Force 100 kN. Min. max. spread C 15 250 mm. Reach P 250 mm. Supplied with 3 long legs. Dimensions 450 x 160 mm. F C min max P T D mm kN kq U.310-250 VH 15-250 250 100 75 HYDRAULIC SCREW U.3 Force 100 kN. Thread length 300 mm. Plunger travel 14 mm. Thread 0 22 x 200 compatible with Facom pullers U.20 U.20B U.310 U.28 U.32T6-16 U.32T6-20. D 4.53 kg. 3-LEG PULLERS SHORT-REACH PULLER U.20 Shear pin prevents torque exceeding allowable limit. Supplied with 2 spare shear pins. Fitted with anti-rotation ring U.20-12 Puller accessories slide hammer U.2 and hydraulic screw U.3. F C min max P T D mm kN kq U.20 25-170 160 70 32 LONG-REACH PULLER U.20B Shear pin prevents torque exceeding allowable limit. Supplied with 2 spare shear pins. Fitted with anti-rotation ring U.20-12 Puller accessories slide hammer U.2 and hydraulic screw U.3. F C min max P T D mm kN kq U.20B 25-260 220 70 39 U.20 U.20B 3 1 2 U.20 U.20-1S U.20SE4 U.20B U.20B1S U.20BSE4 488 catalogue FACOM F05
