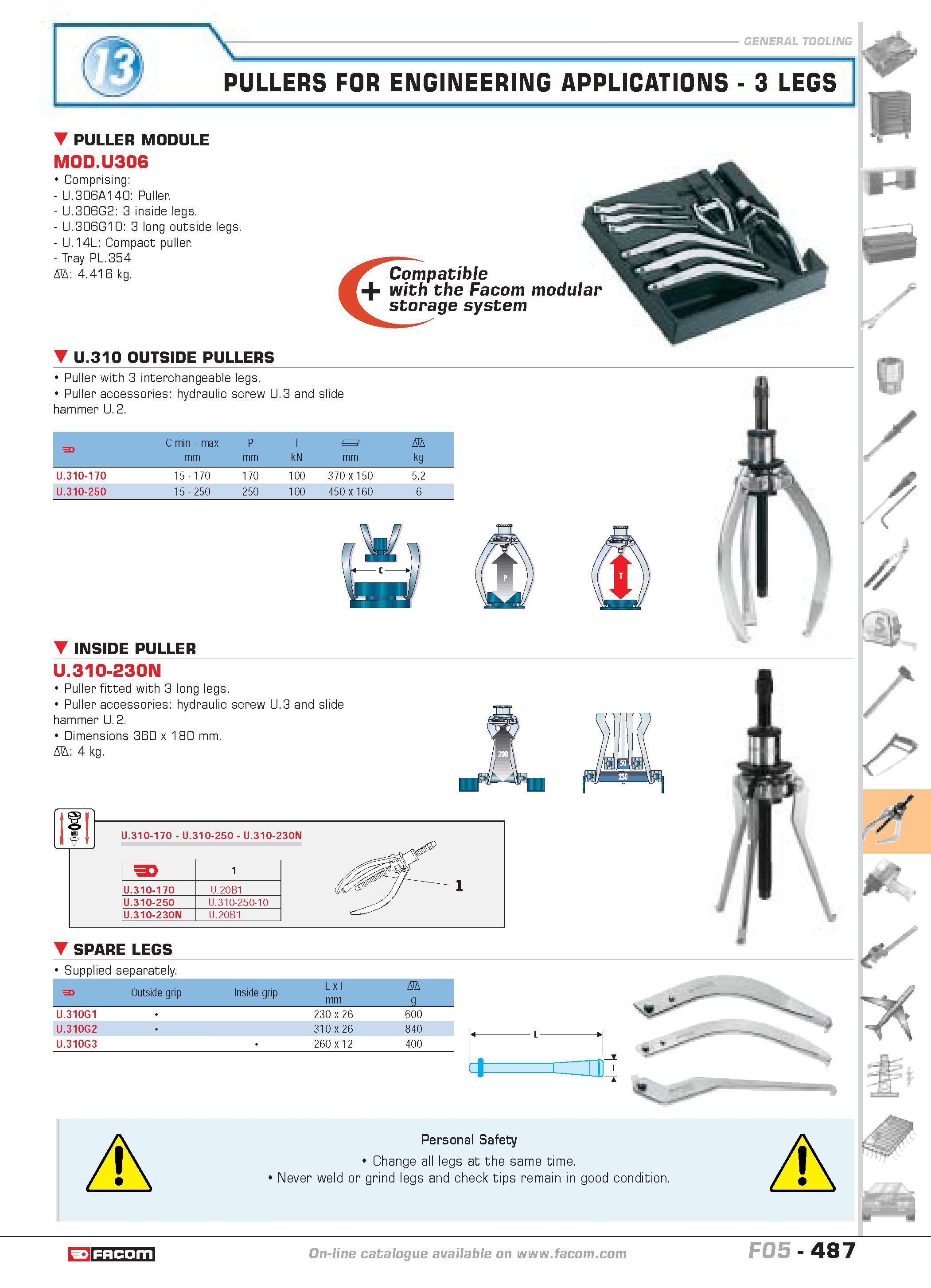

PULLERS FOR ENGINEERING APPLICATIONS 3 LEGS PULLER MODULE MOD.U306 Comprising U.306A140 Puller. U.306G2 3 inside legs. U.306G10 3 long outside legs. U.14L Compact puller. Tray PL.354 D 4.416 kg. U.310 OUTSIDE PULLERS Compatible with the Facom modular storage system Puller with 3 interchangeable legs. Puller accessories hydraulic screw U.3 and slide hammer U.2. F C min max P T 3 D mm kN mm kq U.310-170 15 170 170 100 370 x 150 52 U.310-250 15 250 250 100 450 x 160 6 & INSIDE PULLER U.310-230N Puller fitted with 3 long legs. Puller accessories hydraulic screw U.3 and slide hammer U.2. Dimensions 360 x 180 mm. D 4 kg. U.310-170 U.310-250 U.310-230N 3 1 U.310-170 U.20B1 U.310-250 U.310-250-10 U.310-230N U.20B1 SPARE LEGS F Outside grip Inside grip L x I mm D q U.310G1 230 26 600 U.310G2 310 26 840 U.310G3 260 12 400 catalogue FACOM F05 487
