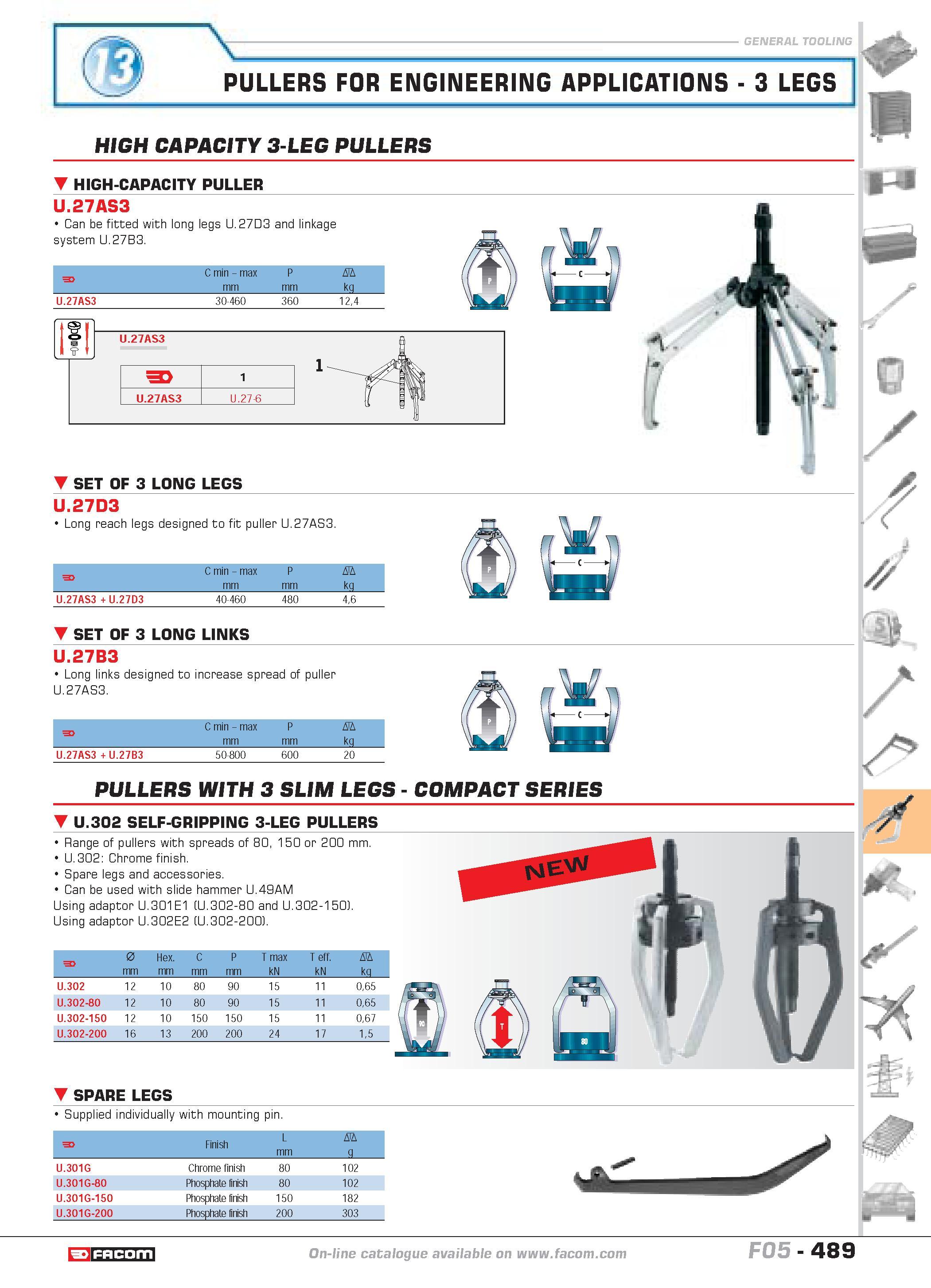

PULLERS FOR ENGINEERING APPLICATIONS 3 LEGS ojjp- P H HIGH CAPACITY 3-LEG PULLERS HIGH-CAPACITY PULLER U.27AS3 Can be fitted with long legs U.27D3 and linkage system U.27B3. F C min max P D mm kg U.27AS3 30-460 360 124 3 1 U.27AS3 U.27-6 SET OF 3 LONG LEGS U.27D3 Long reach legs designed to fit puller U.27AS3. F C min max P D mm kg U.27AS3 U.27D3 40-460 480 46 SET OF 3 LONG LINKS U.27B3 Long links designed to increase spread of puller U.27AS3. F C min max P D mm kg U.27AS3 U.27B3 50-800 600 20 F 0 mm Hex. mm C mm P mm T max kN T eff. kN D kg U.302 12 10 80 90 15 11 065 U.302-80 12 10 80 90 15 11 065 U.302-150 12 10 150 150 15 11 067 U.302-200 16 13 200 200 24 17 15 SPARE LEGS PULLERS WITH 3 SLIM LEGS COMPACT SERIES U.302 SELF-GRIPPING 3-LEG PULLERS Range of pullers with spreads of 80 150 or 200 mm. U.302 Chrome finish. Spare legs and accessories. Can be used with slide hammer U.49AM Using adaptor U.301E1 (U.302-80 and U.302-150). Using adaptor U.302E2 (U.302-200). Supplied individually with mounting pin. F Finish L mm D g U.301G Chrome finish 80 102 U.301G-80 Phosphate finish 80 102 U.301G-150 Phosphate finish 150 182 U.301G-200 Phosphate finish 200 303 catalogue FACOM F05 489
