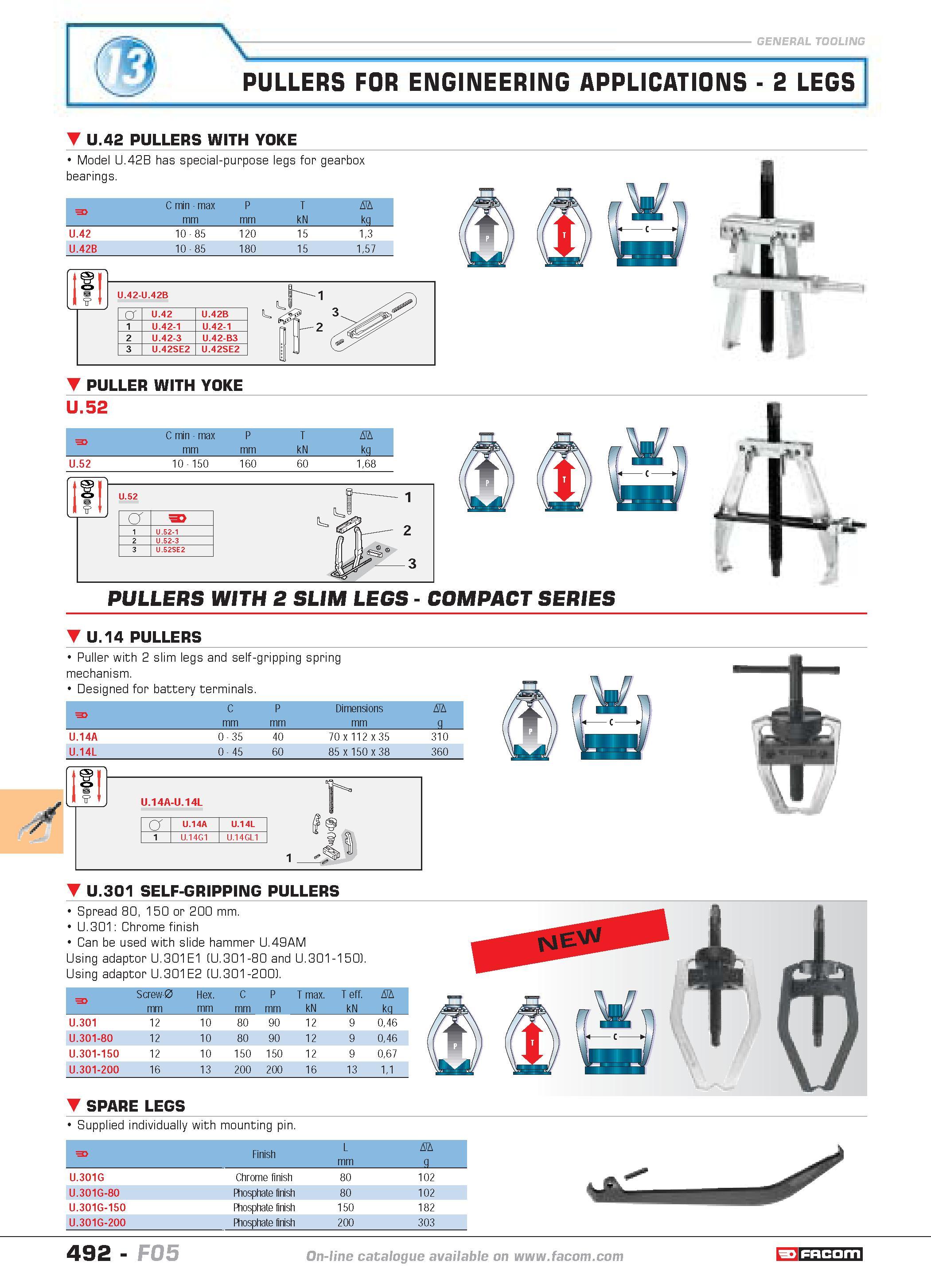

PULLERS FOR ENGINEERING APPLICATIONS 2 LEGS U.42 PULLERS WITH YOKE Model U.42B has special-purpose legs for gearbox bearings. F C min max P T D mm kN kg U.42 10 85 120 15 13 U.42B 10 85 180 15 157 rr U.42 U.42B 1 U.42-1 U.42-1 2 U.42-3 U.42-B3 3 U.42SE2 U.42SE2 1 1 2 3 PULLER WITH YOKE U.52 C min max P T D mm kN kg U.52 10 150 160 60 168 U.52-1 U.52-3 U.52SE2 PULLERS WITH 2 SLIM LEGS COMPACT SERIES U.14 PULLERS Puller with 2 slim legs and self-gripping spring mechanism. Designed for battery terminals. F C P Dimensions D mm g U.14A 0 35 40 70 x 112 x 35 310 U.14L 0 45 60 85 x 150 x 38 360 U.14A-U.14L a U.14A U.14L 1 U.14G1 U.14GL1 U.301 SELF-GRIPPING PULLERS Spread 80 150 or 200 mm. U.301 Chrome finish Can be used with slide hammer U.49AM Using adaptor U.301E1 (U.301-80 and U.301-150). Using adaptor U.301E2 (U.301-200). F Screw-0 Hex. C P T max. T eff. Nh mm kN kN kq U.301 12 10 80 90 12 9 046 U.301-80 12 10 80 90 12 9 046 U.301-150 12 10 150 150 12 9 067 U.301-200 16 13 200 200 16 13 11 SPARE LEGS Supplied individually with mounting pin. L mm D g U.301G Chrome finish 80 102 U.301G-80 Phosphate finish 80 102 U.301G-150 Phosphate finish 150 182 U.301G-200 Phosphate finish 200 303 Finish F 492 catalogue FACOM F05
