495 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.498

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 498 0495 ENG Lab2u

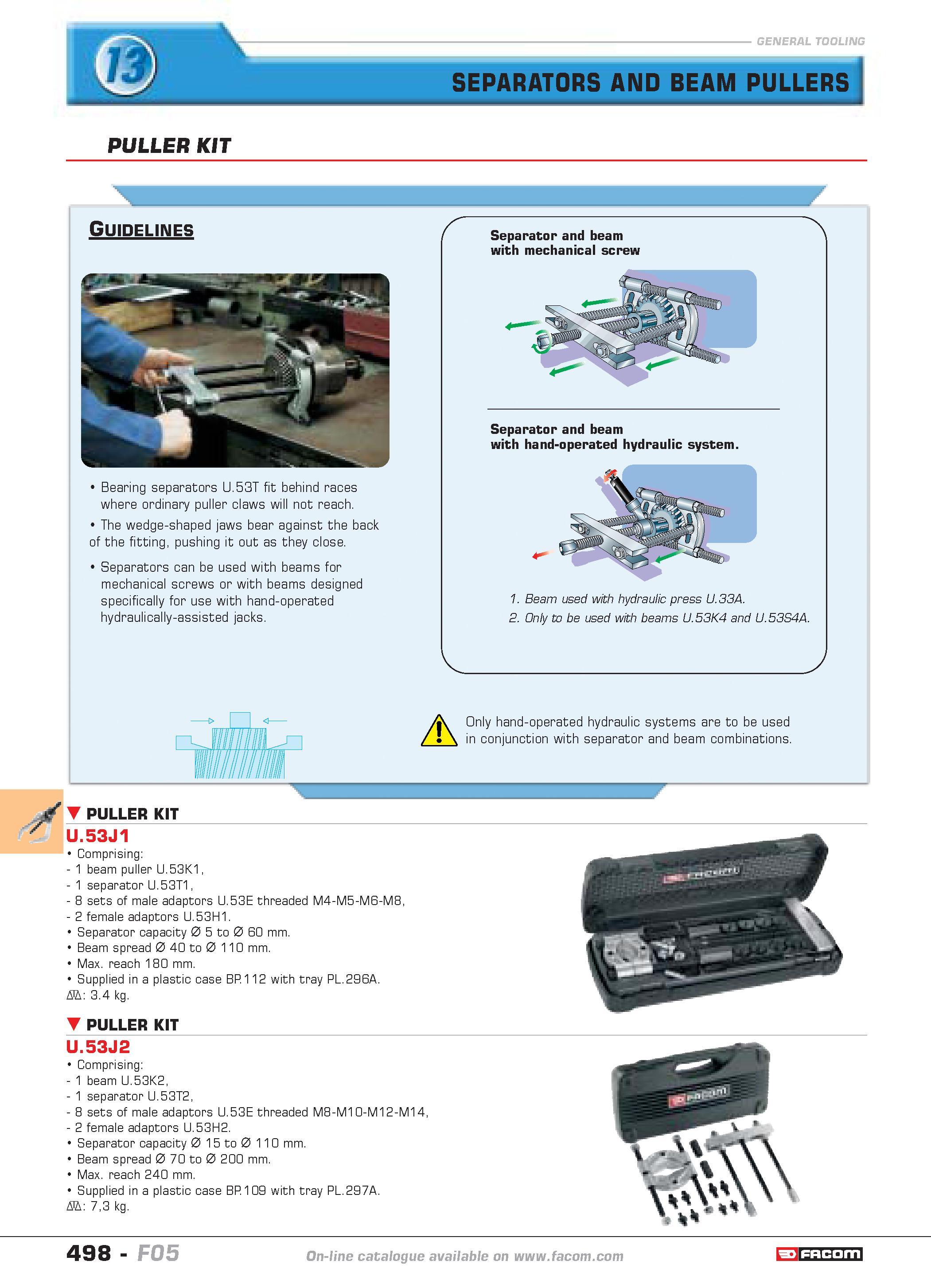

SEPARATORS AND BEAM PULLERS PULLER KIT w Guidelines Bearing separators U.53T fit behind races where ordinary puller claws will not reach. The wedge-shaped jaws bear against the back of the fitting pushing it out as they close. Separators can be used with beams for mechanical screws or with beams designed specifically for use with hand-operated hydraulically-assisted jacks. A Only hand-operated hydraulic systems are to be used in conjunction with separator and beam combinations. w PULLER KIT U.53J1 Comprising 1 beam puller U.53K1 1 separator U.53T1 8 sets of male adaptors U.53E threaded M4-M5-M6-M8 2 female adaptors U.53H1. Separator capacity 0 5 to 0 60 mm. Beam spread 0 40 to 0 110 mm. Max. reach 180 mm. Supplied in a plastic case BP112 with tray PL.296A. D 3.4 kg. PULLER KIT U.53J2 Comprising 1 beam U.53K2 1 separator U.53T2 8 sets of male adaptors U.53E threaded M8-M10-M12-M14 2 female adaptors U.53H2. Separator capacity 0 15 to 0 110 mm. Beam spread 0 70 to 0 200 mm. Max. reach 240 mm. Supplied in a plastic case BP109 with tray PL.297A. D 73 kg. 498 catalogue FACOM F05
