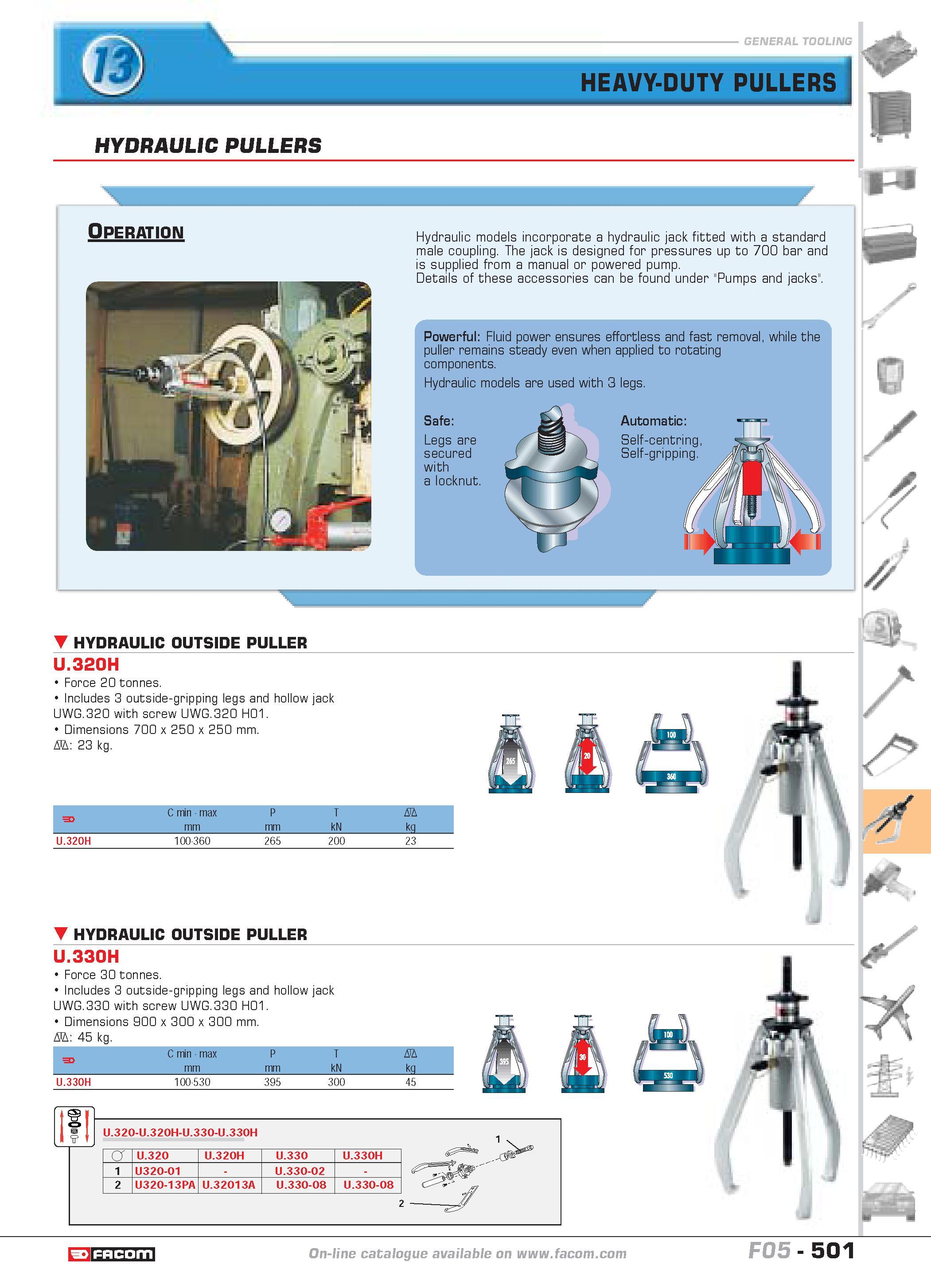

HEAVY-DUTY PULLERS HYDRAULIC PULLERS Operation Hydraulic models incorporate a hydraulic jack fitted with a standard male coupling. The jack is designed for pressures up to 700 bar and is supplied from a manual or powered pump. Details of these accessories can be found under "Pumps and jacks". Powerful Fluid power ensures effortless and fast removal while the puller remains steady even when applied to rotating components. Hydraulic models are used with 3 legs. Safe Legs are secured with a locknut. Automatic Self-centring Self-gripping. HYDRAULIC OUTSIDE PULLER 1 Vii U.320H Force 20 tonnes. Includes 3 outside-gripping legs and hollow jack UWG.320 with screw UWG.320 H01. Dimensions 700 x 250 x 250 mm. D 23 kg. F C min max P T D mm kN kq U.320H 100-360 265 200 23 HYDRAULIC OUTSIDE PULLER U.330H Force 30 tonnes. Includes 3 outside-gripping legs and hollow jack UWG.330 with screw UWG.330 H01. Dimensions 900 x 300 x 300 mm. D 45 kg. F C min max P T D mm kN kq U.330H 100-530 395 300 45 U.320-U.320H-U.330-U.330H a U.320 U.320H U.330 U.330H 1 U320-01 U.330-02 2 U320-13PA U.32013A U.330-08 U.330-08 2 catalogue FACOM F05 501
