499 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.502

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 502 0499 ENG Lab2u

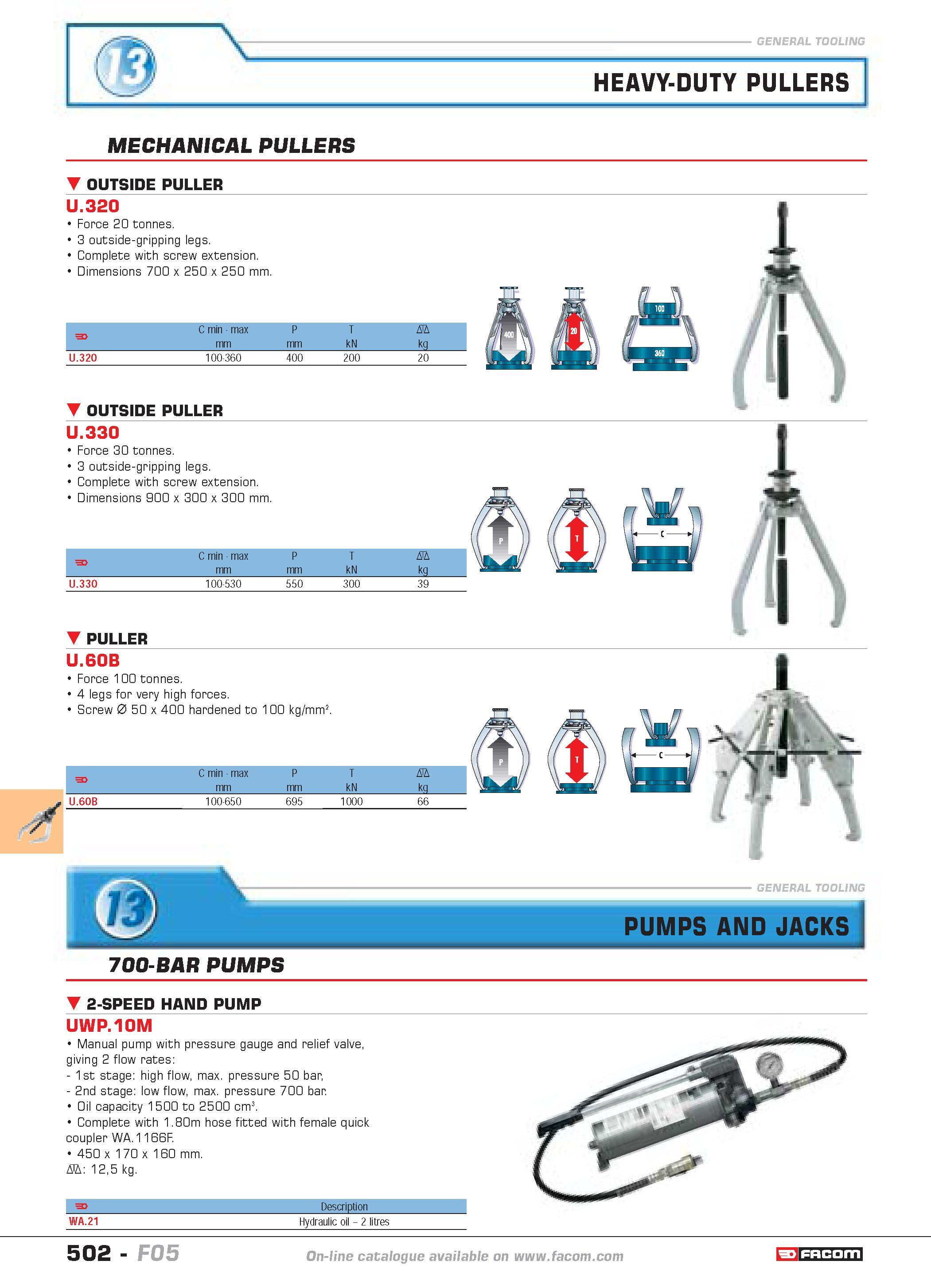

HEAVY-DUTY PULLERS MECHANICAL PULLERS OUTSIDE PULLER U.320 Force 20 tonnes. 3 outside-gripping legs. Complete with screw extension. Dimensions 700 x 250 x 250 mm. F C min max P T mm kN kg U.320 100-360 400 200 20 OUTSIDE PULLER U.330 Force 30 tonnes. 3 outside-gripping legs. Complete with screw extension. Dimensions 900 x 300 x 300 mm. F C min max P T Nh mm kN kg U.330 100-530 550 300 39 PULLER U.60B Force 100 tonnes. 4 legs for very high forces. Screw 0 50 x 400 hardened to 100 kg mm2. F C min max mm P mm T kN Nh kq U.60B 100-650 695 1000 66 700-BAR PUMPS PUMPS AND JACKS 2-SPEED HAND PUMP UWP.10M Manual pump with pressure gauge and relief valve giving 2 flow rates 1st stage high flow max. pressure 50 bar 2nd stage low flow max. pressure 700 bar Oil capacity 1500 to 2500 cm3. Complete with 1.80m hose fitted with female quick coupler WA.1166F. 450 x 170 x 160 mm. D 125 kg. F Description WA.21 Hydraulic oil 2 litres 502 catalogue FACOM F05
